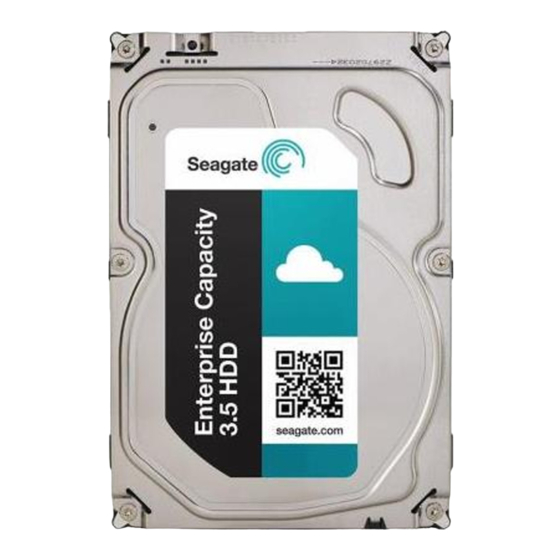

Enterprise Capacity
Standard 4KN models
ST6000NM0004
ST4000NM0004
ST2000NM0004
Self-Encryption 4KN models
ST6000NM0064
ST4000NM0064
ST2000NM0064
SED (FIPS 140-2) 4KN model
(Review Pending)
ST6000NM0094
3.5 HDD
v4 SATA Product Manual
100740544, Rev. J
January 2018
Standard 5xxE models
ST6000NM0024
ST6000NM0124
ST5000NM0084
ST5000NM0124
ST4000NM0024
ST4000NM0124
ST2000NM0024
Self-Encryption 5xxE models
ST6000NM0044
ST4000NM0044
ST2000NM0044
SED (FIPS 140-2) 5xxE model
ST6000NM0084
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seagate ST6000NM0124
Summary of Contents for Seagate ST6000NM0124
- Page 1 Enterprise Capacity 3.5 HDD v4 SATA Product Manual Standard 4KN models Standard 5xxE models ST6000NM0004 ST6000NM0024 ST4000NM0004 ST6000NM0124 ST2000NM0004 ST5000NM0084 ST5000NM0124 ST4000NM0024 Self-Encryption 4KN models ST4000NM0124 ST6000NM0064 ST2000NM0024 ST4000NM0064 ST2000NM0064 Self-Encryption 5xxE models ST6000NM0044 ST4000NM0044 SED (FIPS 140-2) 4KN model...
- Page 2 Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. PowerChoice and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 S.M.A.R.T. commands............. . 41 Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
-
Page 5: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 6: Introduction
Seagate recommends validating the configuration with the selected HBA/RAID Note controller manufacturer to ensure use of full capacity is supported. For more information on FIPS 140-2 Level 2 certification see See Section 4.0 on page 29. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 7: About The Serial Ata Interface
Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. The specification can be downloaded from www.serialata.org. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 8: Drive Specifications
5V +10/-5% Voltage tolerance (including noise) 12V ±10% 5° to 60°C (operating/tested) Ambient temperature –40° to 70°C (nonoperating) Temperature gradient 20°C (operating) (°C per hour max) 30°C (nonoperating) Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... - Page 9 *One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. **During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
-
Page 10: Formatted Capacity
I/O data-transfer rate (MB/s max) 600 (Ultra DMA mode 5) Start/stop times Power-on to Ready (sec) (typ/max) 23/30 Standby to Ready (sec) (typ/max) 23/30 Ready to spindle stop (sec) (max) Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 11: Power Specifications
Maximum DC (peak) 0.60 1.06 15.72 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... - Page 12 Maximum DC (peak) 0.72 1.22 18.24 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
- Page 13 Maximum DC (peak) 0.61 0.74 11.93 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
- Page 14 Figure 1. 5TB & 6TB models - Typical 5V startup and operation current profile Figure 2. 5TB & 6TB models - Typical 12V startup and operation current profile Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
- Page 15 2.5.1.2 Typical current profiles Figure 3. 4TB Typical 5V startup and operation current profile Figure 4. 4TB Typical 12V startup and operation current profile Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
- Page 16 2.5.1.3 Typical current profiles Figure 5. 2TB Typical 5V startup and operation current profile Figure 6. 2TB Typical 12V startup and operation current profile Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
-
Page 17: Conducted Noise
• Reports the current power state of the drive Identify Device Command • EPC Feature set supported flag • EPC Feature enabled flag is set if at least one Idle power condition timer is enabled Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... - Page 18 PowerChoice Supported Extended Power Condition Identifiers Power Condition Identifiers Power Condition Name Standby_z 01 - 80 Reserved Idle_a Idle_b Idle_c 84 - FE Reserved All EPC Power Conditions Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
-
Page 19: Environmental Limits
Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. HDA Temp. -
Page 20: Shock
The maximum nonoperating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below. 10–500 Hz 5.0 Grms ref Linear Random Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 21: Acoustics
Test for Prominent Discrete Tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 22: Reliability
Seagate drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with all relevant regulatory requirements and standards for the drives, Seagate cannot guarantee that all system-level products into which the drives are installed comply with all regulatory requirements and standards applicable to the system-level products. The drive is designed for operation inside a properly designed system (e.g., enclosure designed for the drive), with properly shielded I/O cable (if... -
Page 23: Canada Ices-003
2.12.5 Morocco Commodity Mark To satisfy our OEM customers, Seagate has added the Moroccan Commodity Mark to the drives provided to the OEM for the sale of Customer Kits produced by our OEM customers that are intended to be incorporated into the OEM's finished system-level product by an end user. -
Page 24: Environmental Protection
2.13.1.1 Restriction of Hazardous Substances in Electrical and Electronic Equipment Seagate drives are designed to be compliant with the European Union RoHS "Recast" Directive 2011/65/EU (RoHS 2) as amended by Directive (EU) 2015/863. The RoHS2 restricts the use of certain hazardous substances such as Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ether (PBDE), BisBis(2-Ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (BBP), Dibutyl phthalate (DBP), and Diisobutyl phthalate (DIBP) in electrical and electronic equipment (EEE). -
Page 25: China Requirements -China Rohs 2
Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. To comply with China RoHS 2, Seagate determines this product's Environmental Protection Use Period (EPUP) to be 20 years in accordance with the Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products, SJT 11364-2014. -
Page 26: Corrosive Environment
Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. -
Page 27: Configuring And Mounting The Drive
• Do not overtighten the mounting screws (maximum torque: 6 in-lb). • Do not cover breather hole on top cover. Figure 9. Breather hole location - top cover Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 28: Mechanical Specifications
SFF-8301 and SFF-8323, found at www.sffcommittee.org Figure 10. Mounting configuration dimensions (2TB & 4TB) The image is for mechanical dimension reference only and may not represent the actual drive. Note Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... - Page 29 Figure 11. Mounting configuration dimensions (5TB & 6TB models) The image is for mechanical dimension reference only and may not represent the actual drive. Note Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
-
Page 30: About Fips
Figure 12. Example of FIPS tamper evidence labels. Image is for reference only, may not represent actual drive Note Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 31: About Self-Encrypting Drives
The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate’s SED models comply with the standards published by the TCG. To use the security features in the drive, the host must be capable of constructing and issuing the following two ATA commands: •... -
Page 32: Random Number Generator (Rng)
In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center. Three conditions must be met before the drive will allow the download operation: The download must be an SED file. -
Page 33: Power Requirements
The drive shall not support the OVERWRITE EXT and BLOCK ERASE EXT sub-commands. Support of the SANITIZE FREEZE LOCK EXT command shall be determined on a customer-specific basis. OEM drives shall support the command. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 34: Serial Ata (Sata) Interface
There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane configuration. All used voltage pins (V ) must be terminated. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 35: Supported Ata Commands
Sanitize Device - Freeze Lock Ext / 0020 Sanitize Device - Status Ext / 0000 Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Security Unlock Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... - Page 36 Write FPDMA Queued Write Log DMA Ext Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
-
Page 37: Identify Device Command
Number of current logical sectors per logical track xxxx 57–58 Current capacity in sectors xxxx Number of sectors transferred during a Read Multiple or Write Multiple command xxxx Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... - Page 38 Ultra DMA support and current mode (see note following this table) 007F Security erase time xxxx Enhanced security erase time xxxx Master password revision code FFFE Hardware reset value xxxx 95–99 ATA-reserved 0000 Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
- Page 39 Bits 7:2 indicate individual SCT feature support. 207-254 ATA-reserved 0000 Integrity word xxA5 See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
- Page 40 Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J...
-
Page 41: Set Features Command
Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... -
Page 42: Commands
S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate Enterprise Capacity 3.5 HDD v4 Serial ATA Product Manual, Rev. J... - Page 43 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100740544, Rev. J...
