V130-33-R6 Installation Guide

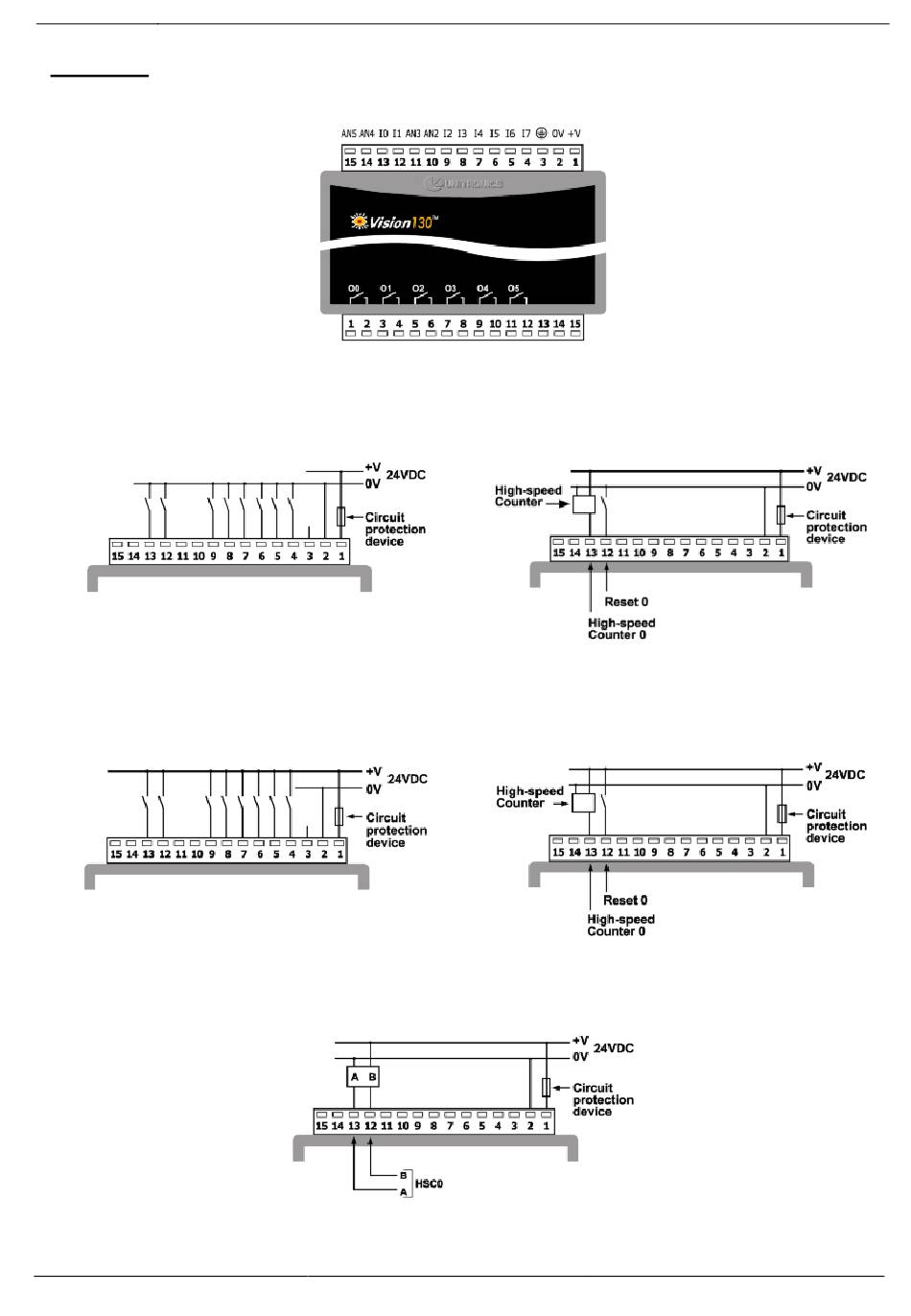

I/O Wiring
i4 Automation Ltd - 01480 395256
I/O Configuration
npn Input Wiring
Input wiring npn (sink)
HSC input wiring, npn (sink)
pnp Input Wiring
Input wiring pnp (source)
HSC input wiring, pnp (source)
Shaft-encoder
6
