8.

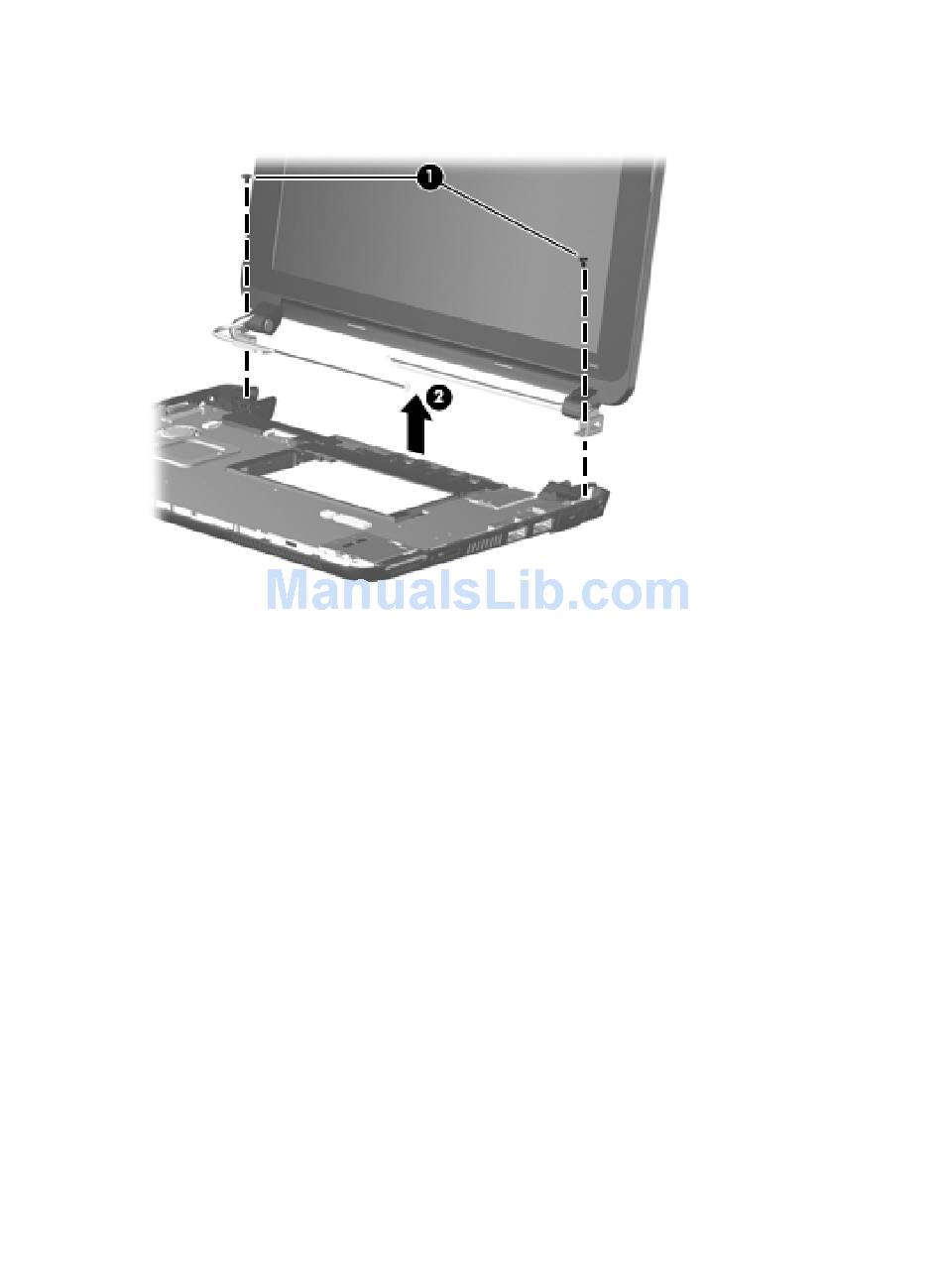

Remove the two Phillips PM2.0×4.0 screws (1) that secure the display assembly to the base
enclosure.
9.
Remove the display assembly (2).
Reverse this procedure to reassemble and install the display assembly.
60
Chapter 4 Removal and replacement procedures
