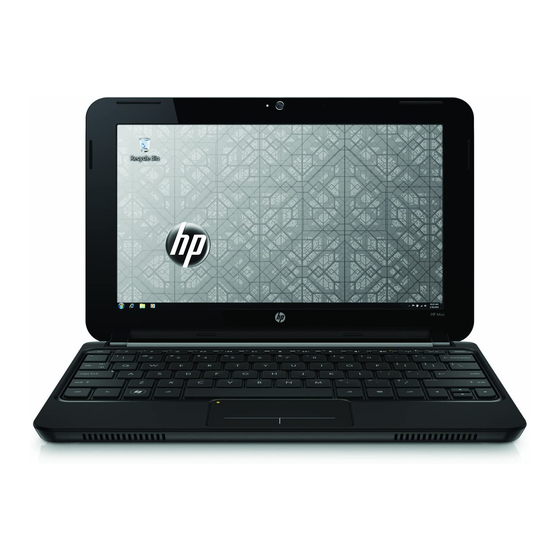

HP Mini 210-1010 Maintenance And Service Manual

Hp mini 210-1010: reference guide.
Hide thumbs
HP Mini 2102, HP Mini 210, and
Compaq Mini 210
Maintenance and Service Guide

Advertising

   Also See for HP Mini 210-1010

   Related Manuals for HP Mini 210-1010

   Summary of Contents for HP Mini 210-1010

  • Page 1

    HP Mini 2102, HP Mini 210, and Compaq Mini 210 Maintenance and Service Guide...

  • Page 2

    Microsoft Corporation. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

  • Page 3

    Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.

  • Page 4

    Safety warning notice...

  • Page 5: Table Of Contents

    Table of contents 1 Product description ... 1 2 External component identification ... 5 Identifying the hardware ... 5 Top components ... 6 TouchPad ... 6 Lights ... 7 Keys ... 8 Front components ... 8 Right-side components ... 9 Left-side components ...

  • Page 6: Table Of Contents

    Component replacement procedures ... 36 Service tag ... 36 Computer feet ... 37 Battery ... 38 SIM ... 39 Service cover ... 40 Hard drive ... 41 WWAN module ... 43 WLAN module ... 45 Memory module ... 47 RTC battery ... 48 Keyboard ...

  • Page 7: Table Of Contents

    Using the Instant Restore utility ... 74 Using Windows Backup and Restore ... 74 Using system restore points ... 75 Backing up and recovering using HP Recovery Manager ... 76 Performing a recovery ... 78 Windows XP ... 79 Backing up your information ... 79 7 Connector pin assignments ...

  • Page 8

    Index ... 94 viii...

  • Page 9: Product Description

    2048-MB total system memory (2048 × 1) NOTE: Supported on computers with Windows® XP and Windows 7. 1024-MB total system memory (1024× 1) NOTE: Supported only on computers with Windows HP Mini 2102 and Compaq Mini HP Mini 210 √ √ √ √...

  • Page 10

    Broadcom 4312G 802.11b/g WiFi Adapter module ● Broadcom 4312G 802.11b/g WiFi and 2070 Bluetooth 2.1+EDR Combo Adapter module 2 WLAN antennas built into display assembly Integrated WWAN by way of HP un2400 Mobile Broadband Module (optional) HP Mini 2102 and Compaq Mini HP Mini 210 √...

  • Page 11

    3-pin AC power Keyboard/pointing 93% island-style keyboard device HP Clikpad TouchPad with multi-touch/gesture support No numeric pad supported. TouchPad with 2 TouchPad buttons and 2-way scrolling (taps enabled and some gestures enabled by default) TouchPad on/off button with LED indicator...

  • Page 12

    Category Serviceability Chapter 1 Product description Description Support for HP QuickWeb FreeDOS End-user replaceable parts: AC adapter Battery (system) Hard drive Memory module WLAN module WWAN module HP Mini 2102 and Compaq Mini HP Mini 210 √ √ √ √...

  • Page 13: External Component Identification, Identifying The Hardware

    External component identification Identifying the hardware Components included with the computer may vary by region and model. The illustrations in this chapter identify the standard features on most computer models. To see a list of hardware installed in the computer, follow these steps: Select Start >...

  • Page 14: Top Components, Touchpad

    Top components TouchPad Item Component TouchPad on/off button TouchPad Left TouchPad button* Right TouchPad button* *This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel > Printers and Other Hardware > Mouse. Chapter 2 External component identification Description Turns the TouchPad on and off.

  • Page 15: Lights

    Lights Item Component TouchPad light Caps lock light Mute light Wireless light Description ● On: The TouchPad is disabled. ● Off: The TouchPad is enabled. On: Caps lock is on. On: Speaker sound is off. ● White: An integrated wireless device, such as a wireless local area network (WLAN) device and/ or a Bluetooth device, is on.

  • Page 16: Keys, Front Components

    Keys Item Component Action keys Windows logo key Windows applications key Front components Component Speakers (2) Chapter 2 External component identification Description Execute frequently used system functions. Executes frequently used system functions when pressed in combination with a function key or the key.

  • Page 17: Right-side Components

    Right-side components item Component Digital Media Slot Power light Power switch Vent USB ports (2) Description Supports the following optional digital card formats: ● Memory Stick (MS) ● MS/Pro ● MultiMediaCard (MMC) ● Secure Digital High Capacity (SDHC) Memory Card (standard and large size) ●...

  • Page 18: Left-side Components

    It is normal for the internal fan to cycle on and off during routine operation. ● Blinking: The hard drive is being accessed. ● Amber (select models only): HP ProtectSmart Hard Drive Protection has temporarily parked the hard drive.

  • Page 19: Display Components

    item Component USB port Audio-out (headphone) jack/Audio-in (microphone) jack Display components item Component Internal display switch Webcam light Webcam Internal microphone Description Connects an optional USB device. Produces sound when connected to optional powered stereo speakers, headphones, earbuds, a headset, or television audio.

  • Page 20: Bottom Components

    Bottom components item Component Battery release latches (2) Battery bay Chapter 2 External component identification Description Release the battery from the battery bay. Holds the battery.

  • Page 21: Wireless Antennas

    Wireless antennas item Component WWAN antennas (2)* (select models only) WLAN antennas (2)* *The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region.

  • Page 22: Illustrated Parts Catalog, Service Tag

    Illustrated parts catalog Service tag When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag: NOTE: The computer battery must be removed to access the service tag. (1) Product name: This is the product name affixed to the front of the device. (2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.

  • Page 23: Computer Major Components

    10.1-in display assembly (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables, and webcam/microphone module and cable): For use only with HP 2102 and Mini 210 computer models: ● HD, AntiGlare, flush glass display assembly in black ●...

  • Page 24

    Item Description ● HD, AntiGlare, flush glass display assembly in silver ● HD, AntiGlare, standard display assembly in black ● WSVGA, AntiGlare, flush glass display assembly in black ● WSVGA, AntiGlare, flush glass display assembly in blue ● WSVGA, AntiGlare, flush glass display assembly in red ●...

  • Page 25

    Item Description ● For use in Thailand ● For use in Turkey ● For use in the United Kingdom ● For use in the United States With textured surface: ● For use in Belgium ● For use in Brazil ● For use in the Czech Republic ●...

  • Page 26

    Item Description In red In silver TouchPad (includes cable and bracket (4b)): For use only with black top cover For use only with blue top cover For use only with red top cover For use only with silver top cover Speakers (includes cable) System board (includes Intel Atom N450 1.66-GHz processor with 512-KB level 2 cache, 667-MHz FSB and replacement thermal material):...

  • Page 27

    Item Description ● For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark,...

  • Page 28

    Item Description Broadcom 4312G 802.11b/g WiFi and 2070 Bluetooth 2.1+EDR Combo Adapter (13) HP un2400 Mobile Broadband WWAN module (14) Hard drive (includes cable adapter, 4 rubber isolators, and hard drive bracket) Hard drive: ● 320-GB, 7200-rpm ● 250-GB, 7200-rpm ●...

  • Page 29: Display Assembly Components

    Item Description Display bezel (includes WLAN antenna transceivers and cables and WWAN antenna transceivers and cables): For use only with HP Mini 2102 and 210 computer models For use only with Compaq Mini 210 computer models Display panel: 10.1-in, HD, AntiGlare display panel 10.1-in, WSVGA, AntiGlare display panel...

  • Page 30

    Display enclosure (includes WLAN antenna transceivers and cables and WWAN antenna transceivers and cables): For use only with HP computer models in black For use only with HP computer models in blue For use only with HP computer models in red...

  • Page 31: Mass Storage Devices

    Mass storage devices NOTE: Each hard drive spare part kit includes a cable adapter, bracket, and 4 isolators. Item Description Hard drive: 320-GB, 7200-RPM 250-GB, 7200-RPM 160-GB, 7200-RPM Hard Drive Hardware Kit (not illustrated) External optical drive: Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive with LightScribe DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe Spare part number 590819-001...

  • Page 32: Miscellaneous Parts

    Miscellaneous parts Description 40-W UMA AC adapter Power cord: For use in Argentina For use in Austalia For use in Brazil For use in Denmark For use in Europe For use in Israel For use in Italy For use in Japan For use in Norway For use in the People's Republic of China For use in Singapore and the United Kingdom...

  • Page 33: Sequential Part Number Listing

    Sequential part number listing Spare part number 449729-001 490371-001 490371-011 490371-021 490371-031 490371-061 490371-081 490371-111 490371-201 490371-291 490371-AA1 490371-AB1 490371-AD1 490371-AR1 490371-BB1 490371-D01 490371-D61 504593-003 504593-004 Description RTC battery Power cord for use in North America Power cord for use in Australia Power cord for use in Europe, the Middle East, and Africa Power cord for use in Singapore and the United Kingdom Power cord for use in Italy...

  • Page 34

    210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables, and webcam/microphone module and cable) 10.1-in HD, AntiGlare, flush glass display assembly in red for use only with HP Mini 2102 and 210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN...

  • Page 35

    WWAN transceivers and cables, and webcam/microphone module and cable) 589646-001 10.1-in HD, AntiGlare, flush glass display assembly in blue for use only with HP Mini 2102 and 210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN...

  • Page 36

    Spare part number 589670-001 589673-001 589676-001 589677-001 589678-001 589679-001 589680-001 589681-001 589682-001 589683-001 589684-001 589685-001 589686-001 589687-001 589688-001 590526-001 590526-031 590526-041 590526-051 590526-061 590526-071 590526-121 590526-131 590526-141 590526-161 590526-171 590526-201 590526-211 590526-221 590526-251 590526-281 590526-291 590526-A41 Chapter 3 Illustrated parts catalog Description 250-GB, 7200-rpm hard drive (includes cable adapter, 4 rubber isolators, and hard drive bracket) Hard Drive Hardware Kit (not illustrated, includes cable adapter, 4 rubber isolators, and hard drive...

  • Page 37

    Spare part number Description 590526-AB1 Keyboard with painted finish for use only in Taiwan (includes cable) 590526-AD1 Keyboard with painted finish for use only in South Korea (includes cable) 590526-B31 Keyboard with painted finish for use only in the Netherlands (includes cable) 590526-BA1 Keyboard with painted finish for use only in Slovenia (includes cable) 590526-BB1...

  • Page 38

    Spare part number 590543-001 590544-001 590819-001 596153-001 606695-001 Chapter 3 Illustrated parts catalog Description 3-cell, 28-WHr battery (includes 2 release latches) 6-cell, 62-WHr battery (includes 2 release latches and 2 rubber feet) 320-GB, 7200-rpm hard drive (includes cable adapter, 4 rubber isolators, and hard drive bracket) Speakers (includes cable) Screw Kit...

  • Page 39: Removal And Replacement Procedures, Preliminary Replacement Requirements, Tools Required, Service Considerations, Plastic Parts

    Removal and replacement procedures Preliminary replacement requirements Tools required You will need the following tools to complete the removal and replacement procedures: ● Flat-bladed screwdriver ● Magnetic screwdriver ● Phillips P0 and P1 screwdrivers Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

  • Page 40: Cables And Connectors, Drive Handling

    Cables and connectors CAUTION: When servicing the device, be sure that cables are placed in their proper locations during the reassembly process. Improper cable placement can damage the device. Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion.

  • Page 41: Grounding Guidelines, Electrostatic Discharge Damage

    Grounding guidelines Electrostatic discharge damage Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

  • Page 42: Packaging And Transporting Guidelines, Workstation Guidelines

    Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: ● To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

  • Page 43: Equipment Guidelines

    Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.

  • Page 44: Component Replacement Procedures, Service Tag

    Component replacement procedures This chapter provides removal and replacement procedures. There are as many as 33 screws, in 5 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

  • Page 45: Computer Feet

    Computer feet The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit, spare part number 589680-001. There are 4 rubber feet that attach to the base enclosure in the locations shown in the following illustration. Component replacement procedures...

  • Page 46: Battery

    Battery Description 6-cell, 62-WHr (includes 2 release latches and 2 rubber feet) 3-cell, 28-WHr (includes 2 release latches) Before disassembling the computer, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

  • Page 47

    Before removing the SIM, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

  • Page 48: Service Cover

    Service cover Description Service cover Before removing the service cover, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 49: Hard Drive

    Hard drive NOTE: Each hard drive spare part kit includes a cable adapter, bracket, and four rubber isolators. Description Hard drive: 320-GB, 7200-RPM 250-GB, 7200-RPM 160-GB, 7200-RPM Hard Drive Hardware Kit Before removing a hard drive, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

  • Page 50

    Remove the hard drive (4) by sliding it up and to the right at an angle. If it is necessary to replace the hard drive bracket, follow these steps: Disconnect the cable adapter (1) from the hard drive. Remove the four Phillips PM3.0×3.0 screws (2) that secure the hard drive bracket to the drive.

  • Page 51: Wwan Module

    WWAN module Description HP un2400 Mobile Broadband WWAN module CAUTION: The WWAN module and the WLAN module are not interchangeable. To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region.

  • Page 52

    Remove the WWAN module (4) by pulling the module away from the slot at an angle. NOTE: WWAN modules are designed with a notch (5) to prevent incorrect insertion of the WWAN module into the WWAN module slot. Reverse this procedure to install the WWAN module. Chapter 4 Removal and replacement procedures...

  • Page 53: Wlan Module

    WLAN module Description Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter module: For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,...

  • Page 54

    CAUTION: The WWAN module and the WLAN module are not interchangeable. To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region.

  • Page 55: Memory Module

    Memory module Description 2048-MB memory module (667-MHz, DDR2) 1024-MB memory module (667-MHz, DDR2) Before removing the memory module, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 56: Rtc Battery

    RTC battery Description RTC battery Before removing the real-time clock (RTC) battery, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 57: Keyboard

    Keyboard NOTE: The keyboard spare part kit includes a keyboard cable. For use in: With painted finish: Belgium Brazil The Czech Republic Denmark, Finland, and Norway France French Canada Germany Greece Hungary Israel Italy Japan Latin America With textured finish: Belgium Brazil The Czech Republic...

  • Page 58

    Before removing the keyboard, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

  • Page 59

    Release the zero insertion force (ZIF) connector (3) to which the keyboard cable is attached, and then disconnect the keyboard cable (4) from the system board. Remove the keyboard. Reverse this procedure to install the keyboard. Component replacement procedures...

  • Page 60: Top Cover

    Top cover Description In black In blue In red In silver Before removing the top cover, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 61

    Release the ZIF connector (2) to which the TouchPad cable is connected, and then disconnect the TouchPad cable (3) from the system board. Remove the five Phillips PM2.0×6.0 screws that secure the top cover to the base enclosure. Release the top cover (1) by lifting the rear edge until it disengages from the base enclosure. Component replacement procedures...

  • Page 62

    Remove the top cover (2) by lifting it straight up. Reverse this procedure to install the top cover. Chapter 4 Removal and replacement procedures...

  • Page 63: Speakers

    Speakers Description Speakers (include cables) Before removing the speakers, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 64: Touchpad

    TouchPad Description For use only with a black top cover For use only with a blue top cover For use only with a red top cover For use only with a silver top cover Before removing the TouchPad, follow these steps: Shut down the computer.

  • Page 65

    Remove the TouchPad (5) by sliding it forward. Reverse this procedure to install the TouchPad. Component replacement procedures...

  • Page 66: Display Assembly

    10.1-in display assembly (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables, and webcam/microphone module and cable): For use only with HP Mini 2102 and 210 computer models: ● HD, AntiGlare, flush glass display assembly in black ●...

  • Page 67

    Release the WLAN antenna cables (1) from the clips built into the base enclosure (2). Turn the computer right-side up, with the front toward you. Open the computer as far as it will open. Disconnect the display panel cable (1) from the system board. Release the wireless antenna cables (2) from the clip built into the base enclosure.

  • Page 68

    Remove the two Phillips PM2.0×4.0 screws (1) that secure the display assembly to the base enclosure. Remove the display assembly (2). Reverse this procedure to reassemble and install the display assembly. Chapter 4 Removal and replacement procedures...

  • Page 69: System Board

    System board NOTE: The system board spare part kit includes replacement thermal material. Description Includes Intel Atom N450 1.66-GHz processor with 512-KB level 2 cache, 667-MHz FSB and Digital Media Card Reader Includes Intel Atom N450 1.66-GHz processor with 512-KB level 2 cache, 667-MHz FSB, but does not include Digital Media Card Reader Before removing the system board, follow these steps: Shut down the computer.

  • Page 70

    Disconnect the power connector cable (2) from the system board. Remove the Phillips PM2.0×4.0 screw (1) that secures the system board to the base enclosure. Lift the right side of the system board (2) until it rests at an angle. Remove the system board (3) by sliding it up and away from the base enclosure.

  • Page 71: Fan/heat Sink Assembly

    Fan/heat sink assembly Description Fan/heat sink assembly (includes replacement thermal material) NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left side of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist.

  • Page 72

    Remove the fan/heat sink assembly (3). NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink assembly and system board components, it may be necessary to move the fan/heat sink assembly from side to side to detach it from the system board. NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink assembly and the system board each time the fan/heat sink assembly is removed: Thermal...

  • Page 73: Power Connector Cable

    Power connector cable Description Power connector cable Before removing the power connector cable, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 74

    Remove the power connector cable (3). Reverse this procedure to install the power connector cable. Chapter 4 Removal and replacement procedures...

  • Page 75: Starting Setup Utility, Using Setup Utility, Changing The Language Of Setup Utility, Setup Utility

    Setup Utility Starting Setup Utility Setup Utility is a ROM-based information and customization utility that can be used even when your Windows operating system is not working. The utility reports information about the computer and provides settings for startup, security, and other preferences.

  • Page 76: Navigating And Selecting In Setup Utility, Displaying System Information, Restoring Default Settings In Setup Utility

    Navigating and selecting in Setup Utility Because Setup Utility is not Windows based, it does not support the TouchPad. Navigation and selection are by keystroke. ● To choose a menu or a menu item, use the arrow keys. ● To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the arrow keys or ●...

  • Page 77: Exiting Setup Utility, Setup Utility Menus, Main Menu, Security Menu

    Exiting Setup Utility You can exit Setup Utility with or without saving changes. ● To exit Setup Utility and save your changes from the current session: If the Setup Utility menus are not visible, press arrow keys to select Exit > Exit Saving Changes, and then press enter. ●...

  • Page 78: System Configuration Menu, Diagnostics Menu

    Delay (sec.)―Set the delay for the functions of Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20). ● HP QuickWeb―Enable/disable the QuickWeb Boot menu in Setup Utility. ● Internal Network Adapter boot―Enable/disable boot from Internal Network Adapter.

  • Page 79: Windows 7, Backing Up And Recovering Using Roxio Backontrack, Backup And Recovery (windows Only)

    In the event of a hard drive failure, you cannot use your computer to access the Disaster Recovery utility. Therefore, HP recommends that you download the Disaster Recovery utility SoftPaq, and then extract it to a USB flash drive as soon as possible after software setup. For details, refer to “Downloading and extracting the Disaster Recovery utility”...

  • Page 80: Creating A Copy Of The Hard Drive, Performing A Recovery, Using The Disaster Recovery Utility

    For optimum performance, the capacity of the drive should be no larger than 2 GB. Disaster Recovery recovers data from a Disaster Recovery Set that you previously created with Roxio BackOnTrack. Disaster Recovery is available from the HP Web site in a compressed file called a SoftPaq.

  • Page 81: Downloading And Extracting The Disaster Recovery Utility, Restoring Your Hard Drive Image

    Connect a bootable USB flash drive or external drive to a USB port on your computer. Open your Web browser, go to http://www.hp.com/support, and select your country or region. Enter the SoftPaq number SP42226 in the Search box, press enter, and then follow the on- screen instructions.

  • Page 82: Using The Instant Restore Utility

    Using the Instant Restore utility You can restore your computer from Windows when the operating system is functioning. If the operating system is not functioning, you can also access the utility by restarting your computer. NOTE: For more information about the Instant Restore utility, refer to the BackOnTrack software Help.

  • Page 83: Using System Restore Points, When To Create Restore Points, Creating A System Restore Point

    Using system restore points When you back up your system, you are creating a system restore point. A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then revert back to that point if you want to reverse subsequent changes made to your system.

  • Page 84: Backing Up And Recovering Using Hp Recovery Manager, Backing Up Your Information

    Backing up and recovering using HP Recovery Manager If your computer includes HP Recovery Manager, tools provided by the operating system and by HP Recovery Manager software are designed to help you with the following tasks for safeguarding your information and restoring it in case of a system failure: ●...

  • Page 85: Creating A Set Of Recovery Discs

    When backing up to discs, number each disc before inserting it into an optical drive. Creating a set of recovery discs HP recommends that you create recovery discs to be sure that you can restore your system to its original factory state if you experience serious system failure or instability. Create these discs after setting up the computer for the first time.

  • Page 86: Performing A Recovery, Recovering Using The Recovery Discs

    Performing a recovery NOTE: You can recover only files that you have previously backed up. HP recommends that you use Recovery Manager to create a set of recovery discs (entire drive backup) as soon as you set up your computer.

  • Page 87: Windows Xp, Backing Up Your Information

    In the event of a hard drive failure, you cannot use your computer to access the Disaster Recovery utility. Therefore, HP recommends that you download the Disaster Recovery utility SoftPaq, and then extract it to a USB flash drive as soon as possible after software setup. For details, refer to “Downloading and extracting the Disaster Recovery utility”...

  • Page 88

    Creating a copy of the hard drive The back up drive function of BackOnTrack creates a Disaster Recovery Set that is an exact image of your hard drive data. You can back up the image to an external hard drive (purchased separately). To create a Disaster Recovery Set using BackOnTrack, follow these steps: NOTE: Be sure that the computer is connected to AC power before you start the backup process.

  • Page 89: Using The Disaster Recovery Utility, Downloading And Extracting The Disaster Recovery Utility

    For optimum performance, the capacity of the drive should be no larger than 2 GB. Disaster Recovery recovers data from a Disaster Recovery Set that you previously created with Roxio BackOnTrack. Disaster Recovery is available from the HP Web site in a compressed file called a SoftPaq.

  • Page 90: Using The Instant Restore Utility When The Operating System Is Functioning

    Using the Instant Restore utility You can restore your computer from Windows when the operating system is functioning. If the operating system is not functioning, you can also access the utility by restarting your computer. NOTE: For more information about the Instant Restore utility, refer to the BackOnTrack software Help.

  • Page 91: Audio-in (microphone), Audio-out (headphone), Connector Pin Assignments

    Connector pin assignments Audio-in (microphone) Audio-out (headphone) Signal Audio signal in Audio signal in Ground Signal Audio out, left channel Audio out, right channel Ground Audio-in (microphone)

  • Page 92: External Monitor

    External monitor Chapter 7 Connector pin assignments Signal Red analog Green analog Blue analog Not connected Ground Ground analog Ground analog Ground analog +5 VDC Ground Monitor detect DDC 2B data Horizontal sync Vertical sync DDC 2B clock...

  • Page 93: Rj-45 (network), Universal Serial Bus

    RJ-45 (network) Universal Serial Bus Signal Transmit + Transmit - Receive + Unused Unused Receive - Unused Unused Signal +5 VDC Data Data + Ground RJ-45 (network)

  • Page 94: Requirements For All Countries, Power Cord Set Requirements

    Power cord set requirements The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.

  • Page 95: Requirements For Specific Countries And Regions

    Requirements for specific countries and regions Country/region Australia Austria Belgium Canada Denmark Finland France Germany Italy Japan The Netherlands Norway The People's Republic of China South Korea Sweden Switzlerland Taiwan The United Kingdom The United States The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

  • Page 96: Display, Battery, Recycling

    When you remove these components, handle them carefully. NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly that might require special handling at end-of-life. Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities, or see the Electronic Industries Alliance (EIA) Web site at http://www.eiai.org.

  • Page 97

    Perform the following steps: Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the display bezel until the bezel disengages from the display assembly.

  • Page 98

    Disconnect all display panel cables (1) from the display inverter and remove the inverter 2. Remove all screws (1) that secure the display panel assembly to the display enclosure. Remove the display panel assembly (2) from the display enclosure. Turn the display panel assembly upside down. Remove all screws that secure the display panel frame to the display panel.

  • Page 99

    Remove the display panel frame (2) from the display panel. Remove the screws (1) that secure the backlight cover to the display panel. Lift the top edge of the backlight cover (2) and swing it outward. Remove the backlight cover. Turn the display panel right-side up.

  • Page 100

    Remove the backlight cables (1) from the clip (2) in the display panel. Turn the display panel upside down. Remove the backlight frame from the display panel. WARNING! The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. Remove the backlight from the backlight frame.

  • Page 101

    Disconnect the display cable (1) from the LCD panel. Remove the screws (2) that secure the LCD panel to the display rear panel. Release the LCD panel (3) from the display rear panel. Release the tape (4) that secures the LCD panel to the display rear panel. Remove the LCD panel.

  • Page 102

    Index AC adapter, spare part number 24, 26 action keys 8 antenna locations 13 audio, product description 2 audio-in jack connector pinout 83 location 11 audio-out jack connector pinout 83 location 11 base enclosure, spare part number 18, 28 battery removal 38 spare part numbers 20, 30, 38 battery bay 12...

  • Page 103

    product description 2 removal 41 self test 70 spare part numbers 20, 23, 27, 28, 30 , 41 hard drive bracket, removal 42 Hard Drive Hardware Kit, spare part number 20, 23, 28, 41 headphone jack connector pinout 83 location 11 hinge, spare part number 21, 27 internal media cards, product description 3...

  • Page 104

    Screw Kit, spare part number 24, 30 security cable slot 10 Security Menu, Setup Utility 69 security, product description 3 selecting in Setup Utility 68 serial number 14 service considerations 31 service cover removal 40 spare part number 20, 28, 40 service tag 14, 36 serviceability, product description 4...
