Page 1: Maintenance And Service Guide

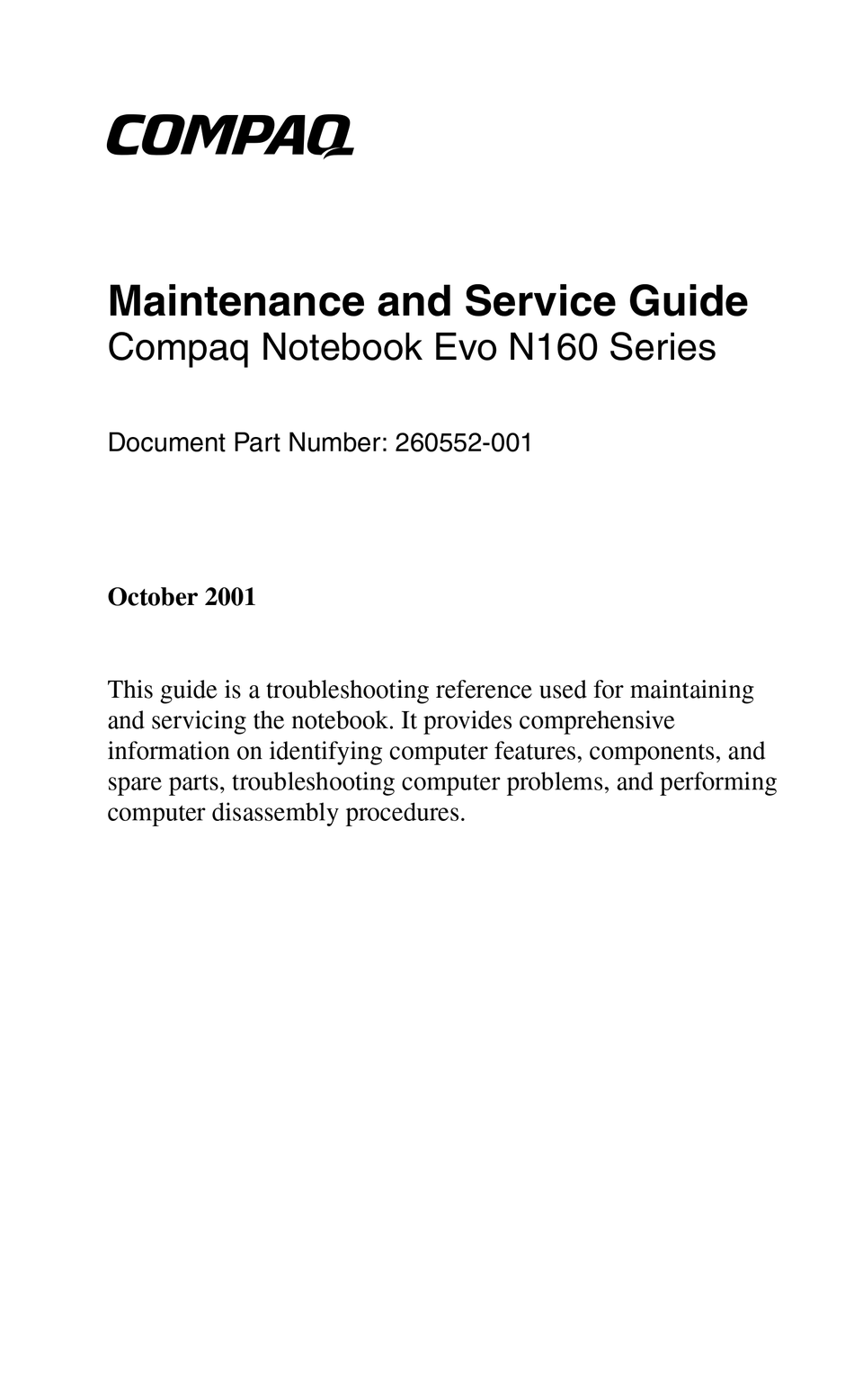

Maintenance and Service Guide Compaq Notebook Evo N160 Series Document Part Number: 260552-001 October 2001 This guide is a troubleshooting reference used for maintaining and servicing the notebook. It provides comprehensive information on identifying computer features, components, and spare parts, troubleshooting computer problems, and performing...
Page 2 © 2001 Compaq Computer Corporation Compaq, Evo, and the Compaq logo are trademarks of Compaq Information Technologies Group, L.P. Microsoft and Windows are trademarks of Microsoft Corporation. Intel, Pentium, and Celeron are trademarks of Intel Corporation. All other product names mentioned herein may be trademarks of their respective companies.
Page 3: Table Of Contents
1 Product Description Models ........1–2 1.1 Features .
Page 4 Contents 2.16 No Audio, Part 2 ..... . . 2–18 2.17 Nonfunctioning Device ....2–19 2.18 Nonfunctioning Keyboard .
Page 5 5.11 Top Cover....... . 5–24 5.12 Speaker Assembly ......5–28 5.13 Disk Cell RTC Battery .
Page 6: Product Description
Product Description The Compaq Notebook Evo N160 Series of Personal Computers offers advanced modularity, Intel Pentium III processors with 64-bit architecture, industry-leading Accelerated Graphics Port (AGP) implementation, and extensive multimedia support. Figure 1-1. Compaq Notebook Evo N160 Maintenance and Service Guide...
Page 7: Models
Integrated communication Battery cells / type Operating system SKU# All computer models use configuration code KHYZ. 1–2 Table 1-1 Compaq Notebook Evo N160 Options N=Notebook P=Intel Pentium III 120=1.20 GHz 113=1.13 GHz 106=1.06 GHz X=XGA (1024 × 768) 48=48 GB...
Page 8 Belgium Czech Republic Denmark European France French Canada Germany Greece / Poland Hong Kong Korea Latin America Maintenance and Service Guide Table 1-1 Compaq Notebook Evo N160 470024-097 470024-980 470024-081 470024-083 470024-085 470024-070 470024-087 470023-990 470024-089 470024-091 470023-984 470024-050 470024-055...
Page 9 Models and Model Naming Conventions (Continued) Arabic Australia Czech Republic Denmark European France French Canada Germany Hong Kong Italy Korea 1–4 Table 1-1 Compaq Notebook Evo N160 470024-098 470024-981 470024-084 470024-086 470024-082 470024-088 470023-991 470024-090 470023-985 470024-096 470024-052 Latin America 470024-058...
Page 10 Australia Denmark European France French Canada Germany Greece / Poland Hong Kong Japan Korea European Maintenance and Service Guide Table 1-1 Compaq Notebook Evo N160 470024-079 470024-044 470024-043 470024-048 470024-042 470024-051 470024-054 470024-026 470024-030 470024-034 470024-039 Product Description The Netherlands...
Page 11 The Netherlands Asia / Pacific / Thailand Belgium Czech Republic Denmark France French Canada Germany Hong Kong Hungary Israel Italy 1–6 Table 1-1 Compaq Notebook Evo N160 470024-049 470024-056 470024-028 470024-027 470024-059 470024-035 470024-063 470023-996 470024-001 470024-002 470024-003 470024-004 470023-998...
Page 12 Models and Model Naming Conventions (Continued) France Germany Italy Spain Maintenance and Service Guide Table 1-1 Compaq Notebook Evo N160 470024-005 470024-007 470024-011 470024-018 Product Description Swedish / 470024-022 Finnish People’s 470024-040 Republic of China Taiwan 470023-994 Hong Kong 470023-993...
Page 13: Features
Product Description 1.1 Features 1.2-, 1.13-, 1.06-, 1.0-GHz or 933- or 866-MHz Intel Pentium III Processor, with 512-KB integrated L2 cache, or 933- or 866-MHz Intel Celeron Processor with 128-KB integrated L2 cache, varying by computer model ATI Mobility Radeon with 64-bit video graphics, 8-MB double date rate (DDR) SDRAM, 4X AGP graphics card 128-MB high-performance Synchronous DRAM (SDRAM), expandable to 1024 MB...
Page 14 Connectors for: ❏ RJ-45 network ❏ RJ-11 modem ❏ Universal Serial Bus ❏ S-Video ❏ Parallel devices ❏ External monitor ❏ 1394 digital devices ❏ AC power ❏ Stereo line out/headphone ❏ Mono microphone ❏ QuickDock Port Replicator Stereo speakers providing Compaq Premier·Sound™ 16-bit stereo sound Maintenance and Service Guide Product Description...
Page 15: Clearing A Password
Product Description 1.2 Clearing a Password If the notebook you are servicing has an unknown password, follow these steps to clear the password. These steps also clear CMOS: 1. Prepare the computer for disassembly (refer to Section 5.3, “Preparing the Computer for Disassembly,” for more information).
Page 16: Power Management
1.3 Power Management The computer comes with power management features that extend battery operating time and conserve power. The computer supports the following power management features: Standby Hibernation Setting customization by the user Hotkeys for setting level of performance Smart battery that provides an accurate battery power gauge Battery calibration Lid switch suspend/resume Power/suspend button...
Page 17: Computer External Components
Product Description 1.4 Computer External Components The external components on the front and right side of the computer are shown in Figure 1-2 and described in Table 1-1. Figure 1-2. Front and Right Side Components 1–12 Maintenance and Service Guide...
Page 18 Front and Right Side Components Item Component Display release latch Stereo speakers Drive indicator light Battery light Battery bay Modular media bay Maintenance and Service Guide Table 1-1 Function Opens the computer. Produce stereo sound. Turns on when the hard drive, CD-, or DVD-ROM drive is accessed.
Page 19 Product Description The computer rear panel and left side components are shown in Figure 1-3 and described in Table 1-2. Figure 1-3. Rear Panel and Left Side Components Rear Panel and Left Side Components Item Component RJ-45 jack (network models only) RJ-11 jack (internal modem models only) USB connectors (2)
Page 20 Rear Panel and Left Side Components (Continued) Item Component 1394 jack DC power jack Stereo speaker/ headphone jack Mono microphone jack Security cable slot Vent PC Card slot PC Card eject button Hard drive bay Maintenance and Service Guide Table 1-2 Function Connects IEEE 1394-compliant products, such as digital camcorders, video editing...
Page 21 Product Description The keyboard components are shown in Figure 1-4 and described in Table 1-3. Figure 1-4. Keyboard Components 1–16 Maintenance and Service Guide...
Page 22 Item Component through function keys Caps lock Windows logo key Windows application Cursor control keys Embedded numeric keypad Maintenance and Service Guide Table 1-3 Keyboard Components Function Perform preset functions. Turns on the caps lock function. Used with hotkeys to perform preset hotkey functions.
Page 23 Product Description The components on the top of the computer are shown in Figure 1-5 and described in Table 1-4. Figure 1-5. Top Components Item Component Vent Volume control buttons Digital audio button 1–18 Table 1-4 Top Components Function Allows airflow to cool internal components. Ä...
Page 24 Item Component Power button Easy Access buttons Power light Num lock light Caps lock light Scroll lock light Display lid switch TouchPad Left and right TouchPad buttons Easy Scroll button Drive indicator light Battery light Maintenance and Service Guide Table 1-4 Top Components (Continued) Function Turns on the computer.
Page 25 Product Description The external components on the bottom of the computer are shown in Figure 1-6 and described in Table 1-5. Figure 1-6. Bottom Components Item Component Hard drive retention screw Hard drive bay 1–20 Table 1-5 Bottom Components Function Secures the hard drive to the computer.
Page 26 Bottom Components (Continued) Item Component Memory expansion compartment cover Docking connector Stereo speakers Serial number Certificate of Authenticity label Battery bay Battery pack release switch Modular media bay Modular media bay release switch Maintenance and Service Guide Table 1-5 Function Covers the memory expansion compartment that contains two memory expansion slots for...
Page 27: Design Overview
Product Description 1.5 Design Overview This section presents a design overview of key parts and features of the computer. Refer to Chapter 3, “Illustrated Parts Catalog,” to identify replacement parts, and Chapter 5, “Removal and Replacement Procedures,” for disassembly steps. The system board provides the following device connections: Memory expansion board Hard drive...
Page 28: Troubleshooting
Å WARNING: Only authorized technicians trained by Compaq should repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or make modifications to any printed wiring board.
Page 29: Troubleshooting Flowcharts
Troubleshooting Troubleshooting Flowcharts Troubleshooting Flowcharts Overview Section Description Initial troubleshooting No power, part 1 No power, part 2 No power, part 3 No power, part 4 No video, part 1 No video, part 2 Nonfunctioning docking station No operating system (OS) loading 2.10 No OS loading from hard drive, part 1 2.11...
Page 30 Initial Troubleshooting Begin Troubleshooting. Is there power? Beeps, LEDs, or error Messages? Is there video? (no boot) Is the OS loading? Is there sound? Maintenance and Service Guide Go to Section 2.2, No Power. Check LED board, speaker connections. Go to Section 2.6, No Video.
Page 31: No Power, Part 2
Troubleshooting 2.2 No Power, Part 1 No Power (Power LED is off) Remove from docking station if applicable. Power up on battery power? Power up on AC power? Power up in docking station? 1. Reseat power cables in docking station and at the AC outlet.
Page 32: No Power, Part 3
2.3 No Power, Part 2 Continued from Section 2.2, No Power, Part 1. Visually check for debris in battery socket and clean if necessary. Power on? Check battery by recharging, moving it to another computer, or replacing it. Power on? Done Maintenance and Service Guide Done...
Page 33: No Power, Part 4
Troubleshooting 2.4 No Power, Part 3 Continued from Section 2.3, No Power, Part 2. Plug directly into AC outlet. Power LED Reseat AC adapter in computer and at power source. Power on? Power outlet active? Replace power cord. Power on? 2–6 Done Done...
Page 34 2.5 No Power, Part 4 Continued from Section 2.4, No Power, Part 3. Open computer. Loose or damaged parts? Close computer and retest. Power on? Done Maintenance and Service Guide Reseat loose components and boards and replace damaged items. Replace the following items, if applicable. Check computer operation after each replacement: 1.
Page 35: No Video, Part 1
Troubleshooting 2.6 No Video, Part 1 No Video Docking Station Stand-alone or Docking Station? Standalone Internal or external display*? Internal External Adjust brightness. Video OK? Replace the following one at a time. Test after each replacement. 1. Cable between notebook and computer display (if applicable) Check for bent 2.
Page 36: No Video, Part 2
2.7 No Video, Part 2 Continued from Section 2.6, No Video, Part 1. Remove notebook from docking station, if connected. Adjust display brightness. Video OK? Check for notebook properly seated in docking station, bent pins on cable, and for monitor connection.
Page 37: Nonfunctioning Docking Station
Troubleshooting 2.8 Nonfunctioning Docking Station (if applicable) Nonfunctioning docking station Reseat power cord in docking station and power outlet. Check voltage setting on docking station. Reset monitor cable connector at docking station. Docking station operating? Remove notebook, reseat all internal parts, and replace any damaged items in docking station.
Page 38: No Operating System (Os) Loading
2.9 No Operating System (OS) Loading No OS loading* Reseat power cord in docking station and power outlet. *Before beginning, always check cable connections, cable ends, and drives for bent or damaged pins. Maintenance and Service Guide No OS loading from hard drive, go to Section 2.10.
Page 39 Troubleshooting 2.10 No OS Loading from Hard Drive, Part 1 OS not loading from hard drive. Nonsystem disk message? Reseat external hard drive. OS loading? Boot from Check the setup utility for correct booting order. Boot from hard drive? Done 2–12 Go to Section 2.11,...
Page 40 2.11 No OS Loading from Hard Drive, Part 2 Continued from Section 2.10, No OS Loading from Hard Drive, Part 1. CD or diskette in drive? Remove diskette and reboot. Boot from hard drive? Boot from diskette drive? Hard drive accessible? Go to Section 2.12,...
Page 41: No Os Loading From Hard Drive, Part 1
Troubleshooting 2.12 No OS Loading from Hard Drive, Part 3 Continued from Section 2.11, No OS Loading from Hard Drive, Part 2. System files on hard drive? Virus on hard drive? Run SCANDISK and check for bad sectors. Can bad sectors be fixed? Fix bad...
Page 42: No Os Loading From Diskette Drive
2.13 No OS Loading from Diskette Drive OS not loading from diskette drive. Nonsystem disk message? Boot from another device? Diskette drive enabled in the setup utility? Diskette drive boot order? Change boot priority using the setup utility. Maintenance and Service Guide Reseat diskette drive.
Page 43: No Os Loading From Cd- Or Dvd-Rom Drive
Troubleshooting 2.14 No OS Loading from CD- or DVD-ROM Drive No OS loading from CD- or DVD-ROM drive. Boots from CD or DVD? Reseat drive. 2–16 Disc in drive? Install bootable disc. Done Boots from CD or DVD? Booting Section 2.17, from another Nonfunctioning device?
Page 44: No Audio, Part 2
2.15 No Audio, Part 1 No audio Notebook in docking station (if applicable)? Go to Section 2.16, No Audio, Part 2. Maintenance and Service Guide Turn up audio internally or externally. Undock Replace the following docking station components one at a time as applicable. Check after each change.
Page 45 Troubleshooting 2.16 No Audio, Part 2 Continued from Section 2.15, No Audio, Part 1. Audio driver in OS configured? Correct drivers for application? Connect to external speaker. Audio? 2–18 Reload audio drivers. Load drivers and set configuration in OS. Replace audio board and speaker connections in...
Page 46: Nonfunctioning Device
2.17 Nonfunctioning Device Clear CMOS. Reattach device. Close notebook, plug in power, and reboot. Device boots properly? Done Maintenance and Service Guide Nonfunctioning device Reseat device. Unplug the nonfunctioning device from the notebook, inspect cables and plugs for bent or broken pins or other damage.
Page 47: Nonfunctioning Keyboard
Troubleshooting 2.18 Nonfunctioning Keyboard Keyboard not operating properly. Connect notebook to good external keyboard. External device works? Reseat internal keyboard connector (if applicable). Done 2–20 Replace system board. Replace internal keyboard or cable. Replace system board. Done Maintenance and Service Guide...
Page 48: Nonfunctioning Pointing Device
2.19 Nonfunctioning Pointing Device Pointing device not operating properly. Connect notebook to good external pointing device. External device works? Reseat internal pointing device connector (if applicable). Done Maintenance and Service Guide Replace system board. Replace internal pointing device or cable. Replace system board.
Page 49: Network Or Modem Connection Problems
Troubleshooting 2.20 Network or Modem Connection Problems No network or modem connection. Network or modem jack active? Digital line? NIC/modem configured in OS? Disconnect all power from the notebook and open. Reseat NIC/modem if applicable. 2–22 Replace jack or have jack activated.
Page 50: Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a reference for spare part numbers and option part numbers. 3.1 Serial Number Location When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer (Figure 3-1).
Page 51: Computer System Major Components
Illustrated Parts Catalog 3.2 Computer System Major Components Figure 3-2. Computer System Major Components 3–2 Maintenance and Service Guide...
Page 52 Spare Parts: Computer System Major Components Item Description Display 14.1-inch, SXGA, CTFT 14.1-inch, XGA, CTFT 13.3-inch, XGA, CTFT Plastics and Hardware Kit, includes: Switch cover Left hinge cover Right hinge cover Keyboard shield Left display support Right display support Disk cell RTC battery Hard drive bracket Hard drive shield Hard drive sleeve...
Page 53 Illustrated Parts Catalog Computer System Major Components (continued) 3–4 Maintenance and Service Guide...
Page 54 Spare Parts: Computer System Major Components (Continued) Item Description Fan (includes heat sink) Processors Intel Pentium III 1.2 GHz Intel Pentium III 1.13 GHz Intel Pentium III 1.06 GHz Intel Pentium III 1.0 GHz Intel Pentium III 933 MHz Intel Pentium III 866 MHz Intel Celeron 933 MHz Intel Celeron 866 MHz Top cover (includes TouchPad and...
Page 55 Illustrated Parts Catalog Computer System Major Components (continued) 3–6 Maintenance and Service Guide...
Page 56 Spare Parts: Computer System Major Components (Continued) Item Description Speakers Left Right Base enclosure Battery packs 4.0 amp hour capacity 3.6 amp hour capacity Modular media bay device Diskette drive 24X Max CD-ROM drive 8X Max CD-RW drive DVD-ROM drive DVD-ROM/CD-RW combination drive Maintenance and Service Guide Illustrated Parts Catalog...
Page 57: Plastics And Hardware Kit Components
Illustrated Parts Catalog 3.3 Plastics and Hardware Kit Components Figure 3-3 Plastics and Hardware Kit Components Plastics and Hardware Kit Components Item Description Switch cover Hinge covers Display supports Keyboard shield Disk cell RTC battery Docking connector cover 3–8 Table 3-2 Spare Part Number 251365-001 Item Description...
Page 58: Mass Storage Devices
3.4 Mass Storage Devices Figure 3-4. Mass Storage Devices Item Description Hard drives 48 GB 30 GB 20 GB 10 GB Modular media bay device Diskette drive 24X Max CD-ROM drive 8X Max CD-RW drive DVD-ROM drive DVD-ROM/CD-RW combination drive Maintenance and Service Guide Table 3-3 Mass Storage Devices...
Page 59: Miscellaneous
Illustrated Parts Catalog 3.5 Miscellaneous Spare Parts: Miscellaneous (not illustrated) Description QuickDock Port Replicator Modem adapters Czech German Hungarian Modem cable Modem cable adapters Australian Belgian French RJ-11 P55 adapters Danish Finnish RJ-11 PTT adapter (used in the United Kingdom) RJ-45 network cable Logo kit Screw kit (includes the following screws and bushing guides;...
Page 60 Spare Parts: Miscellaneous (not illustrated) (Continued) Description AC adapters 60-Watt AC adapter power supply (2 wire) 60-Watt AC adapter power supply (3 wire) Power cord, 2 wire Australian Chinese International Power cord, 3 wire Australian Chinese International Italian Japanese Description Memory expansion boards 512 MB 256 MB...
Page 61: Removal And Replacement Preliminaries
Removal and Replacement This chapter provides essential information for proper and safe removal and replacement service. 4.1 Tools Required You will need the following tools to complete the removal and replacement procedures: Magnetic screwdriver Phillips P0 and P1 screwdrivers Tool kit (includes connector removal tool, loopback plugs, and case utility tool) Maintenance and Service Guide Preliminaries...
Page 62: Service Considerations
Removal and Replacement Preliminaries 4.2 Service Considerations The following sections include some of the considerations that you should keep in mind during disassembly and assembly procedures. ✎ As you remove each subassembly from the computer, place the subassembly (and all accompanying screws) away from the work area to prevent damage.
Page 63: Preventing Damage To Removable Drives
4.3 Preventing Damage to Removable Drives Removable drives are fragile components that must be handled with care. To prevent damage to the computer, damage to a removable drive, or loss of information, observe the following precautions: Before removing or inserting a hard drive, shut down the computer.
Page 64: Preventing Electrostatic Damage
Removal and Replacement Preliminaries 4.4 Preventing Electrostatic Damage Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases the discharge contains enough power to alter device parameters or melt silicon junctions.
Page 65: Workstation Precautions
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or nonconductive foam. Use transporters and conveyers made of antistatic belts and roller bushings. Ensure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Page 66: Grounding Equipment And Methods
Removal and Replacement Preliminaries 4.7 Grounding Equipment and Methods Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords.
Page 67 Nonconductive plastic bags, tubes, or boxes Metal tote boxes Electrostatic voltage levels and protective materials Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities. Typical Electrostatic Voltage Levels Event Walking across carpet Walking across vinyl floor Motions of bench worker Removing DIPS from plastic tube Removing DIPS from vinyl tray...
Page 68: Removal And Replacement Procedures
Removal and Replacement Procedures This chapter provides removal and replacement procedures. Phillips P0 and P1 screws are removed and loosened during disassembly. There are 41 screws, in 10 different sizes, that must be removed and replaced when servicing the computer. Make special note of each screw size and location during removal and replacement.
Page 69: Serial Number
Removal and Replacement Procedures 5.1 Serial Number Report the computer serial number to Compaq when requesting information or ordering spare parts. The serial number is located on the bottom of the computer (Figure 5-1). Figure 5-1. Serial Number Location 5–2 Maintenance and Service Guide...
Page 70: Disassembly Sequence Chart
5.2 Disassembly Sequence Chart Use the chart below to determine the section number to be referenced when removing computer components. Section Description Preparing the computer for disassembly Battery pack Hard drive Modular media bay device Memory expansion board Computer feet Switch cover Keyboard Fan assembly...
Page 71: Preparing The Computer For Disassembly
Removal and Replacement Procedures 5.3 Preparing the Computer for Disassembly Perform the following steps before disassembling the computer. 1. Turn off the computer. 2. Disconnect the AC adapter and all external devices. 3. Remove the battery pack by following these steps: a.
Page 72 4. Remove the hard drive by following these steps: a. Turn the computer bottom side up with the front facing you. b. Remove the silver M3 × 8 screw 1 (Figure 5-3). c. Use a thin flat tool (screwdriver, case utility tool) to slide the front edge of the hard drive sleeve to the right 2.
Page 73 Removal and Replacement Procedures If the hard drive must be removed from the hard drive sleeve, perform the following steps: a. Remove the four black M3 × 4 screws 1 that secure the hard drive to the hard drive sleeve (Figure 5-4). b.
Page 74 5. Remove a modular media bay device by following these steps: a. Turn the computer bottom side up with the front facing you. b. Slide and hold the toward the back of the computer (Figure 5-5). c. Use the notch in the modular media bay device bezel 2 to slide the device to the left.
Page 75: Memory Expansion Board
Removal and Replacement Procedures 5.4 Memory Expansion Board 1. Prepare the computer for disassembly (Section 5.3). 2. Turn the computer bottom side up with the front facing you. 3. Remove the silver M2 × 5 screw 1 that secures the memory expansion compartment cover to the base enclosure (Figure 5-6).
Page 76 6. Spread the memory expansion slot retaining tabs to release the memory expansion board 1 (Figure 5-7). 7. The board tilts up at a 45-degree angle. 8. Remove the board by pulling it away from the connector at a 45-degree angle 2. Figure 5-7.
Page 77: Computer Feet
Removal and Replacement Procedures 5.5 Computer Feet The computer feet are adhesive-backed rubber pads. The computer feet are included in the Plastics and Hardware Kit (spare part number 251365-001). Refer to Figure 5-8 for computer feet locations. Figure 5-8. Replacing the Computer Feet 5–10 Maintenance and Service Guide...
Page 78: Switch Cover
5.6 Switch Cover ✎ The switch cover is included in the Plastics and Hardware Kit (spare part number 251365-001). 1. Prepare the computer for disassembly (Section 5.3). 2. Turn the computer bottom side up with the rear panel facing you. 3.
Page 79 Removal and Replacement Procedures 6. Press down and hold the 7. Use a small straight edge tool (screwdriver or tweezers) to disengage the left side of the switch cover from the top cover 2. 8. Remove the switch cover 3. Figure 5-10.
Page 80: Keyboard
5.7 Keyboard Belgian Brazilian Danish French French Canadian German International Italian Japanese Korean 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the switch cover (Section 5.6). Maintenance and Service Guide Removal and Replacement Procedures Keyboards Spare Part Number Information 251371-181 Latin American Spanish 251371-201...
Page 81 Removal and Replacement Procedures 3. Lift up the back edge of the keyboard and swing it up and forward until it rests on the top cover (Figure 5-11). Figure 5-11. Releasing the Keyboard 5–14 Maintenance and Service Guide...
Page 82 4. Remove the two silver M2 × 5 screws 1 that secure the keyboard shield to the base enclosure (Figure 5-12). 5. Remove the keyboard shield 2. 6. Release the ZIF connector 3 to which the keyboard cable is connected and disconnect the keyboard cable 4. Figure 5-12.
Page 83: Fan Assembly
Removal and Replacement Procedures 5.8 Fan Assembly Fan (includes heat sink) 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the switch cover (Section 5.6). 3. Remove the keyboard and keyboard shield (Section 5.7). 5–16 Fan Assembly Spare Part Number Information 251367-001 Maintenance and Service Guide...
Page 84 4. Disconnect the fan cable from the system board 1 (Figure 5-13). 5. Loosen the four silver M2.5 × 18 shoulder screws 2 that secure the fan assembly to the base enclosure. ✎ The fan screws are spring-loaded and are captured by the fan assembly.
Page 85: Processor
Removal and Replacement Procedures 5.9 Processor Intel Pentium III 1.2 GHz Intel Pentium III 1.133 GHz Intel Pentium III 1.066 GHz Intel Pentium III 1.0 GHz Intel Pentium III 933 MHz Intel Pentium III 866 MHz Intel Celeron 933 MHz Intel Celeron 866 MHz 1.
Page 86 Removal and Replacement Procedures 2. Use a flat-blade screwdriver to turn the processor locking screw 1 one-half turn counterclockwise (Figure 5-14). 3. Lift the processor straight up 2 to remove it from its socket. ✎ When installing the processor, make sure the gold triangle symbol 3 is located in the lower left corner.
Page 87: Display
Removal and Replacement Procedures 5.10 Display 14.1-inch, SXGA, CTFT 14.1-inch, XGA, CTFT 13.3-inch, XGA, CTFT 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the switch cover (Section 5.6). 3. Close the computer. 4. Turn the computer top side up with the rear panel facing you. 5–20 Displays Spare Part Number Information...
Page 88 5. Insert a small straight edge tool (screwdriver or tweezers) into the notch 1 in the hinge cover and partially lift the hinge cover 2 (Figure 5-15). 6. When the hooks 3 on the inside and outside edges of the hinge covers are exposed, press in on the edges of the hinge covers to disengage them from the top cover.
Page 89 Removal and Replacement Procedures 9. Position the computer so the front faces you. 10. Open the computer as far as it will open. 11. Lift up the back edge of the keyboard and swing it forward until it rests on the top cover. 12.
Page 90 13. Remove the black M2 × 12 screw 1 that secures the left display hinge (Figure 5-17). ✎ Note the orientation and position of the display hinge bracket 2. Take special care not to lose this bracket when replacing the display.
Page 91: Top Cover
Removal and Replacement Procedures 5.11 Top Cover Top cover (includes TouchPad and TouchPad buttons) 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Switch cover (Section 5.6) b. Keyboard and keyboard shield (Section 5.7) c. Display (Section 5.10) 2.
Page 92 3. Remove the eight black M2 × 9 screws 1 that secure the top cover to the base enclosure (Figure 5-18). 4. Open the parallel and serial connector cover 2. 5. Remove the silver M2 × 6.5 screw 3 that secures the top cover to the base enclosure through the rear panel.
Page 93 Removal and Replacement Procedures 7. Release the ZIF connector 1 to which the TouchPad cable is attached and disconnect the TouchPad cable 2 from the system board (Figure 5-19). 8. Remove the two black M2 × 9 screws 3 and the silver M2 ×...
Page 94 Removal and Replacement Procedures 9. Lift the top cover straight up to remove it (Figure 5-20). Figure 5-20. Removing the Top Cover Reverse the above procedure to install the top cover. Maintenance and Service Guide 5–27...
Page 95: Speaker Assembly
Removal and Replacement Procedures 5.12 Speaker Assembly ✎ The left and right speakers are not interchangeable. The right speaker has a longer cable. Left speaker Right speaker 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a.
Page 96 2. Disconnect the speaker cables 1 from the system board (Figure 5-21). 3. Remove the gold M2 × 5 screws 2 that secure the speaker assemblies to the base enclosure. 4. Remove the speaker assemblies 3. Figure 5-21. Removing the Speaker Assemblies Reverse the above procedure to install the speaker assemblies.
Page 97: Disk Cell Rtc Battery
Removal and Replacement Procedures 5.13 Disk Cell RTC Battery ✎ The disk cell RTC battery is included in the Plastics and Hardware Kit (spare part number 251365-001). 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a.
Page 98: Mini Pci Communications Board
5.14 Mini PCI Communications Board Mini PCI Communications Boards Mini PCI communications boards Type III mini PCI 56-Kbps modem (domestic) Type III mini PCI 56-Kbps modem (international) 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a.
Page 99 Removal and Replacement Procedures 2. Disconnect the communications cable from the mini PCI communications board 1 (Figure 5-23). 3. Spread the retaining tabs to release the mini PCI communications board 2. The board tilts up at a 45-degree angle. 4. Remove the board by pulling it away from the connector at a 45-degree angle 3.
Page 100: Sub I/O Board
5.15 Sub I/O Board Sub I/O board 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Switch cover (Section 5.6) b. Keyboard and keyboard shield (Section 5.7) c. Display (Section 5.10) d. Top cover (Section 5.11) Maintenance and Service Guide Removal and Replacement Procedures Sub I/O Board...
Page 101 Removal and Replacement Procedures 2. Remove the black M2 × 9 screw 1 and the silver M2 × 6.5 screw 2 that secure the right display support to the base enclosure. The silver M2 × 6.5 screw also captures the modem/NIC ground cable 3 (Figure 5-24).
Page 102 4. Disconnect the modem/NIC cable 1 from the sub I/O board (Figure 5-25). 5. Lift up the right side of the sub I/O board 2 until it clears the base enclosure. 6. Slide the sub I/O board to the right 3 to disconnect it from the system board.
Page 103: System Board
Removal and Replacement Procedures 5.16 System Board System board 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Switch cover (Section 5.6) b. Keyboard and keyboard shield (Section 5.7) c. Display (Section 5.10) d. Top cover (Section 5.11) e.
Page 104 2. Position the modem/NIC cable 1 so it rests in the empty modular 3. Disconnect the speaker assembly cables 2 from the system board. 4. Remove the two silver M2 × 6.5 screws 3 that secure the hard drive bracket to the base enclosure. 5.
Page 105 Removal and Replacement Procedures 6. Remove the two black M2 × 9 screws 1 that secure the left display support to the base enclosure (Figure 5-27). 7. Remove the left display support 2. ✎ The left display support is included in the Plastics and Hardware Kit (spare part number 251365-001).
Page 106 9. Press in and hold the PC Card eject button 1 (Figure 5-28). 10. Lift up the front edge of the system board 2 until it clears the base enclosure. 11. Slide the front edge of the system board forward, away from the base enclosure, at an angle 3.
Page 107: Specifications
This chapter provides physical and performance specifications. Dimensions Height Width Depth Weight AC adapter power requirements Rated input voltage Rated input current Rated frequency Temperature Operating Nonoperating Relative humidity (noncondensing) Operating Nonoperating Altitude (unpressurized) Operating Nonoperating Maintenance and Service Guide Specifications Table 6-1 Computer...
Page 108 Specifications Shock Operating Nonoperating Vibration Operating Nonoperating ✎ Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this range of temperatures. 6–2 Table 6-1 Computer (Continued) 10 G for 11 ms, half sine 60 g for 11 ms, half sine 0.5 G zero-to-peak, 10-500 Hz, 0.25-oct/min sweep rate 1.0 G zero-to-peak, 10-500 Hz, 0.25-oct/min...
Page 109 Dimensions Height Depth Width Number of colors Contrast ratio Brightness Pixel resolution Pitch Format Configuration Backlight Character display Refresh Total power consumption Maintenance and Service Guide Table 6-2 14.1-inch XGA, TFT Display 8.46 in 11.22 in 14.10 in Up to 16.8 million 150:1 120 nits typical 1024 ×...
Page 110 Specifications Dimensions Height Depth Width Number of colors Contrast ratio Brightness Pixel resolution Pitch Format Configuration Backlight Character display Refresh Total power consumption 6–4 Table 6-3 13.3-inch XGA, TFT Display 7.98 in 10.64 in 13.3 in Up to 16.8 million 150:1 120 nits typical 1024 ×...
Page 111 User capacity per drive Drive height (with drive frame, in mm) Drive width (with drive frame, in mm) Interface type Seek times (typical read, including setting) Single track Average Full stroke User addressable sectors Logical configuration Cylinders Heads Sectors per track 1 GB = 1,000,000,000 bytes.
Page 112 Specifications Physical configuration Cylinders Heads Sectors per track Bytes per sector Buffer size Disk rotational speed (rpm) Transfer rate Interface max (MB/s) Media (Mb/s) 1 GB = 1,000,000,000 bytes. System capability may differ. Actual drive specifications may differ slightly. Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
Page 113 Diskette size Light Height Bytes per sector Sectors per track High density Low density Tracks per side High density Low density Read/write heads Average seek times Track-to-track (high/low) Average (high/low) Settling time Latency average Maintenance and Service Guide Table 6-4 Diskette Drive 3.5 inch On system...
Page 114 Specifications Applicable disk Center hole diameter Disk diameter Disk thickness Track pitch Access time Random Full stroke Cache buffer Data transfer rate Sustained, 16X Variable Normal PIO Mode 4 (single burst) Startup time Stop time 6–8 Table 6-5 CD-ROM Drive CD-ROM (Mode 1, 2, and 3) CD-XA ready (Mode 2, Form 1 and 2) CD-I ready (Mode 2, Form 1 and 2)
Page 115 Applicable disk Center hole diameter Disk diameter Disk thickness Track pitch Access time Random Full stroke Audio output level Cache buffer Data transfer rate Max 24X CD Max 8X DVD Normal IO Mode 4 (single burst) Startup time Stop time Maintenance and Service Guide Table 6-6 DVD-ROM Drive...
Page 116 Specifications Center hole diameter Disk diameter Disk thickness Track pitch Access time Random Full stroke Audio output level Cache buffer Data transfer rate Sustained, 16X Sustained, 4X CD-RW Normal PIO Mode 4 (single burst) Startup time Stop time 6–10 Table 6-7 CD-RW Drive .59 in .47 in...
Page 117 Dimensions Height Depth Width Weight Power supply (input) Operating voltage Operating current Operating frequency range Maximum transient Dimensions Length Width Depth Weight Energy Voltage Amp-hour capacity Watt-hour capacity Temperature Operating Nonoperating Maintenance and Service Guide Table 6-8 AC Adapter 1.10 in 1.42 in 3.70 in .39 lb...
Page 118 Specifications Hardware DMA System Function DMA0 Available for audio DMA1 Entertainment audio (default; alternate = DMA0, DMA3, none) DMA2 Diskette drive DMA3 ECP parallel port LPT1 (default; alternate = DMA0, none) DMA4 DMA controller cascading (not available) DMA5 Available for PC Card DMA6 Not assigned DMA7...
Page 119 Hardware IRQ System Function IRQ0 System timer IRQ1 Keyboard controller IRQ2 Cascaded IRQ3 COM2 IRQ4 COM1 IRQ5 Audio (default)* IRQ6 Diskette drive IRQ7 Parallel port IRQ8 Real time clock (RTC) IRQ9 Infrared IRQ10 System use IRQ11 System use IRQ12 Internal point stick or external mouse IRQ13 Coprocessor (not available to any peripheral) IRQ14...
Page 120 Specifications I/O Address (hex) 000 - 00F 010 - 01F 020 - 021 022 - 024 025 - 03F 02E - 02F 040 - 05F 044 - 05f 062 - 063 065 - 06F 070 - 071 072 - 07F 080 - 08F 090 - 091 093 - 09F...
Page 121 System I/O Addresses (Continued) I/O Address (hex) 0A2 - 0BF 0C0 - 0DF 0E0 - 0EF 0F0 - 0F1 0F2 - 0FF 100 - 16F 170 - 177 178 - 1EF 1F0 - 1F7 1F8 - 200 202 - 21F 220 - 22F 230 - 26D 26E - 26...
Page 122 Specifications System I/O Addresses (Continued) I/O Address (hex) 2F0 - 2F7 2F8 - 2FF 300 - 31F 320 - 36F 370 - 377 378 - 37F 380 - 387 388 - 38B 38C - 3AF 3B0 - 3BB 3BC - 3BF 3C0 - 3DF 3E0 - 3E1 3E2 - 3E3...
Page 123 Size Memory Address 640 KB 00000000 - 0009FFFF 128 KB 000A0000 - 000BFFFF 48 KB 000C0000 - 000CBFFF 160 KB 000C8000 - 000E7FFF 64 KB 000E8000 - 000FFFFF 15 MB 00100000 - 00FFFFFF 58 MB 01000000 - 047FFFFF 58 MB 04800000 - 07FFFFFF 2 MB 08000000 - 080FFFFF...
Page 124: Connector Pin Assignments
Connector Pin Assignments Signal Transmit + Transmit - Receive + Unused Maintenance and Service Guide Table A-1 RJ-45 Network Interface Signal Unused Receive - Unused Unused A–1...
Page 125 Connector Pin Assignments Signal Unused Ring Signal +5 VDC Data - A–2 Table A-2 RJ-11 Modem Signal Unused Unused Unused Table A-3 Universal Serial Bus Signal Data + Ground Maintenance and Service Guide...
Page 126 Signal Ground (Y) Ground (C) Maintenance and Service Guide Connector Pin Assignments Table A-4 S-Video Signal Y-Luminance (Intensity) C-Chrominance (Color) A–3...
Page 127 Connector Pin Assignments Signal Strobe* Data bit 0 Data bit 1 Data bit 2 Data bit 3 Data bit 4 Data bit 5 Data bit 6 Data bit 7 *Signal is active low. A–4 Table A-5 Parallel Signal Acknowledge* Busy Paper out Select Auto line feed*...
Page 128 Signal Red analog Green analog Blue analog Not connected Ground Ground analog Ground analog Ground analog Maintenance and Service Guide Table A-6 External Monitor Signal +5 VDC Ground Monitor detect DDC 2B data Horizontal sync Vertical sync DDC 2B clock Connector Pin Assignments A–5...
Page 129 Connector Pin Assignments Signal Audio out Signal Audio in A–6 Table A-7 Stereo Speaker/Headphone Table A-8 Microphone Signal Ground Signal Ground Maintenance and Service Guide...
Page 130: B Power Cord Set Requirements
Power Cord Set Requirements 3-Conductor Power Cord Set The computer’s wide range input feature permits it to operate from any line voltage from 100 to 120 or 220 to 240 volts AC. The power cord set received with the computer meets the requirements for use in the country where the equipment is purchased.
Page 131: Country-Specific Requirements
Power Cord Set Requirements Country-Specific Requirements 3-Conductor Power Cord Set Requirements Country Australia Austria Belgium Canada Denmark Finland France Germany Italy Japan The Netherlands Norway Sweden Switzerland United Kingdom United States Notes 1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country...
Page 132 2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration. 3. The appliance coupler, flexible cord, and wall plug must bear a “T”...
Page 133: Screw Listing
This appendix provides specification and reference information for the screws used in the computer. All screws listed in this appendix are available in the Miscellaneous Screw Kit, spare part number 251366-001. Where used: One screw that secures the hard drive to the computer (documented in Section 5.3) Maintenance and Service Guide Screw Listing...
Page 134 Where used: Four screws that secure the hard drive to the hard drive sleeve (documented in Section 5.3) C–2 Table C-2 Phillips M3.0 × 4.0 Screw Color Black Length Thread 4.0 mm 3.0 mm Maintenance and Service Guide Head Width 6.0 mm...
Page 135 Where used: One screw that secures the memory expansion compartment cover to the base enclosure (documented in Section 5.4) Maintenance and Service Guide Table C-3 Phillips M2.0 × 5.0 Screw Color Silver Length Thread 5.0 mm 2.0 mm Head Width 5.0 mm C–3...
Page 136 Phillips M2.0 × 5.0 Screw (Continued) Where used: Two screws that secure the keyboard shield to the top cover (documented in Section 5.7) C–4 Table C-3 Color Length Silver 5.0 mm Maintenance and Service Guide Head Thread Width 2.0 mm 5.0 mm...
Page 137 Phillips M2.0 × 5.0 Screw (Continued) Where used: One screw that secures the system board to the base enclosure (documented in Section 5.16) Maintenance and Service Guide Table C-3 Color Length Silver 5.0 mm Head Thread Width 2.0 mm 5.0 mm C–5...
Page 138 Where used: Two screws that secure the switch cover to the base enclosure memory expansion compartment cover to the base enclosure (documented in Section 5.6) C–6 Table C-4 Phillips M2.0 × 9.0 Screw Color Black Length Thread 9.0 mm 2.0 mm Maintenance and Service Guide Head Width...
Page 139 Phillips M2.0 × 9.0 Screw (Continued) Where used: Eight screws that secure the top cover to the base enclosure (documented in Section 5.11) Maintenance and Service Guide Table C-4 Color Length Black 9.0 mm Head Thread Width 2.0 mm 5.0 mm C–7...
Page 140 Phillips M2.0 × 9.0 Screw (Continued) Where used: Two screws that secure the top cover to the base enclosure (documented in Section 5.11) C–8 Table C-4 Color Length Black 9.0 mm Maintenance and Service Guide Head Thread Width 2.0 mm 5.0 mm...
Page 141 Phillips M2.0 × 9.0 Screw (Continued) Where used: One screw that secures the right display support to the base enclosure (documented in Section 5.15) Maintenance and Service Guide Table C-4 Color Length Black 9.0 mm Head Thread Width 2.0 mm 5.0 mm C–9...
Page 142 Phillips M2.0 × 9.0 Screw (Continued) Where used: Two screws that secure the left display support to the base enclosure (documented in Section 5.16) C–10 Table C-4 Color Length Black 9.0 mm Maintenance and Service Guide Head Thread Width 2.0 mm 5.0 mm...
Page 143 Where used: Four screws that secure the display to the base enclosure through the rear panel (documented in Section 5.10) Maintenance and Service Guide Table C-5 Phillips M2.0 × 10.5 Screw Color Silver Length Thread 10.5 2.0 mm Head Width 5.0 mm C–11...
Page 144 Phillips M2.0 × 10.5 Screw (Continued) Where used: One screw that secures the display to the base enclosure through the right hinge (documented in Section 5.10) C–12 Table C-5 Color Length Silver 10.5 Maintenance and Service Guide Head Thread Width 2.0 mm 5.0 mm...
Page 145 Where used: One screw that secures the display to the base enclosure through the left hinge (documented in Section 5.10) Maintenance and Service Guide Table C-6 Phillips M2.0 × 12.0 Screw Color Black Length Thread 12.0 mm 2.0 mm Head Width 5.0 mm C–13...
Page 146 Where used: One screw that secures the top cover to the base enclosure through the rear panel (documented in Section 5.11) C–14 Table C-7 Phillips M2.0 × 6.5 Screw Color Silver Length Thread 6.5 mm 2.0 mm Maintenance and Service Guide Head Width 5.0 mm...
Page 147 Phillips M2.0 × 6.5 Screw (Continued) Where used: One screw that secures the top cover to the base enclosure (documented in Section 5.11) Maintenance and Service Guide Table C-7 Color Length Silver 6.5 mm Head Thread Width 2.0 mm 5.0 mm C–15...
Page 148 Phillips M2.0 × 6.5 Screw (Continued) Where used: One screw that secures the right display support and sub I/O board to the base enclosure; this screw also secures the modem ground cable (documented in Section 5.15) C–16 Table C-7 Color Length Silver 6.5 mm...
Page 149 Phillips M2.0 × 6.5 Screw (Continued) Where used: Two screws that secure the hard drive bracket to the base enclosure (documented in Section 5.16) Maintenance and Service Guide Table C-7 Color Length Silver 6.5 mm Head Thread Width 2.0 mm 5.0 mm C–17...
Page 150 Where used: Two screws that secure the speaker assemblies to the base enclosure (documented in Section 5.12) C–18 Table C-8 Phillips M2.0 × 5.0 Screw Color Gold Length Thread 5.0 mm 2.0 mm Maintenance and Service Guide Head Width 6.0 mm...
Page 151 Maintenance and Service Guide C–19...
Page 152 1394 jack 1–15 AC adapter spare part numbers 3–10 specifications 6–11 audio troubleshooting 2–17 base enclosure illustrated 3–6 spare part number 3–7 battery components bay, location 1–13 external battery charger, spare part number 3–11 light 1–13 pack, illustrated 3–6 pack, removal 5–4 release switch 1–21 spare part numbers 3–7 specifications 6–11...
Page 153 Index S-video A–3 universal serial bus (USB) connector A–2 connectors 4–2 cursor control keys 1–17 design overview 1–22 digital audio button 1–18 disassembly sequence chart 5–3 diskette drive illustrated 3–9 OS loading problems 2–15 spare part number 3–9 specifications 6–7 display cable 5–22 hinge bracket 5–23...
Page 154 grounding equipment/methods 4–6 hard drive bay 1–15 bracket illustrated 3–2 removal 5–37 illustrated 3–4 OS loading problems 2–12 removal 5–5 retention screw 1–20 shield illustrated 3–2 removal 5–6 sleeve illustrated 3–2 removal 5–6 spare part numbers 3–5 3–9 specifications 6–5 headphone jack location 1–15 pin assignments A–6...
Page 155 Index mini PCI communications board illustrated 3–4 removal 5–31 spare part numbers 3–5 5–31 models 1–2 modem illustrated 3–4 jack, pin assignments A–2 removal 5–31 spare part numbers 3–5 5–31 troubleshooting 2–22 modem adapter, spare part numbers 3–10 modem cable illustrated 3–6 spare part number 3–10 modem cable adapter, spare...
Page 156 power management features 1–11 processor illustrated 3–4 installation 5–19 removal 5–18 spare part numbers 3–5 5–18 QuickDock port replicator, spare part number 3–10 real time clock (RTC) battery illustrated 3–2 removal 5–30 rear panel components 1–14 removal preliminaries 4–1 procedures 5–1 replacement preliminaries 4–1 procedures 5–1...
Page 157 Index S-video connector location 1–14 pin assignments A–3 switch cover illustrated 3–2 removal 5–11 system board illustrated 3–4 removal 5–36 spare part number 3–5 5–36 system memory map 6–17 tools required 4–1 top components 1–18 top cover illustrated 3–4 removal 5–24 spare part number 3–5 5–24 TouchPad...

Compaq Evo N160 Series Maintenance And Service Manual

1 Product Description

2 Troubleshooting

3 Illustrated Parts Catalog

4 Removal and Replacement Preliminaries

5 Removal and Replacement Procedures

6 Specifications

B Power Cord Set Requirements

Screw Listing

Quick Links

Maintenance and Service Guide

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compaq Evo N160 Series

Summary of Contents for Compaq Evo N160 Series

Table of Contents
