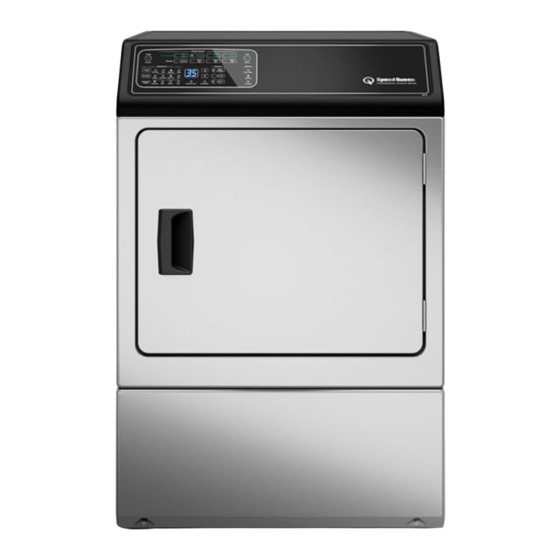

Alliance Laundry Systems Speed Queen DF7000SE Installation Instructions Manual

Alliance Laundry Systems Speed Queen DF7000SE Installation Instructions Manual

Advertisement

Quick Links

Installation Instructions
for Dryers
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
Part No. D514320ENR5
www.speedqueen.com
November 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speed Queen DF7000SE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alliance Laundry Systems Speed Queen DF7000SE

  • Page 1 Installation Instructions for Dryers Original Instructions Keep These Instructions for Future Reference. CAUTION: Read the instructions before using the machine. (If this machine changes ownership, this manual must accompany machine.) Part No. D514320ENR5 www.speedqueen.com November 2019...
  • Page 3 Installation and service must be performed by a appliance. qualified installer, service agency or the gas sup- plier. W053 W052 This product uses FreeRTOS V7.2.0 (www.freertos.org). © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 4 A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. • This appliance must not be installed in a bedroom or bath- room. © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 5: Table Of Contents

    Installer Checklist.................23 © Copyright 2019, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher.
  • Page 6: Dimensions

    28 in. [711 mm] 23.5 in. [597 mm] NOTE: Exhaust openings are 4 inch [102 mm] metal * With leveling legs turned into base. ducting. © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 7 For maximum drying per- formance, we recommend that more clearance be al- lowed around the dryer than the clearances that are listed throughout this manual. © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 8: Installation

    W299 Parts Included An accessories bag has been shipped inside your dryer. It in- cludes: • Product literature © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 9 Installation DRY2500N_SVG 1. Dryer Base 2. Level 3. Leveling Leg Figure 2 © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 10 Front View (Closet Door) 2 (G) DRY2637N_SVG 1. Closet Door 2. Centered Air Openings (G) (2 Openings minimum) 3. Outer Wall of Enclosure Figure 3 © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 11: Connect Dryer Exhaust System

    To reduce the risk from substances in the fuel or from fuel combustion, make sure this appliance is installed, operated, and maintained according to the instructions in this manual. W115 © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 12: Exhaust Direction

    • In mobile home installations, dryer exhaust duct must be se- cured to mobile home structure. © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 13: Gas Dryers - Connect Gas Supply Pipe

    Use a non-corrosive leak detection fluid. • Any disassembly requiring the use of tools must be performed by a suitably qualified service per- son. W316 © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 14 NOTE: DO NOT connect the dryer to L.P. Gas Service without converting the gas valve. Install L.P. Gas Con- version Kit 649P3, available at extra cost. © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 15: Electric Dryer Only - Connect Electrical Plug

    NOTE: Connect the dryer to the power supply with the be plugged into an appropriate outlet that is properly installed and MAXIMUM RATED VOLTAGE listed on the serial plate. © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 16 14. Intermediate Shut-Off Box (may or may not be fused) 15. Direct Connection 16. Power Cord Connection Figure 6 1. Disconnect power to dryer. 2. Remove access cover from rear of dryer. © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 17: Connecting Power Cord With Four-Wire Plug

    5. Using a screwdriver, tighten all screws firmly. DRY2467N_SVG IMPORTANT: Failure to tighten these screws firmly may result in wire failure at the terminal block. Figure 11 © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 18: Reverse Door, If Desired

    10. Reinstall access cover and screw. Reverse Door, if Desired NOTE: Doors with windows cannot be reversed. © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 19 DRY1918N_SVG Figure 20 7. Reinstall nine screws removed in Step 2. DRY1916N_SVG Figure 17 4. Rotate door panel 180 degrees as shown. DRY1919N_SVG Figure 21 © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 20: Wipe Out Inside Of Dryer

    This appliance is to be supplied through a residual current device separately fused 15 Amp circuits. (RCD) having a rated residual operating current not exceeding 30 © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 21: Recheck Steps

    The dryer is equipped with a cord having an equipment earth/ Gas Dryers ground conductor and a three-prong earth/ground plug. The © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 22 3. 1/8 in. [3.1 mm] Pipe Plug (For checking manifold pressure) 4. Shut-off Valve Open Position 5. Shut-off Valve Closed Position 6. Shut-off Valve Handle Figure 27 © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
  • Page 23: Installer Checklist

    Cord. CHECK CHECK D679I_SVG1 Start and Run Dryer in Heat Setting to Verify Dryer is Heating. CHECK Refer to the manual for more detailed information © Copyright, Alliance Laundry Systems LLC - Part No. D514320ENR5 DO NOT COPY or TRANSMIT...
