Summary of Contents for GW Instek SPS Series
- Page 1 sales@artisantg.com artisantg.com (217) 352-9330 | Click HERE Find the Instek SPS-606 at our website:...
- Page 2 SAFETY TERMS AND SYMBOLS These terms may appear in this manual or on the product: WARNING. Warning statements identify condition or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practice that could result in damage to this product or other property. The following symbols may appear in this manual or on the product: DANGER DANGER...
- Page 3 FOR UNITED KINGDOM ONLY NOTE As the colours of the wires in main leads may not correspond with the colours marking This lead/appliance must only identified in your plug/appliance, proceed as follows: be wired by competent persons The wire which is coloured Green & Yellow must be connected to the Earth terminal marked WARNING with the letter E or by the earth symbol or coloured Green or Green &...
- Page 4 EC Declaration of Conformity GOOD WILL INSTRUMENT CO.,LTD. (1) NO. 95 - 11, Pao Chung Rd., Hsin-Tien City, Taipei Hsien, Taiwan (2) Plot 522, Lorong Perusahaan Baru 3, Prai Industrial Estate, 13600 Prai, Penang, Malaysia declare, that the below mentioned product SPS-1820, SPS-3610, SPS-606 are herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Law of Member States relating to Electromagnetic Compatibility...
-
Page 5: Table Of Contents
CONTENTS SECTION PAGE INTRODUCTION… … … … … … … … … … … … … … … … … … … … … … … … … … … … … .… … … … … … … … … SPECIFICATIONS…... -
Page 6: Introduction
1. INTRODUCTION The series of switching power supplies for measuring instrument have ruled out the inconvenience of big volume and heavyweight of a traditional power supply possess. The output voltage and current is controlled by two variable resistors with coarse and fine regulation for more handy and precise adjustment. -
Page 7: Specifications
2.SPECIFICATION 2-1. General Main supply : 115V/230V± 15% 50/60Hz (Switch selectable). Rating, dimension and weight : See Table 2-1. Table 2-1 MAX. RATING INPUT RATING FUSE STYLE & RATING WEIGHT Model Voltage Current Watts 115V 230V SPS-1820 T 10A 250V T 6.3A 250V SPS-3610 T 10A 250V... - Page 8 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 9: Constant Voltage Operation
2-2.Constant Voltage Operation (1) Output Voltage ranges from 0 to rating voltage with continuous adjustment. (2) Voltage regulation line regulation≦5mV. load regulation≦5mV. (3) Recovery time≦500μs(50% Load change, minimum load 0.5A). (4) Ripple & Noise≦5mVrms, 100mVp -p (tested by 20MHz oscilloscope.) (5) Temperature coefficient≦100ppm/ ℃. -
Page 10: Insulation
(2) OVP Accuracy ± (Vset 1%+0.6V) 2-6.Insulation Between Chassis and Output Terminal : ≧ 20MΩ (DC500V). Between Chassis and AC Cord : ≧ 30MΩ (DC500V). 3. PRECAUTIONS BEFORE OPERATION 3.1 Unpacking the Switching Power Supply The instrument has been fully inspected and tested before shipping from the factory. Upon receiving the instrument, please unpack and inspect it to check if there is any damages caused during transportation. - Page 11 WARNING: To avoid personal injury, disconnect the power cord before removing the fuse holder. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 12: Environment
3.3 Environment The normal ambient temperature range of this instrument is from 0° to 40°C (32° to 104°F). Operation of the instrument above this temperature range may cause damage to the circuits. Do not use the instrument in a place where strong magnetic or electric field exists as it may disturb the measurement. 3.4 Equipment Installation, and Operation Ensure there is proper ventilation for the vents in the SPS power supplies case. -
Page 13: Theory Of Operation
4.THEORY OF OPERATION Block Configuration of SPS- System The SPS-Series comprise a Bridge rectifier, a Pulse Width Modulation, a Driver Circuit, a Driver Transformer, a Rectifier Circuit, a Voltage Control Circuit, a Current Shunt, an Output Filter, a Voltage/Current Adjusting Circuit, a Buffer Circuit, an Error Amplifier, an Opto-Isolator, and an Auxiliary Switching Supply and etc. - Page 14 Description of Circuit Theory 1) +10V Voltage reference circuit? Start up the circuits of R306 and D302 to ensure the output voltage of OPA U301, PIN 1 is in positive status when power is on. At this moment, the output voltage of PIN 1 will pass through R307 to maintain the voltage of both ends of ZENER DIODE ZD301(6.2V) to 6.2V.
- Page 15 For example: SPS-1820, Io=20A? R341=10mΩ Vpin12=Io×R341×A=20×0.01×28.01=5.602V Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 16 Figure 1: Block Diagram Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 17 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 18: Panel Controls And Indicators

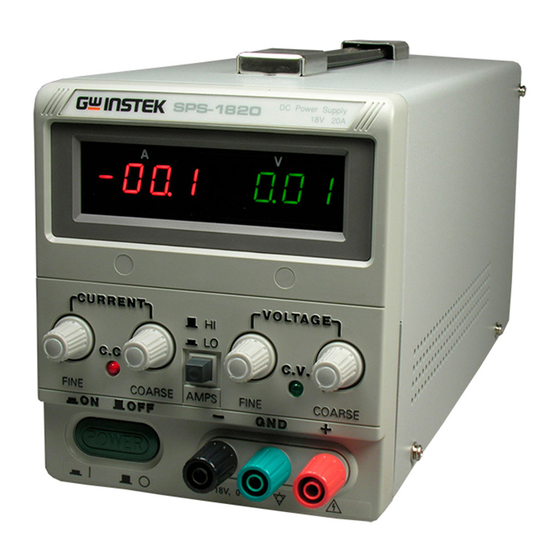

5.PANEL CONTROLS AND INDICATORS 5-1.Front panel CV Indicator Lights when the power is on and in constant voltage operation. CC Indicator Lights when in constant current operation. Voltage coarse For the coarse adjustment of the output voltage. Voltage fine For the fine adjustment of the output voltage. Current coarse For the coarse adjustment of the output current. - Page 19 (18) + sense terminal Screw type + sense input terminal. (19) – sense terminal Screw type – sense input terminal. (20) + output terminal Screw type + output terminal. (21) – output terminal Screw type – output terminal. (22) Ground terminal Screw type ground terminal (connected to case chassis).
-
Page 20: Front Panel
DC POWER SUPPLY MODEL : SPS-3610 CURRENT VOLTAGE C.C. C.V. FINE COARSE AMPS FINE COARSE POWER 0~36V, 0~3A Fig. 4-1 Front Panel Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 21 Fig. 4-2 Rear Panel Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 22: Operation Instructions
6.OPERATION INSTRUCTIONS 6-1.Precaution (1)AC input AC input should be within the range of line voltage± 15% 50/60Hz. WARNING: To avoid electrical shock, the power cord protective grounding conductor must be connected to ground. (2)Installation Avoid using the power supply in a place where ambient temperature exceeds 40℃. The heat sink located at rear of the power supply must have sufficient space for radiation. - Page 23 (3) Output Current/Temperature Cure Line Chart: 100% Output Current Environment Temperature (℃ ) Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 24 (4) Output Test lead Selection: The Selection of Output Test Lead and Feedback Test Lead: For safety assurance, please select the adequate output test lead according to the following list: Conductor Maximum Permissible (CSA) Conductive Current Wire No. Component Cross Section Area Outer Model Resistor...
-
Page 25: Setting Current Limit
6-2.Setting Current Limit (1) Determine the maximum safe current for the device to be powered. (2) Temporarily short the (+) and (-) terminals of the power supply together with a test lead. (3) Rotate the COARSE VOLTAGE control away from zero sufficiently to have the CC indicator lightened. (4) Adjust the CURRENT control for the desired current limit. - Page 26 Similarly, crossover from the constant current to the constant voltage mode automatically occurs from a decrease in load, a good example of this would be seen when charging a 12 volt battery. Initially, the open circuit voltage of the power supply may be preset for 13.8 volts.
-
Page 27: Fuse Replacement
7. MAINTENANCE WARNING The following instructions are used by qualified personnel only. To avoid electrical shock, do not perform any servicing other than the operating instructions of the manual unless you are qualified to do so. 7-1.Fuse Replacement If the fuse blown, the CV or CC indicators will not light and the power supply will not operate. The fuse should not normally blow unless a problem has developed in the unit. -
Page 28: Adjustment
7-3.Internal adjustments The unit was accurately adjusted at the factory before shipment. So, readjustment is suggested only when the accuracy of circuit is affected by the repair, or when you have the reason to believe that the unit is out of accuracy. The recommended calibration device is a multimeter with an accuracy of ±... - Page 29 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 30: Cleaning
7-4 Cleaning To clean the power supply, use a soft cloth dampened in a solution of mild detergent and water. Do not spray cleaner directly onto the instrument, since it may leak into the cabinet and cause damage. Do not use chemicals containing benzine, benzene, toluene, xylene, acetone, or similar solvents.
