INSTRUCTTIONS OF USING DC POWER

I. PANEL CONTROL AND INDICATORS

Current knob

CC indicator

"+" output

terminal

Ground

terminal

"-" output

terminal

SUPPLY SPS-1230

Power Switch

MAX.3A output

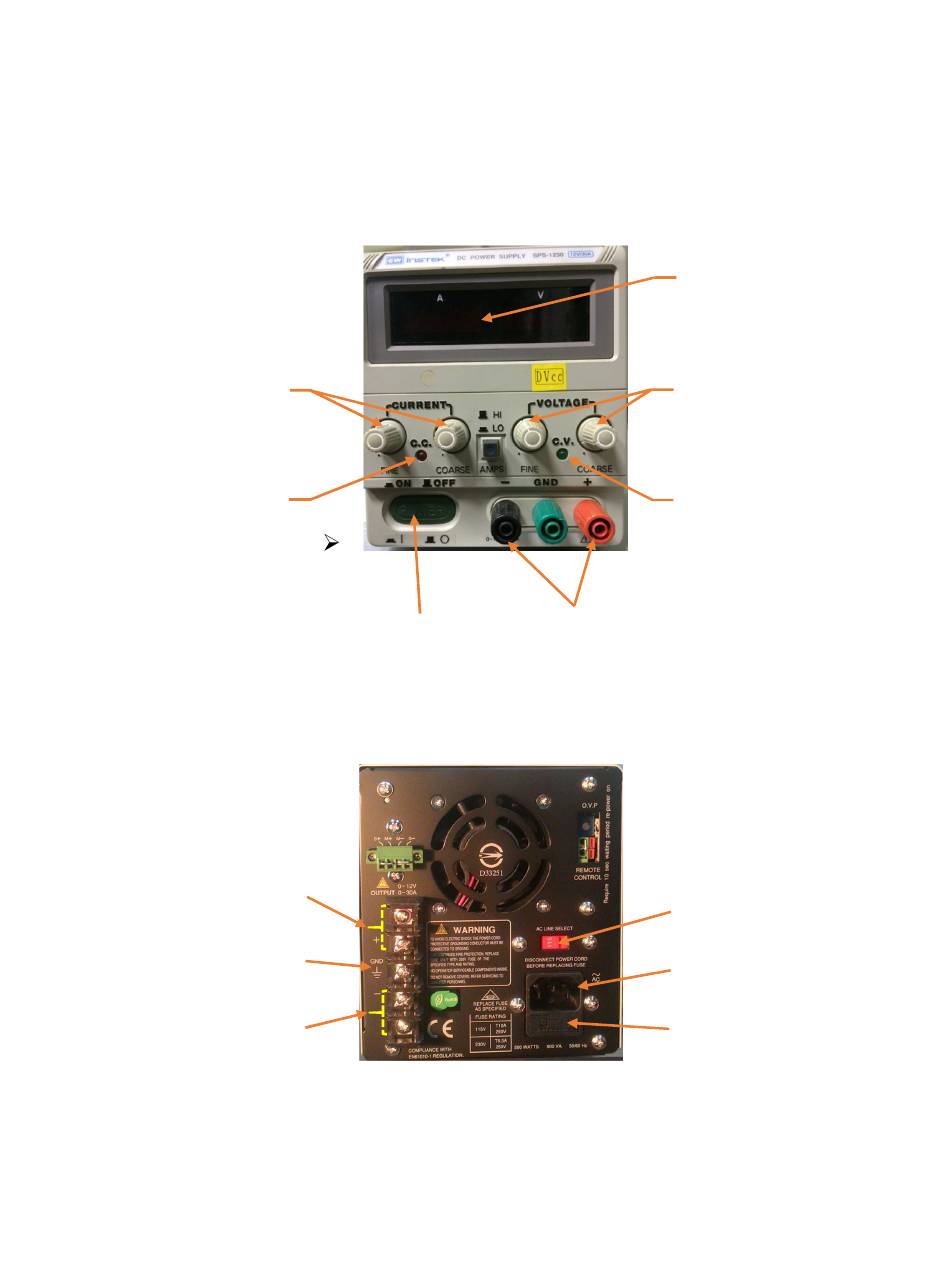

Fig. 1 Front panel

Fig. 2 Rear panel

Output value

indicator

Voltage knob

CV indicator

terminals

AC select switch

Power socket

Fuse holder
