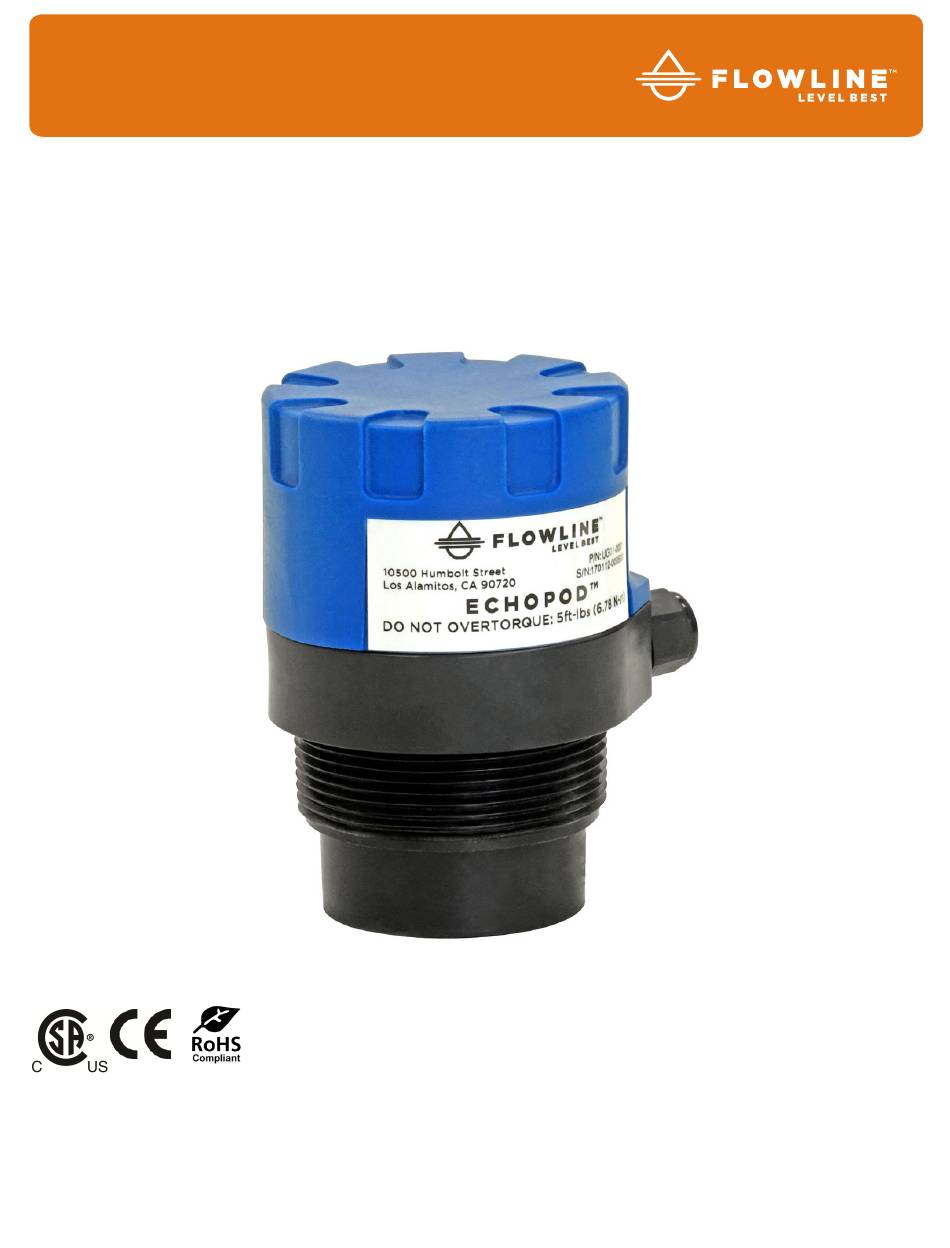

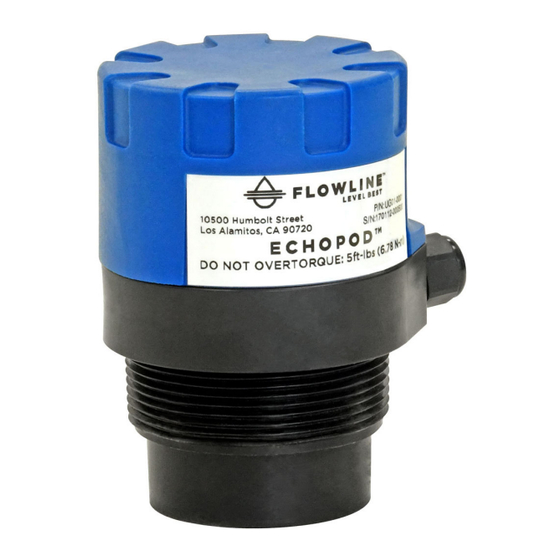

- Page 1 Ultrasonic Liquid Level Switch, Controller & Transmitter UG01 & UG03 Series Quick Start ©2018 Flowline, Inc. All Rights Reserved Made in USA Flowline, Inc. | 10500 Humbolt Street, Los Alamitos, CA 90720 p 562.598.3015 f 562.431.8507 w flowline.com QS310125 Rev A2...
- Page 2 If you have a non-standard installation or setup requirement that is not addressed ® here, please refer to the EchoPod Manual or other support documentation located at flowline.com. WE DO YOUR LEVEL BEST ® Thank you for purchasing EchoPod .
-
Page 3: Step 2: Connect The Usb
PC. ® STEP 1: INSTALL WEBCAL SOFTWARE ® Download WebCal software from www.flowline.com/webcal-software onto a PC with the following minimum specifications: ® ® Windows 2000/XP/Vista/7/8/10, 32 or 64-bit system, 10 MB storage space, 256 MB RAM, 1 USB 2.0 port... -
Page 4: Step 4 - Sensor Configuration
STEP 4 - SENSOR CONFIGURATION Configures the relays in terms of pump/valve operations and level alarms as well as the setting fail-safe for relays and signal output. STEP 5 – DIMENSIONAL ENTRY Distance Mode (default): Output of sensor is based on the distance (height of liquid) in the tank. Any change in liquid level will reflect linearly to the current output. -
Page 5: Step 6 - Tank Level Confirmation
STEP 6 - TANK LEVEL CONFIRMATION Verify the Height Units, Sensor Height, Fill-Height, Relay Units & Relay Settings. All values were calculated and set in the previous Dimensional Entry window. Make any adjustments if required. QS310125 Rev A2... -
Page 6: Step 7 - Write To Unit
® * For complete information on the WebCal software, please refer to the WebCal manual located at flowline.com/webcal-software. Before configuration can be completed: You must click the Write to Unit button to save the settings to the unit. ... - Page 7 Diameter). LM52-2890 Installation in open tanks and sumps: Use Flowline's LM50-1001 side mount bracket. Note: The Side Mount Bracket (LM50 series) is not designed for use with stand pipes or as a method to secure stand pipes. There are too few threads to properly hold the sensor and the stand pipe.
- Page 8 IMPORTANT MOUNTING GUIDELINES 1. Never mount the sensor at an angle. 2. Liquid should never enter the dead band. 3. Mount sensor at least 2” from the side wall. 4. Never mount the sensor in a vacuum. 5. Do not obstruct the sensor’s beam width with objects underneath the sensor. 6.
-
Page 9: Wiring Echopod
® WIRING ECHOPOD After mounting the sensor, make the necessary electrical connections. A wiring diagram with specific ® recommendations for the sensor’s configuration can be printed from the WebCal program. A typical wiring diagram is shown on the next page. UG01 &... -
Page 10: General Notes For Electrical Connections, Usage And Safety
® WIRING ECHOPOD Sample Wiring Diagram Diagram will change based upon the sensor’s configuration, use ® WebCal to view appropriate wiring diagram. Typical wiring diagram shown. Diagrams will change based upon your exact sensor series and configuration. Print and use the appropriate ® wiring diagram in WebCal GENERAL NOTES FOR ELECTRICAL CONNECTIONS, USAGE AND SAFETY: ... - Page 11 COMMON WIRING TO DISPLAY, CONTROLLERS & PLC’S DataView™ LI55 Series DataLoop™ LI23 Series Level Controller Level Indicator w/o Backlight Generic Loop Powered Display Generic PLC QS310125 Rev A2...
-
Page 12: Warranty
PERSON IS AUTHORIZED TO MAKE ANY OTHER WARRANTIES OR REPRESENTATIONS ON BEHALF OF FLOWLINE. This warranty will be interpreted pursuant to the laws of the State of California. If any portion of this warranty is held to be invalid or unenforceable for any reason, such finding will not invalidate any other provision of this warranty.
