READ FIRST ABOUT BATTERY OPERATIONS!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
•ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
•FOR LONG TERM STORAGE (OVER 1 MONTH) WE RECOM-
MEND DISCONNECTING THE SLA BATTERIES TO AVOID
GRADUAL, CONTINUOUS DISCHARGE.
•ALWAYS STORE SLA BATTERIES IN A CHARGED CONDITION
WHEN REMOVED FROM SERVICE.
•NEVER LET THE BATTERY VOLTAGE DROP BELOW 10V.
•FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
•AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE WILL
CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
•AVOID OPERATING SLA BATTERIES AT ELEVATED AMBIENT
TEMPERATURES.
•BATT STAT INDICATOR - RED = NO BATTERY POWER,
YELLOW = 1 HOUR LEFT. CHARGE BATTERY OVERNIGHT
FOR BEST RESULTS.
Thank you for choosing the SW800 PA System from Am-
pliVox Portable Sound Systems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of an-
other quality product from AmpliVox Portable Sound Sys-
tems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn
more about the complete line of AmpliVox audio visual
products, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide

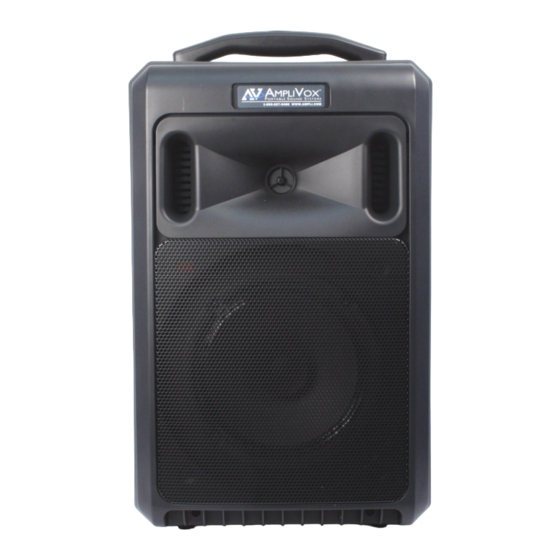

SW800 with Bluetooth
Battery Powered PA System
TABLE OF CONTENTS
GETTING STARTED/QUICK SETUP.................................... 3
CONTROLS / BACK PANEL .............................................. 4
AUDIO FUNCTIONS & ADJUSTMENT................................ 5
UHF WIRELESS BODYPACK .............................................. 5
WIRELESS HANDHELD MICROPHONE ............................. 6
BLUETOOTH MODULE ....................................................... 6
CD / MEDIA PLAYER ......................................................... 7
REMOTE CONTROL ...................................................... 8
TROUBLESHOOTING ........................................................ 9
WARRANTY ..................................................................... 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AmpliVox SW800L
Summary of Contents for AmpliVox SW800L
-
Page 1: Table Of Contents
WARRANTY …………............10 more about the complete line of AmpliVox audio visual products, including portable PA systems, and lecterns. AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com... - Page 2 IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at- tempt to modify the device in anyway.
-
Page 3: Getting Started/Quick Setup
Getting Started/Quick Setup 1. Power unit on with rocker switch. 2. The WIRELESS RECEIVER has its own POWER / VOLUME Control. Turn Receiver Power On. A Frequency Channel will appear in the Channel Display. Press UP/DOWN Buttons to select a channel. Channel number must match channel num- ber on wireless transmitter. -
Page 4: Controls / Back Panel
If after replacing fuse, the SW800 does not “power on”, please switch in the “off” position. call AmpliVox Customer Service at 800-267-5486. THE SW800 MUST BE PLUGGED IN AND CHARGING WHEN NOT WARNING! RISK OF SHOCK! DO NOT OPEN UNIT NO IN USE TO MAXIMIZE BATTERY LIFE. - Page 5 AUDIO FUNCTIONS 3 MASTER AUDIO CONTROLS: ECHO CONTROL: This is a sound effect feature that makes the audio signal sound as though it’s in a large area, such as a VOLUME: This is the master volume control for the system. large cathedral or a cave, by repeating the sounds that come BASS: This control cuts or boosts the bass level.
- Page 6 “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Amplivox Portable Sound Systems is under license. Other trade- marks and trade names are those of their respective owners.
- Page 7 COMPACT DISC / MEDIA PLAYER OPERATION FUNCTIONS · HANDLING THE DISCS: Always insert a CD, CD-R, CD-R/W · POWER: Press Power button to turn CD Player on. This knob increases into player with label side up! Proper handling and care of CDs should be taken to insure proper operation.
-
Page 8: Remote Control
REMOTE CONTROL The remote control for the SW800 is used only to operate the controls of the Media Player ONLY from the backside (control side). The remote control can be used up to 50 feet from player. Must be in direct line of sight for best results. PLAY / PAUSE - Press once to pause the POWER turns ON/OFF Media Player selection being played. -
Page 9: Troubleshooting
AC outlet for several hours. After a · year or two the battery may need to be replaced. Batter- Check battery terminals ies are available from Amplivox. · Check Fuse in Power Receptacle. Replace if needed. ·... -
Page 10: Warranty
To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
