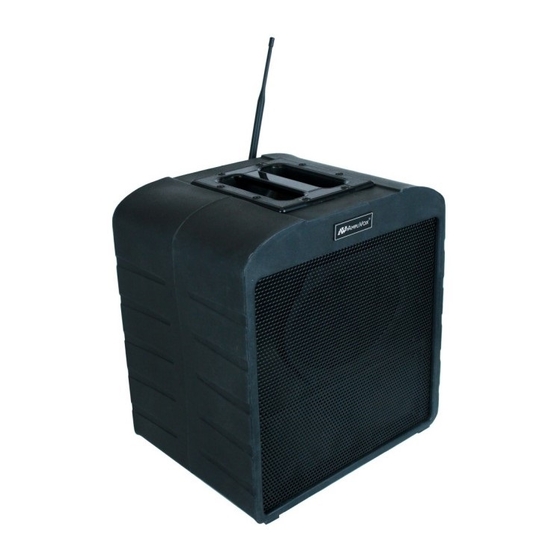

AmpliVox AirVox S690 User Manual

AmpliVox AirVox S690 User Manual

Battery powered pa system with bluetooth

Advertisement

Battery Powered PA System with
READ FIRST ABOUT BATTERY OPERATION!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
• ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
• FOR LONG TERM STORAGE (OVER 1 MONTH) WE
RECOMMEND DISCONNECTING THE SLA BATTERIES TO
AVOID GRADUAL, CONTINUOUS DISCHARGE.
• ALWAYS STORE SLA BATTERIES IN A CHARGED
CONDITION WHEN REMOVED FROM SERVICE.
• FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
• AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE
WILL CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
• AVOID OPERATING SLA BATTERIES AT ELEVATED
AMBIENT TEMPERATURES.
• BATTERY STATUS INDICATOR - RED = NO BATTERY POW-
ER, YELLOW / ORANGE= ABOUT 4 HOURS LEFT. CHARGE
BATTERY OVERNIGHT FOR BEST RESULTS.
Thank you for choosing one of the AirVox Series PA Sys-
tems with
from AmpliVox Portable Sound Sys-
tems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of another
quality product from AmpliVox Portable Sound Systems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to re-
ceive our newsletter, download our catalog, and learn more
about the complete line of AmpliVox audio visual products,
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by AmpliVox Portable
Sound Systems is under license.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
AirVox
S690 / SW690 / SW695

TABLE OF CONTENTS

SAFETY INSTRUCTIONS ................................................. 2
WHAT'S IN THE BOX ....................................................... 3
SPECIFICATIONS ............................................................ 3
BACK PANEL / AUDIO CONTROLS .................................... 4
WIRELESS RECEIVER .................................................... 5
WIRELESS HANDHELD MICROPHONE ......................... 5
BLUETOOTH ..................................................................... 6
BATTERY COMPARTMENT ............................................. 7
SPEAKER STAND MOUNT .......................................... 8
WIRELESS SPEAKER TRANSMITTER .......................... 9
TROUBLESHOOTING / SERVICING ................................ 10
WARRANTY ..................................................................... 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirVox S690 and is the answer not in the manual?

Questions and answers

Summary of Contents for AmpliVox AirVox S690

  • Page 1: Table Of Contents

    The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by AmpliVox Portable WARRANTY …..............11 Sound Systems is under license. AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...
  • Page 2: Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Cleaning When cleaning the device, please use a soft, dry cloth. Never use benzene, paint-thinner, or other chemicals on the device Location Place the device in stable location, so it will not fall causing damage to the device or bodily harm.
  • Page 3: What's In The Box

    WHAT’S IN THE BOX SW690 Model Shown SW695 S690 SW690 AirVox PA AirVox PA • • AirVox PA 16 Channel Wireless Wired Handheld Micro- • • • phone (not shown) 16 Channel Wireless • Receiver Receiver Universal Power Sup- • Wireless Handheld •...
  • Page 4: Back Panel / Audio Controls

    BACK PANEL UHF ANTENNA CONNECTOR QUICK SET-UP GUIDE Instructions, when this manual cannot be found. 16 CHANNEL DIGITAL AUDIO CONTROLS WIRELESS RECEIVER BLUETOOTH AUDIO CONTROLS POWER SWITCH B : Press to turn ON. Power LED and • Battery Status Meter H will light. •...
  • Page 5: Wireless Receiver

    -10 dB position. Adjust to prevent distortion while speaking. WIRELESS HANDHELD MICROPHONE - MODEL SW695 ONLY If you are using the AmpliVox S1695 Wireless Handheld Microphone Transmitter, screw off the lower bottom section of microphone and insert 2 - "AA" 1.5 Volt alkaline batteries.
  • Page 6: Bluetooth

    10 minutes. If no signal is found, this function will shut off. During the search function turn on your Bluetooth device for pairing. On your Bluetooth menu of your device, choose AmpliVox, AmpliVox S1500 or use pin code 0000. Once paired, red LED will stay on. •...
  • Page 7: Battery Compartment

    BATTERY COMPARTMENT BATTERY REPLACEMENT The AmpliVox AirVox has two (2) SLA (Sealed Lead Acid) batteries located at the front behind the metal plate that is behind the grille. To remove grille, take a paper clip and hook it thru a hole and pull until grille releases. (Fig. 1).
  • Page 8: Speaker Stand Mount

    Your AirVox has a built-in 1 3/8" (35mm) dia. pole mount for mounting on standard speaker tripods (AmpliVox Model S1080, S1090 or tripod package S1085).
  • Page 9: Wireless Speaker Transmitter

    WIRELESS SPEAKER TRANSMITTER S1692T (OPTIONAL EQUIPMENT) OPERATES ON DIFFERENT FREQUENCIES THAN AMPLIVOX WIRELESS MICROPHONE / RECEIVER 16 CH UHF WIRELESS SPEAKER TRANSMITTER Must be installed into S690 / SW690 / SW695 FEATURES • Channel Display (A) • TX - Radio Frequency Indicator (B) lights when turned on •...
  • Page 10: Troubleshooting / Servicing

    AC outlet for several hours. After a UNIT OPERATES ON AC BUT NOT BATTERY year or two the battery may need to be replaced. Bat- • Charge battery teries are available from AmpliVox. • Replace battery If you need further assistance, please call SOUND IS MUFFLED 1-800-267-5486, 8am-6pm M-F CST •...
  • Page 11: Warranty

    To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Repair Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
  • Page 12 NOTES AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com FEB, 2018...

This manual is also suitable for:

Airvox sw690Airvox sw695
