READ FIRST ABOUT BATTERY OPERATIONS!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
•ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
•FOR LONG TERM STORAGE (OVER 1 MONTH) WE RECOM-
MEND DISCONNECTING THE SLA BATTERIES TO AVOID
GRADUAL, CONTINUOUS DISCHARGE.
•ALWAYS STORE SLA BATTERIES IN A CHARGED CONDITION
WHEN REMOVED FROM SERVICE.
•NEVER LET THE BATTERY VOLTAGE DROP BELOW 10V.
•FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
•AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE WILL
CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
•AVOID OPERATING SLA BATTERIES AT ELEVATED AMBIENT
TEMPERATURES.
•BATT STAT INDICATOR - RED = NO BATTERY POWER,
YELLOW = 1 HOUR LEFT. CHARGE BATTERY OVERNIGHT
FOR BEST RESULTS.
Thank you for choosing the SW800 PA System from
AmpliVox Portable Sound Systems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer
to this user guide as you enjoy the unique capabilities of
another quality product from AmpliVox Portable Sound
Systems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn
more about the complete line of AmpliVox audio visual
products, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide

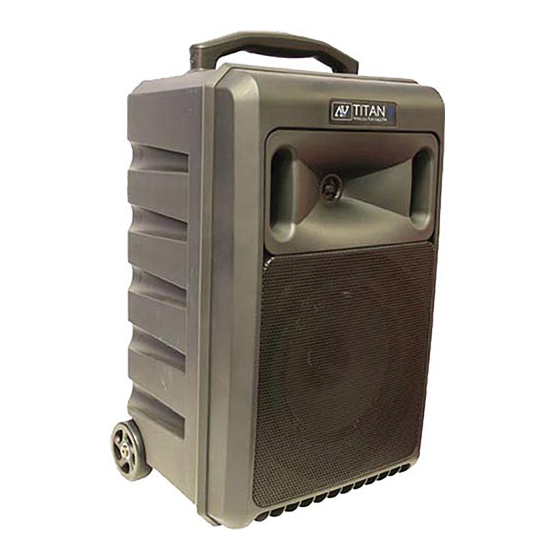

SW800 with Bluetooth
Battery Powered PA System

TABLE OF CONTENTS

CONTROLS / BACK PANEL ..............................................
OPERATION ............................................................
AUDIO FUNCTIONS & ADJUSTMENT...........................
WIRELESS HANDHELD MICROPHONE........................
CD / MEDIA PLAYER .........................................................
REMOTE CONTROL ......................................................
BLUETOOTH MODULE ......................................................
TROUBLESHOOTING ........................................................
WARRANTY ......................................................................
3
4
4
5
5
6
6
7
7
8
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AmpliVox SW800

  • Page 1 AmpliVox audio visual TROUBLESHOOTING ............products, including portable PA systems, and lecterns. WARRANTY …………............AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at- tempt to modify the device in anyway.
  • Page 3: Getting Started / Quick Setup

    1 year Limited Warranty; UHF 584 - 608 MHz Remote Control, Wireless Bluetooth: A2DP Version 3.0 Microphones, Wireless Receiver, Microphone Input: XLR /1/4" combo connector Bluetooth Module, CD / Media Player, Rechargeable SLA Batteries. Wired Microphone: AmpliVox or other compatible brands...
  • Page 4: Controls / Back Panel

    System Protection Fuse. Unscrew cap to check. The batteries will charge when unit is operating with AC power, If after replacing fuse, the SW800 does not “power on”, please HOWEVER the unit will charge faster with the power switch in call AmpliVox Customer Service at 800-267-5486.
  • Page 5 TREBLE: This control cuts or boosts the treble level. such as a large cathedral or a cave, by repeating the sounds that come into the SW800 through the microphones or any of MICROPHONE / VOICE PRIORITY SWITCH: When turned the accessories. The listener will hear the original sound, plus "ON"...
  • Page 6: Wireless Handheld Microphone

    WIRELESS HANDHELD MICROPHONE TRANSMITTER If you are using the AmpliVox S1695 Wireless Handheld Microphone Transmitter, screw off the lower bottom section of microphone and insert 2 - "AA" 1.5 Volt alkaline batteries. · IMPORTANT: Because the microphone has an AUTO SYNC function, you first select channel you wish to use on the receiver.
  • Page 7: Cd / Media Player

    “discover” mode. You will see a list of devices. control. Choose “AmpliVox” or “AmpliVox S1500”. The Bluetooth® word mark and logo is a registered trademark owned by Bluetooth SIG, Inc. and any use of such marks by AmpliVox Portable Sound Systems is under license.
  • Page 8: Troubleshooting

    This warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or otherwise transferred to another party. The warranty pro- vided by AmpliVox in this statement applies only to products purchased for use, and not for resale. It does not apply to open box purchases, which are sold “as is” and without any war- ranty.
