SW925-96 DIGITAL AUDIO TRAVEL PARTNER PLUS
READ FIRST ABOUT BATTERY OPERATION!
BY OBSERVING A FEW SIMPLE RULES, YOU CAN EXTEND THE
LIFESPAN OF THE SEALED LEAD ACID (SLA) BATTERIES THAT
OPERATE YOUR AMPLIVOX BATTERY POWERED PORTABLE
PA SYSTEM OR ACCESSORY:
• ALWAYS KEEP YOUR AMPLIVOX PORTABLE PA SYSTEM
PLUGGED IN AND CHARGING WHEN NOT IN USE.
• FOR LONG TERM STORAGE (OVER 1 MONTH) WE
RECOMMEND DISCONNECTING THE SLA BATTERIES TO
AVOID GRADUAL, CONTINUOUS DISCHARGE.
• ALWAYS STORE SLA BATTERIES IN A CHARGED
CONDITION WHEN REMOVED FROM SERVICE.
• NEVER LET THE BATTERY VOLTAGE DROP BELOW 10V.
• FOR SLA BATTERIES IN STORAGE, APPLY A TOPPING
CHARGE EVERY SIX MONTHS.
• AVOID REPEATED DEEP DISCHARGES. THIS PRACTICE
WILL CUT THE LIFE OF THE BATTERY SIGNIFICANTLY.
• AVOID OPERATING SLA BATTERIES AT ELEVATED
AMBIENT TEMPERATURES.
• BATTERY STATUS INDICATOR - RED = NO BATTERY POW-
ER, YELLOW = ABOUT 3 HOURS LEFT. CHARGE BATTERY
OVERNIGHT FOR BEST RESULTS.
Thank you for choosing the SW925-96 Digital Audio
Travel Partner Plus PA System from AmpliVox Port-
able Sound Systems.
We are excited in introducing this truly unique system.
Our system combines flexibility with functionality.
Please refer to this user guide as you enjoy the
unique capabilities of another quality product from
AmpliVox Portable Sound Systems.
We encourage you to visit our website
www.ampli.com to register your product for its war-
ranty coverage, sign up to receive our newsletter,
download our catalog, and learn more about the com-
plete line of AmpliVox audio visual products, including
portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
User Guide
Battery Powered PA System

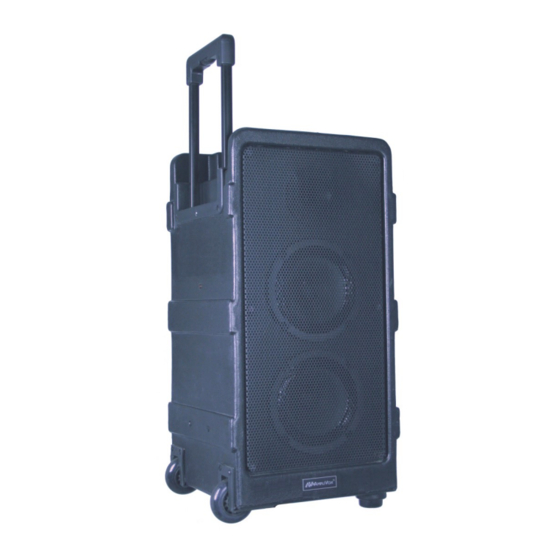

Photo may appear different then your actual unit.
TABLE OF CONTENTS
GETTING STARTED/QUICK SETUP............. 3
CONTROL / BACK PANEL ........................... 4
MEDIA PLAYER ...................................... 5
AUDIO FUNCTIONS ................................. 5
WIRELESS RECEIVER / TRANSMITTER...... 6
WIRELESS HANDHELD MICROPHONE....... 7
WIRELESS SPEAKER TRANSMITTER....... 8
OPTIONAL COMPACT DISC .................... 9
OPTIONAL ACCESSORIES ................... 10
TROUBLESHOOTING.................................. 10
WARRANTY...........................................11
Advertisement
Table of Contents
Related Manuals for AmpliVox SW925-96 DIGITAL AUDIO TRAVEL PARTNER PLUS
Summary of Contents for AmpliVox SW925-96 DIGITAL AUDIO TRAVEL PARTNER PLUS
-
Page 1: Table Of Contents
AmpliVox audio visual products, including WARRANTY…………………………………….11 portable PA systems, and lecterns. AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com... - Page 2 IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not attempt to modify the device in anyway.
-
Page 3: Getting Started/Quick Setup
Getting Started/Quick Setup (Also Printed on Battery Cover) • POWER - Push POWER switch (lower left) to ON, Switch lights up. All accessories have separate ON / OFF power switches. • MEDIA PLAYER - Turn ON / OFF switch to the right of media player to turn on. -
Page 4: Control / Back Panel
The yellow/orange CHARGE If after replacing the fuse, the SW925-96 does not LED will be illuminated indicating battery is charging. The ““power on”, please call AmpliVox Customer Service at batteries will charge when unit is operating with AC power, 800-267-5486. -
Page 5: Media Player
It can be AUDIO SETTINGS selected on the SW925-96. been provided to help maintain your battery in a cell phone, used to drive an external recording device or AmpliVox tablet or computer while in use with the PA speaker. S1297-76 Powered Speaker. -
Page 6: Wireless Receiver / Transmitter
96 CHANNEL UHF WIRELESS WIRELESS RECEIVER PANEL • Channel Sync (D) • Channel Display (A) • AF - Audio Frequency Indicator (E) • Select Buttons - • RX - Radio Frequency Indicator (F) Manual Channel Selection (B) • Antenna Indicator (G) •... -
Page 7: Wireless Handheld Microphone
WIRELESS HANDHELD MICROPHONE Latch Latch • Antenna Cap (W) • Frequency Set Button (R) • Sensitivity / Mute Switch (X) • Channel Display / Battery Meter (S) • Battery Cover (Y) • Select Buttons - Manual Channel Selection (T) • Power Indicator (U) •... -
Page 8: Wireless Speaker Transmitter
WIRELESS SPEAKER TRANSMITTER S1692T (OPTIONALEQUIPMENT) OPERATES ON DIFFERENT FREQUENCIES THAN AMPLIVOX WIRELESS MICROPHONE / RECEIVER 96 CH UHF WIRELESS SPEAKER TRANSMITTER (SW925-96) FEATURES • Channel Display (A) Frequency: 514 - 544 MHz • Select Buttons - Manual Channel Selection (B) Up / Down •... -
Page 9: Optional Compact Disc
SW925-96 - OPTIONAL COMPACT DISC / MEDIA PLAYER OPERATION When inserting or removing the disk from CD player, it is necessary to let CD player insert disk and eject automatically. Damage to CD player may happen by pushing or pulling out the disk by hand while disc is inserted or being ejected. FUNCTIONS •... -
Page 10: Optional Accessories
• • Check battery terminals. If using wireless, be sure receiver(s) and/or be replaced. Batteries are available transmitter battery is installed and/or is on. from Amplivox. SOUND IS DISTORTED • • If using “line insert”, loop must be completed. •... -
Page 11: Warranty
To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiv- ing a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection.
