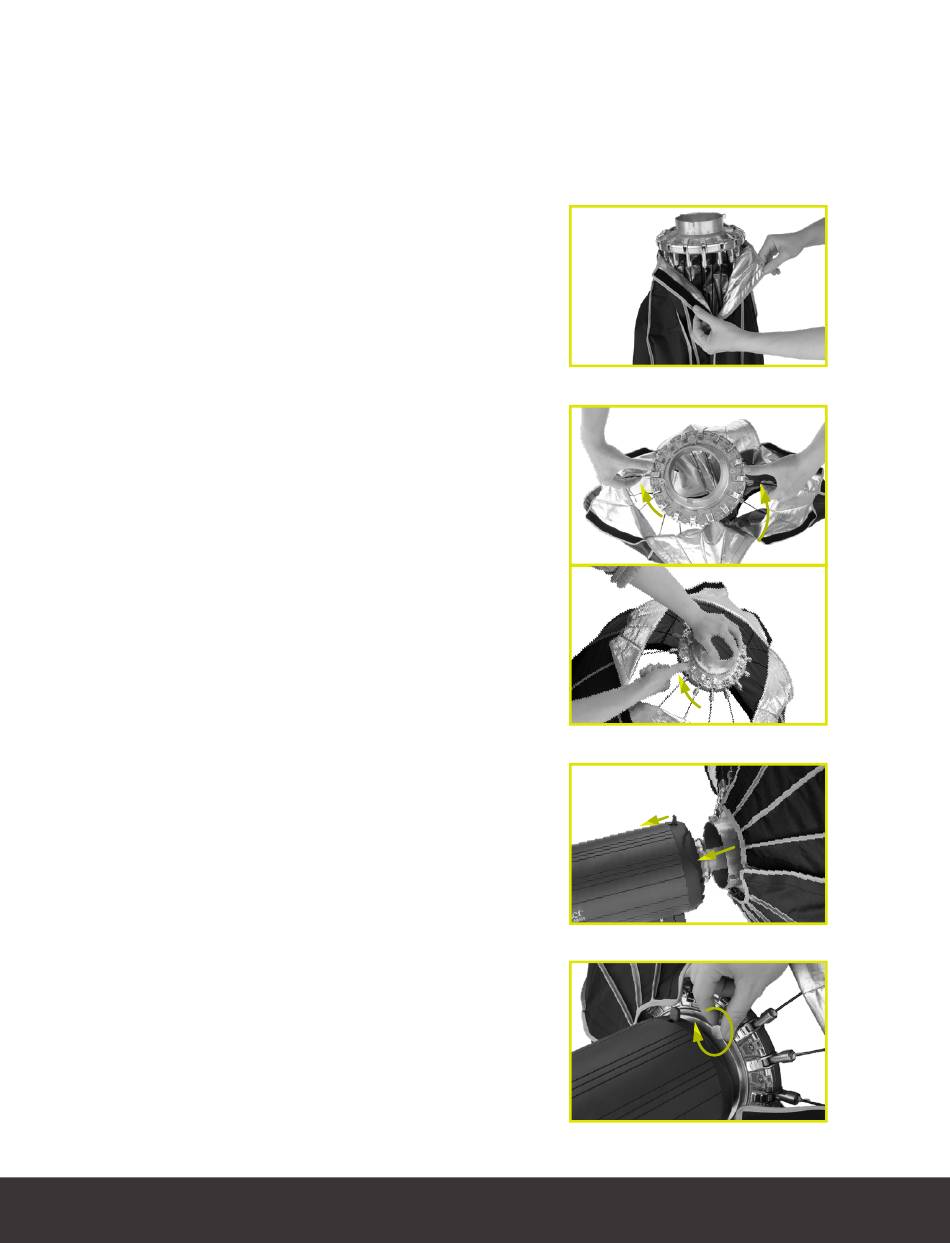

Setting Up the Softbox
1. Set the softbox facedown on a flat and
stable surface.
2. Open the softbox vents so you can securely
grip each rod.
3. QO-DP26-V2, QO-DP36-V2, and
QO-DP-48-V2: Locking opposing rods
will keep even pressure on the fabric.
Use both hands to lift opposing support
rods until they click in place.
QO-DP60-V2: Locking four opposing
rods will make it easier to lift and lock
the remaining rods. Use one hand to
grip a rod, and your other hand to brace
the mount. Lift four opposing rods
until they click in place. Then lock the
remaining rods.
4. Once all the rods are locked in place,
insert the Bowens speed ring into the
Bowens mount of your monolight, and
rotate until it locks.
5. Rotate the softbox to the preferred
orientation. Lock it in place by tightening
the thumbscrew.
6. Close the vents to prevent light leaks.
