Summary of Contents for Angler Circo CI-LR21
- Page 1 circo 19 " led ring light CI-LR21 INSTRUCTIONS...

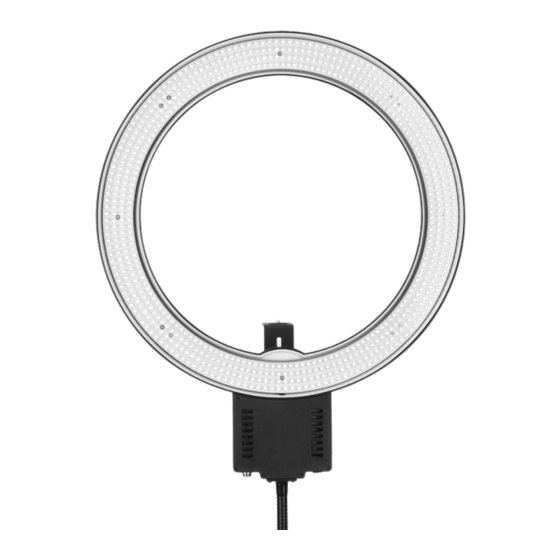

- Page 2 Introduction Congratulations on purchasing the Angler Circo 19" LED ring light. The Angler Circo CI-LR21 is a compact, lightweight, and portable way to light your subject. It provides 360 degrees of even illumination, ideal for enhancing facial features. It’s a great fit for fashion and beauty photography and when used in combination with its removable diffuser, which provides softer lighting.
- Page 3 To prolong the life of the unit, turn the power off and unplug the light when it is not in use. Do not attempt to disassemble or repair this product. There are components inside that can produce a hazardous electric shock. Keep this product away from water and any flammable gases or liquids.
- Page 4 LED array Front Back Dimming knob Power switch DC input Phillips-head screws Also included: Carrying case User manual...
- Page 5 Removable diffuser Diffuser clips AC power supply 1/4"-20 AC power cord camera set screw DC barrel connector Height adjustment Flexible thumbscrews stand adapter Camera bracket Locking 5/8" knob receiver...
- Page 6 Attaching the Camera Bracket The adjustable camera bracket attaches your camera to the ring light for tripod-mounted shooting. It connects to the bottom of the LED array via two Phillips-head screws. Use a Phillips screwdriver (not included) to remove the screws from the bottom of the LED array.
- Page 7 5. If necessary, use the two thumbscrews on the back of the camera bracket to adjust the bracket’s height. 6. For tripod-mounted shooting, use the socket in the 1/4"-20 set screw to mount the assembly to your tripod. Make sure the assembly is securely mounted to the tripod.
- Page 8 Attaching the Flexible Stand Adapter The flexible stand adapter incorporates a gooseneck and 5/8" receiver to mount the ring light on a light stand for easy off- camera positioning. Like the camera bracket, it connects to the bottom of the LED array via two Phillips-head screws.
- Page 9 Powering and Dimming the LED The power supply is rated for multivoltage use at a range of 100–240 V and 50/60 Hz. Before connecting, make sure the array’s power switch is set to Off. Connect the AC cord to the AC input on the DC barrel connector.
-
Page 10: Specifications
SPECIFICATIONS LED count 5500 K Color temperature Dimming range 0%–100% 2 lb. (0.9 kg) Camera weight rating 100–240 V AC at 50/60 AC power supply Hz; conversion to DC 14.8–15 V, 1.5 A 23" × 19" × 1.75" Dimensions (H × W × D) (58.4 ×... -
Page 11: One-Year Limited Warranty
One-Year Limited Warranty This Angler product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. - Page 12 ANGLER A Gradus Group Brand...
