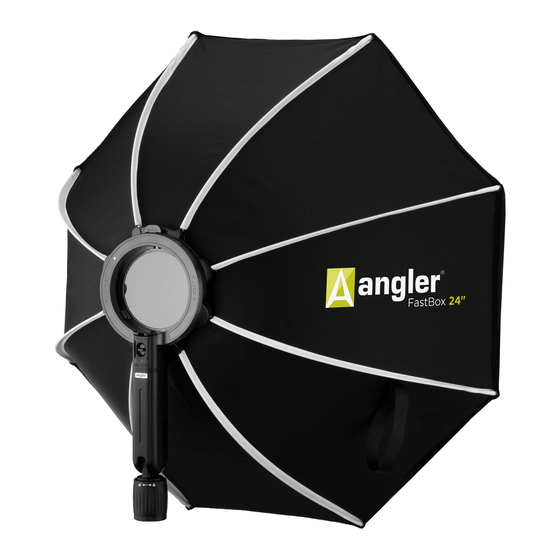

- Page 1 Octagonal Softboxes FB-20K FB-24K FastBox Series INSTRUCTIONS...
- Page 2 Thank you for choosing Angler. The FastBox adds speed and flexibility to your lighting setup. Spring- loaded tension arms make expanding and collapsing the FastBox a breeze. Simply pull back, lock it in place, and you’re ready. Attaching and positioning the FastBox is easy. Mount it onto your light stand with the twist lock, and set the ideal lighting angle with the pistol- grip tilt mechanism.
- Page 3 Precautions Please read and follow the instructions, and keep this manual in a safe place. Make sure this product is intact and that there are no missing parts. Use caution when expanding and collapsing this product. Clean with only a dry, soft cloth. All images are for illustrative purposes only.
- Page 4 Overview Softbox Touch- Softbox tab fastener strip Release latch Flash adapter alignment dot Flash adapter release latch Pistol grip Twist lock Twist-lock socket Carrying case...
- Page 5 Setting Up the FastBox Opening the FastBox Hold the pistol grip with one hand, and pull the softbox tab up to the built-in speed-ring until it clicks in place. Mounting the FastBox on a Light Stand Fit the twist lock socket onto the spigot of your light stand.
- Page 6 Adjusting the Tilt Angle Squeeze and hold the pistol grip to adjust the angle of the FastBox, and release to lock in place. Collapsing the FastBox Slide the release latch to the left to collapse the FastBox.
- Page 7 Attaching the Flash Adapter and Flash See your Flash Adapter manual for full instructions. Attach the flash adapter to the FastBox. Insert your flash into the adapter.
- Page 8 One-Year Limited Warranty This Angler product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s...
