Summary of Contents for Salus RT310iSPE
- Page 1 Model: RT310i Smartphone Controlled Thermostat Installation Manual...
-
Page 2: Table Of Contents
Contents Product Compliance ....................3 Safety Information ....................3 Introduction ........................4 Overview ........................5 Box contents ......................... 5 Features ........................... 5 Connecting the RXRT510 receiver ..............6 Installation ........................6 RT310i thermostat ..................... 7 Connecting the iTG310 Gateway ..............7 Test Pairing Function .................... -
Page 3: Product Compliance
Product Compliance This product complies with the essential requirements and other relevant provisions of the following EU Directives: 2014/30/EU, 2014/35/EU, 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. Safety Information Use in accordance with the EU and national regulations. -
Page 4: Introduction

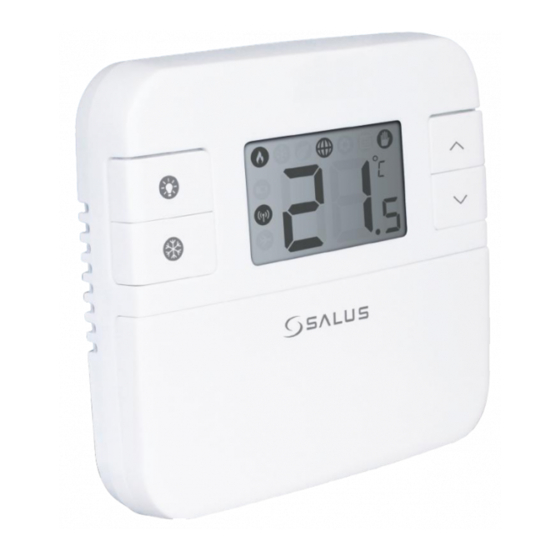

The SALUS RT310i is a Smart phone controlled programmable thermostat. The RT310i thermostat will switch your heating system on or off, as needed, in accordance with the temperature set by you, locally on the device or remotely using the dedicated app. -
Page 5: Overview
Overview The RT310i is a stylish thermostat with easy readable LCD and a user-friendly interface. The Receiver is used for wiring connections and heat on/off control. The thermostat provides the user interface and temperature sensing / control. The two units are linked together by a Radio Frequency (RF) signal. The Gateway has a futuristic design and helps connect your devices to the Internet, so that they can be controlled over the RT310i App on your smart-phone. -
Page 6: Connecting The Rxrt510 Receiver
Connecting the RXRT510 receiver Unscrew the backplate of the RXRT510 receiver in order to do the wiring connections. After that please switch the receiver ON. AUTO MANUAL Terminal Description Receiver Terminals Switch Terminal Common Switch Terminal Mains Live (230VAC) Mains Neutral Wiring Electrical diagram Wall mounting... -
Page 7: Rt310I Thermostat
RT310i thermostat Before inserting the batteries, please make a note of your SRT number and register your device on the App. SRT00000000 - 00 S R T Connecting the iTG310 Gateway Plug in your gateway and attach the Ethernet cable and plug in into your router. The Led on the gateway will flash red 3 times, then it should be steady green. -
Page 8: Registration
Registration Download the RT310i App and create an account to start controlling your thermostat via the App. Please follow the steps below. Enter name and Tap register to create Enter email and Enter the code you Enter the SRT device address and tap Next a new account password, tap Next... -
Page 9: Button Functions And Keys
Button functions and keys There are few user controls for the RT310i, making this thermostat very easy to operate. These controls are shown below, along with a description of each of their functions. The temperature displayed on the LCD is the current room temperature. -
Page 10: Lcd And App Icons
LCD and App icons Manual Override Heating Mode On (Permanent/Temporary override) ON when battery is weak Cooling Mode On before battery life end ON when thermostat is connected ON during RF signal to the ITG310 gateway transmission to RX boiler Frost Protection On Holiday Mode On Schedule Mode On... -
Page 11: Operations
Operations Temperature, clock, time format When you first enter the application, your home screen will display the room temperature, the set temperature (it will operate based on the default set schedule). the thermostat will be operating in schedule mode. You can easily control your thermostat using the application. -
Page 12: Heat/Cool Mode
Heat/Cool Mode You can ONLY shuffle between heat/cool mode from the App. If you want to choose a temperature that is higher than the current room temperature, make sure the thermostat is running in heat mode. If you want to set a temperature that is lower than the current room temperature, make sure you switch to cool mode. - Page 13 Changing to Heat Mode Tap menu icon Go to settings Select Heat Mode Tap Save TESTING/PAIRING TESTING/PAIRING Using the cursor, set The antenna icon appears The Flame icon will The heat mode icon the temperature on the LCD - command turn orange and will appear on the LCD, received...
-
Page 14: Setting Schedules
Setting schedules You can switch from Manual Mode to Schedule Mode and start adjusting programs. That’s very easy to do and you need to follow the next steps. Note that there are 3 types of scheduling available, with 6 time intervals per day. •... -
Page 15: Temporary Or Permanent Override Program Mode
Temporary or Permanent Override program mode Temporary Override Normally thermostat is running in schedule mode. Manual and schedule mode can only be changed in the App In schedule mode , pressing UP or DOWN on the thermostat changes setpoint. This is Temporary Override. You can also change the temperature directly from the App. -
Page 16: Frost Protection
Frost Protection Press FROST button to activate Frost Protection. The Setpoint temperature is automatically set to frost setpoint to prevent pipes from frosting. If the room temperature is lower than the frost setpoint, frost protection will be enabled. Press FROST button again to de-activate Frost Protection. -
Page 17: Holiday Mode
Holiday Mode You can set your RT310i to holiday mode. Thermostat will be turned OFF during this mode and no commands will be sent to the heating unit. During this mode, the thermostat will run like in Frost Protection Mode. When activated, an airplane icon appears on the display of your device You can set Holiday mode from the App only. -
Page 18: Other Functions
Other functions LCD backlight • LCD backlight is activated when or any key is pressed. The backlight will be turned off in 15 seconds after all keys are released. • LCD backlight will not operate when battery is low. Low battery detection Battery voltage is checked every minute. -
Page 19: Operating In Offline Mode
Operating in Off-line Mode If the Internet connection is lost and the thermostat is not communicating with the App or with the gateway, it can still be operable in off-line mode. When in off-line mode: • The thermostat will follow the last set schedule •... -
Page 20: Factory Reset
Factory reset Remove the batteries without pressing any button. Wait 2 minutes and insert the batteries again. Via App Tap Yes Tap menu icon Go to Manage devices Tap delete After that you will need to add and set your thermostat all over again. 20 RT310i Installation Manual... -
Page 21: Technical Info
Technical info Product Specification Model: RT310iRF Type: Wireless Heating/Cooling Thermostat Frequency: 868MHz Temperature Scale: °C Range: 5.0°C - 35.0°C Resolution: 0.1/0.5°C and 0.5°C default Temperature Measurement Maximum +/-0.25°C at 20°C Accuracy: Display Range: 5.0°C - 35.0°C Display Resolution: 0.1/0.5°C and 0.5°C default Frost Protection Setting: 5 ºC... -
Page 22: Warranty
SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product. - Page 23 SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development, SALUS Controls plc reserves the right to change specification, design and materials of products listed in this brochure without prior notice. For the latest PFD Instruction Manual, go to www.salus-manuals.com...
