Trio MC508 Quick Connection Manual

Motion coordinator
Hide thumbs Also See for MC508:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

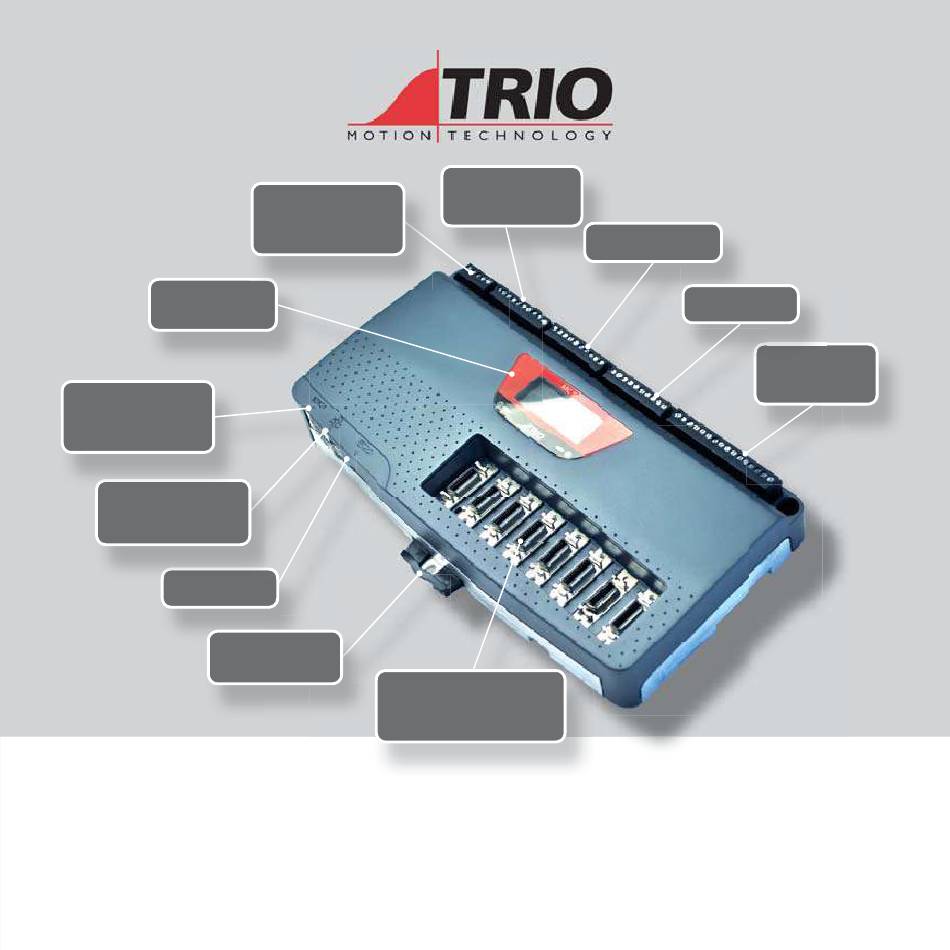

8 PNP or NPN inputs
including
8 registration inputs
CAN port for trio CAN i/o,
DEVICENET slave, canopen or
user programmable
8 PNP or NPN inputs
Backlit Display and
8 Digital Outputs
status LEDs
2 Analogue Inputs,
8 Digital Outputs,
WDOG relay
RS232 / RS485 Modbus-
rtu, hostlink or user
programmable
Ethernet programming,
Modbus-TCP , Ethernet IP , Trio
Activex, UNIPLAY HMI
Micro SD CARD
Panel Mount and DIN
Rail Mount
8 MDR Type Flexible Axis Connectors
Comprising; Encoder I/O or 2X Step
/ Dir Channels, Voltage Output, 2x
Limit Inputs, Enable Output
MOTION COORDINATOR
ON COORDINA
MC508
Quick Connection Guide
This guide must be used in conjunction with the Technical Reference Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MC508 and is the answer not in the manual?

Questions and answers

Related Manuals for Trio MC508

Summary of Contents for Trio MC508

  • Page 1 8 PNP or NPN inputs including 8 registration inputs CAN port for trio CAN i/o, DEVICENET slave, canopen or user programmable 8 PNP or NPN inputs Backlit Display and 8 Digital Outputs status LEDs 2 Analogue Inputs, 8 Digital Outputs,...
  • Page 2 Windows based PC that is fi tted with an Ethernet connection. The IP address is displayed on the MC508 display for a few seconds after power-up or when an Ethernet cable is plugged in. Ethernet cable must be CAT 5 or better.

  • Page 3: Serial Connections

    SERIAL CONNECTIONS Function Note RS485 Data In A Rx+ Serial Port #2 RS485 Data In B Rx- RS232 Transmit Serial Port #1 0V Serial RS232 Receive Serial Port #1 5V Output 150mA max RS485 Data Out Z Tx- Serial Port #2 RS485 Data Out Y Tx+ I/O CONNECTOR 1 Input...
  • Page 4 I/O CONNECTOR 2 PNP operation: Connect common to 0V. NPN operation: Connect common to 24V. 24V Pin I/O CONNECTOR 3 Optical Output Control Signal Protected Switch 24V Power / Outputs 8 - 15 I/O CONNECTOR 4 24V must be applied to power the outputs, analogue inputs and DAC outputs on the axis...

  • Page 5: Analogue Outputs

    THE AMPLIFIER ENABLE OUTPUT IS OPEN CIRCUIT Amplifi er 24V 0V Enable 1 Amplifi er Enable Enable 2 Trio Controller Servo Amplifi er Enable or Safety Relay ANALOGUE INPUT S ANALOGUE OUTPUTS AIN0: 0 TO 10V V OUT0 TO V OUT7...
  • Page 6 FLEXIBLE AXIS Incremental Pulse & Pulse & Absolute CONNECTOR Encoder Direction Direction Encoder Function Function Function Function (P849 ONLY) Enc A(n) Pulse(n) Pulse(n) Clock(n) Enc /A(n) /Pulse(n) /Pulse(n) /Clock(n) Enc B(n) Dir(n) Dir(n) Enco /B(n) /Dir(n) /Dir(n) +5V Enc (100mA max.) Do not connect WDOG(n)+ WDOG(n)-...

  • Page 7: Lcd Display

    Display with WDOG on ENABLE The IP address and subnet mask of the MC508 is shown on the LCD display for a few seconds after power-up. The factory default IP address is 192.168.0.250. This can be changed using the ETHERNET or the IP _ ADDRESS command via Motion Perfect.
  • Page 8 UK | USA | CHINA | INDIA WWW.TRIOMOTION.COM T H E M O T I O N S P E C I A L I S T quick start v1-January 2016...
