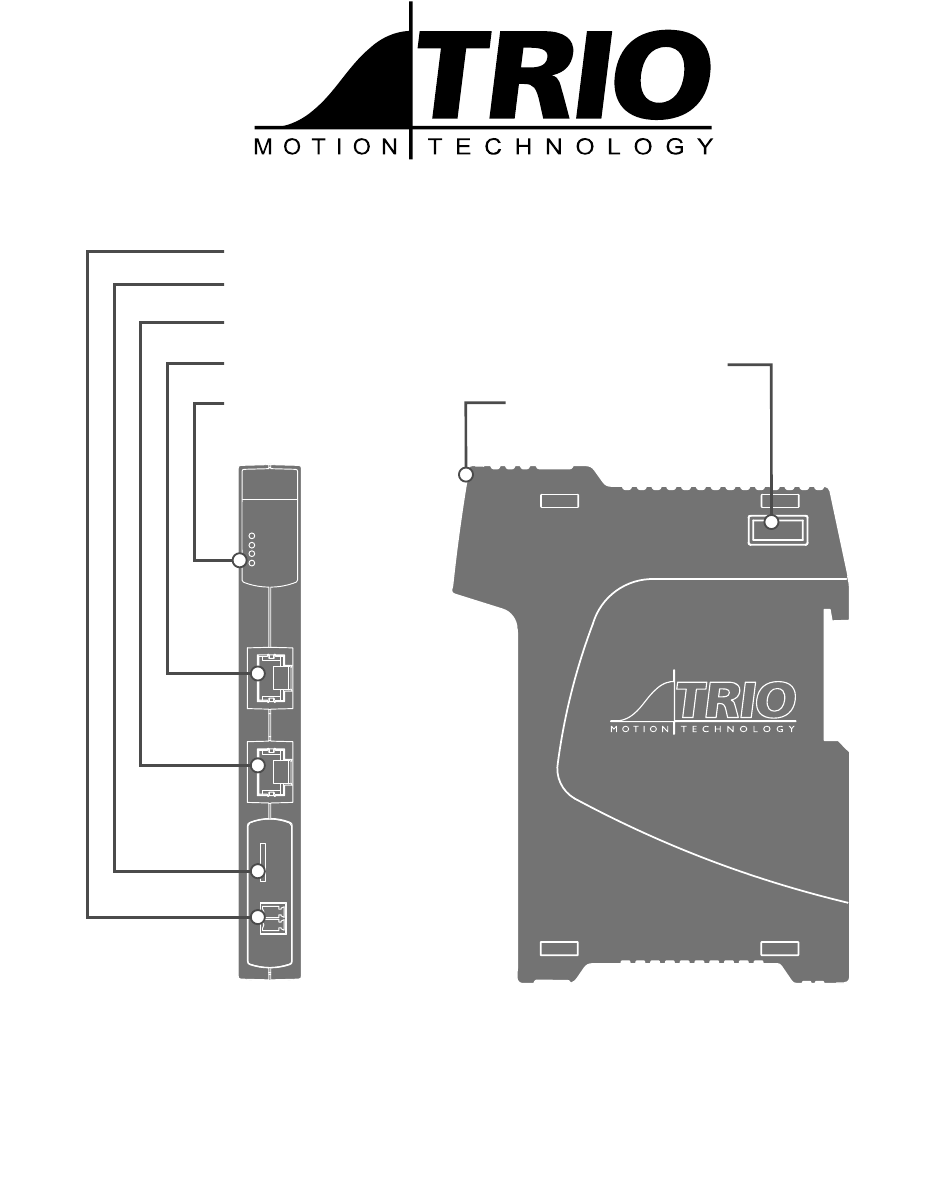

- Page 1 T E C H N O L O G Y POWER MICRO SD CARD ETHERCAT PORT ETHERNET PORT EBUS CONNECTOR STATUS LED’S USER TAB QUICK START GUIDE Flex-6 NaNo P600 | P601 | P602 | P603 | P604 |P605...
- Page 2 Safety Warning During the installation or use of control systems, users of Trio products must ensure that there is no possibility of injury to any person or damage to machinery. Control systems, especially during installation, can malfunction or behave unexpectedly. Bearing this in mind, users must ensure that even in the event of a malfunction or unexpected behaviour, the safety of an operator or programmer is never compromised.
- Page 3 ConneCtorS Power (24V) connector: Note: Use ferrules on all wires for best connection. 1. Connection: Push wire into hole of connector. No tools are necessary. 2. Removal: Push screwdriver against coloured button to release wire and pull wire out.
- Page 4 flex-6 nano (P600) The P600 Flex-6 Nano is a high specification programmable Motion Coordinator in a compact format for DIN rail mounting. It is expandable Status though the matching Flexslice range of Input, Output Power and Axis modules which can be easily added by clipping to the side of the Flex-6 Nano.
- Page 5 ConneCtor (toP) A standard Ethernet connector is provided for use as the primary programming interface. The Trio programming software, Motion Perfect 4.3 or higher, must be installed on a Windows based PC that is fitted with an Ethernet connection.
- Page 6 etherCat netWork DeteCtion EtherCAT Intelegent drives Window in Motion Perfect.
- Page 7 netWork SetuP netWork ConneCtion Set IP_ADDRESS in Flex-6 Nano to an available unused address. The default IP_ADDRESS = 192.168.0.250. It muSt match the subnet in use. Set the PC to use DHCP server. The Flex-6 Nano always has a fixed IP address. DCHP Server DCHP Server PC Laptop...
- Page 8 Setting a fixeD iP aDDreSS In Windows 7. Open “Network and Sharing Centre” then change “Adapter Settings”. Select the properties of the Local Area Network and the IPv4 properties. The IP Address is set to 192.168.0.100 with subnet mask set to 255.255.255.0. Assuming that the Flex-6 Nano has IP_ADDRESS=192.168.0.250 or similar.
- Page 9 exPanDing the flexSliCe SyStem The Flexslice system makes available a selection of digital and analogue I/O terminals as well as motion modules with pulse + direction outputs designed for precise positioning of stepper and servo motors via suitable drive technology. The digital I/O modules have high-speed functionality and can sample each EtherCAT cycle, or use distributed clocks for greater accuracy.
- Page 10 IntentIonally left blank...
- Page 11 IntentIonally left blank...
- Page 12 S P E C I A L I S T CAD data Drawings to aid packaging and mounting are available in various formats from the Trio web site. Products should be wired by qualified persons. Specifications may change without notice. E & OE...
