3.2. System Without PV Connection

1) There is no space to install the PV panel.
2) You don't want to install PV.
3) You want to install the PV later time.
This is the system configuration, and battery will be charged by the grid.

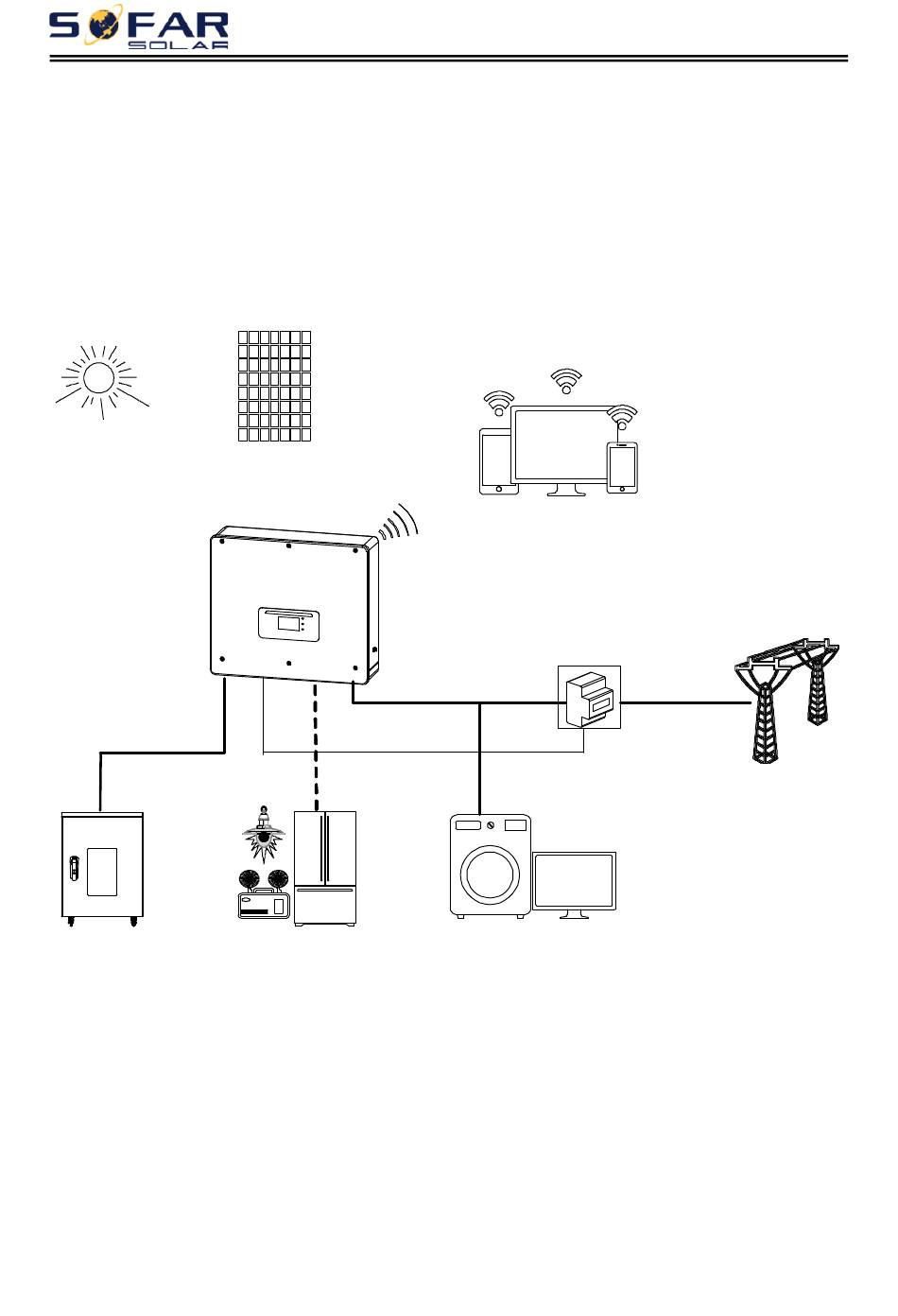

Fig. 3-2 System Without PV Connection
AMASS-
Storage
Battery
HYD 5-20KTL-3PH
PV panels
Hydbrid Inverter
Critical Load
Copyright ©Shenzhen SOFARSOLAR Co., Ltd
WiFi/GPRS，
RS485,USB,CAN2.0
Smart
Meter
Normal Load
- 10 -
User manual
Power Generation Date
Monitoring Platform
Grid
