Mechanical installation
Please pay attention to the requirements
that apply to integration and field
mounting kit, see the below list. The
information given in the list must be
observed to avoid serious damage or injury,
especially when installing large units.
The VLT frequency converter must be installed
vertically.
The VLT frequency converter is cooled by
means of air circulation. For the unit to be able
to release its cooling air, the minimum distance
over and below the unit must be as shown in
the illustration below.
To protect the unit from overheating, it must
be ensured that the ambient temperature does
not rise above the max. temperature stated for
the VLT frequency converter and that the 24-
hour average temperature is not exceeded.
If the ambient temperature is in the range of
45°C - 55°C, derating of the VLT frequency
converter will become relevant
The service life of the VLT frequency converter
will be reduced if derating for ambient
temperature is not taken into account.

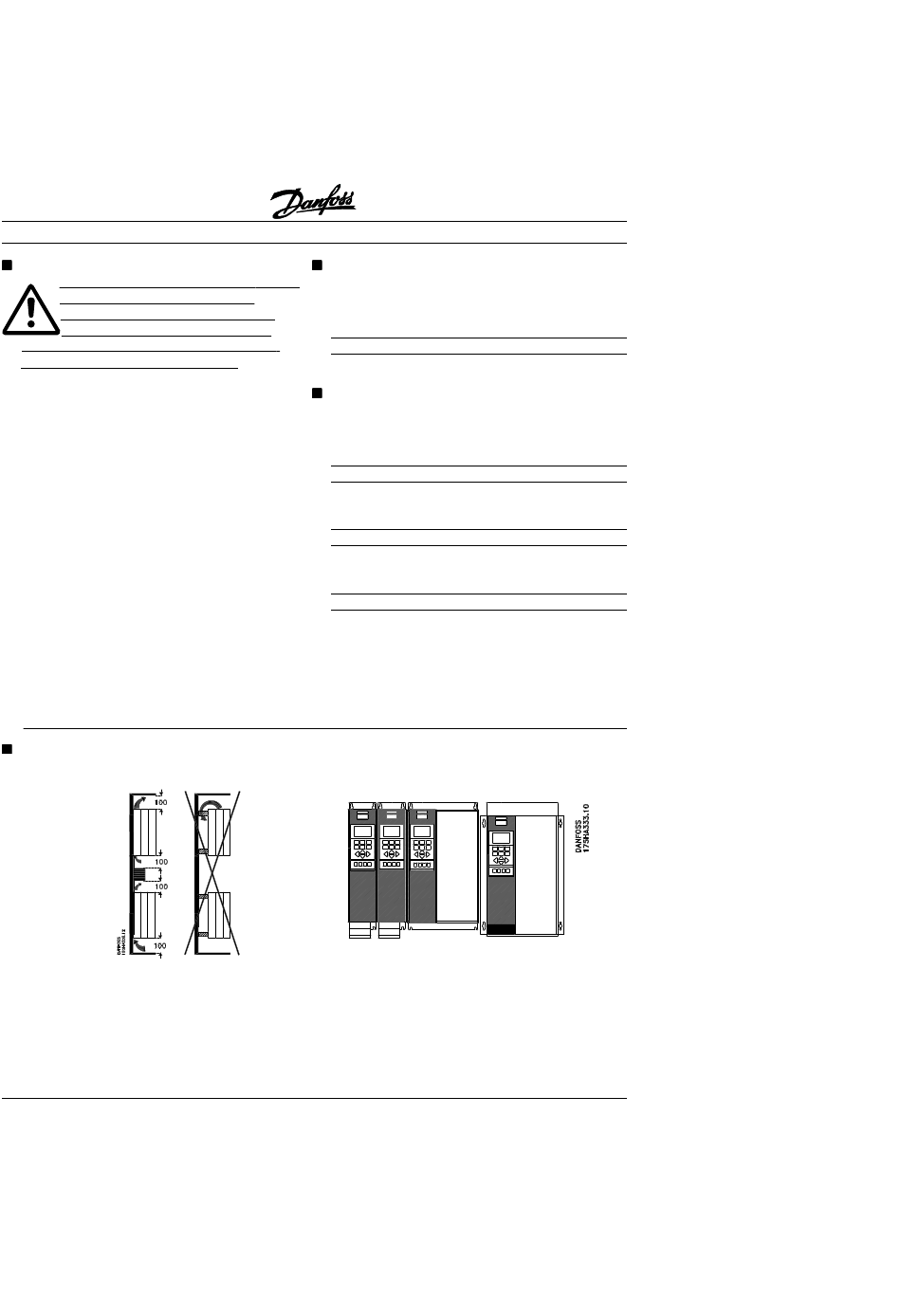

Spacing when installing of VLT 6002-6005 200-240 V, VLT 6002-6011 380-460 V
Bookstyle IP 00, IP 20 and IP 54.
Cooling
All the above-mentioned units require a
minimum space of 100 mm above and below
the enclosure.
MG.60.C4.02 – VLT is a registered Danfoss trademark
®
VLT 6000 HVAC
Enclosure protection
Bookstyle
VLT 6002-6032 200-240 V
VLT 6002-6550 380-460 V
Field-mounting
Bookstyle
VLT 6002-6032 200-240 V
VLT 6002-6550 380-460 V
IP 20 with 4x top cover
VLT 6002-6005 200-240 V
VLT 6002-6016 380-460 V
IP 20 terminal cover
VLT 6006-6032 200-240 V
VLT 6022-6062 380-460 V
Side-by-side
All the above-mentioned units can be installed
side by side without any space, since these units
do not require any cooling on the sides.
IP 00 IP 20 IP 54
- OK -
- OK OK
OK OK OK
IP 00 IP 20 IP 54
- No -
- No OK
No No OK
- OK OK
- OK OK
- OK OK
- OK OK
