ISE75
10 MPa
ISE75H
15 MPa
2 settings
27
NPN open collector 2 outputs (Pin no.: 2, 4)
Fixed setting:
43 NPN open collector 1 output (Pin no.: 4) +
PNP open collector 1 output (Pin no.: 2)
65 PNP open collector 1 output (Pin no.: 4)
2 settings
67
PNP open collector 2 outputs (Pin no.: 2, 4)
Optional Part No.
When optional parts are required separately, use the following part numbers to place an order.
Option
Bracket
Lead wire with M12 connector,
straight
Lead wire with M12 connector,
right-angled
3

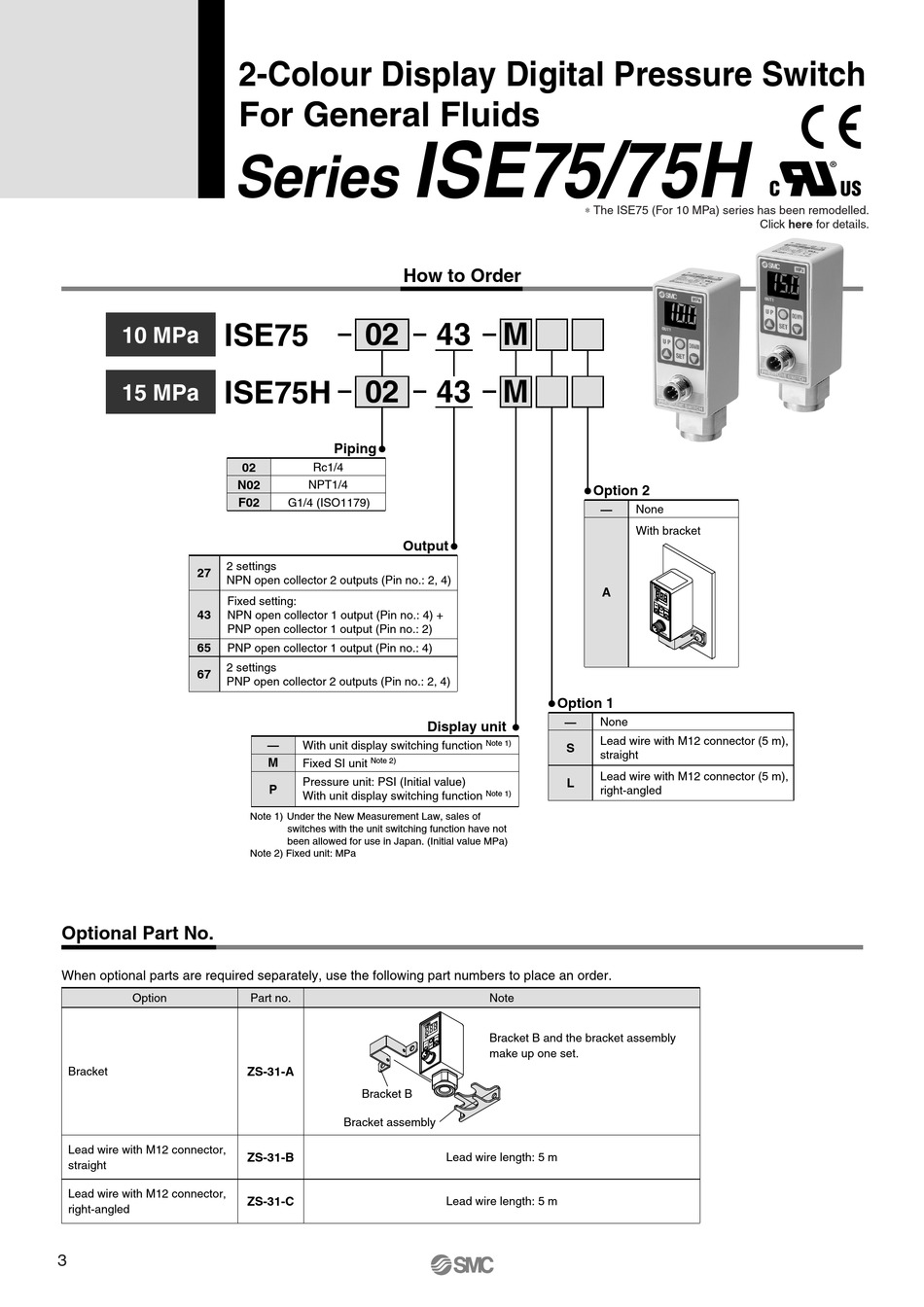

2-Colour Display Digital Pressure Switch
For General Fluids
Series
How to Order
02
02
Piping
Rc1/4
02
NPT1/4
N02
G1/4 (ISO1179)
F02
Output
— With unit display switching function
Note 2)
M Fixed SI unit
Pressure unit: PSI (Initial value)
P
With unit display switching function
Note 1) Under the New Measurement Law, sales of
switches with the unit switching function have not
been allowed for use in Japan. (Initial value MPa)
Note 2) Fixed unit: MPa
Part no.
ZS-31-A
Bracket B
Bracket assembly
ZS-31-B
ZS-31-C
ISE75/75H
∗ The ISE75 (For 10 MPa) series has been remodelled.
43 M
43 M
Option 1
—
Display unit
Note 1)
S
L
Note 1)
Note
Bracket B and the bracket assembly
make up one set.
Lead wire length: 5 m
Lead wire length: 5 m
Click here for details.
Option 2
None
—
With bracket
A
None
Lead wire with M12 connector (5 m),
straight
Lead wire with M12 connector (5 m),
right-angled
®
