Summary of Contents for Spektrum AR10360T

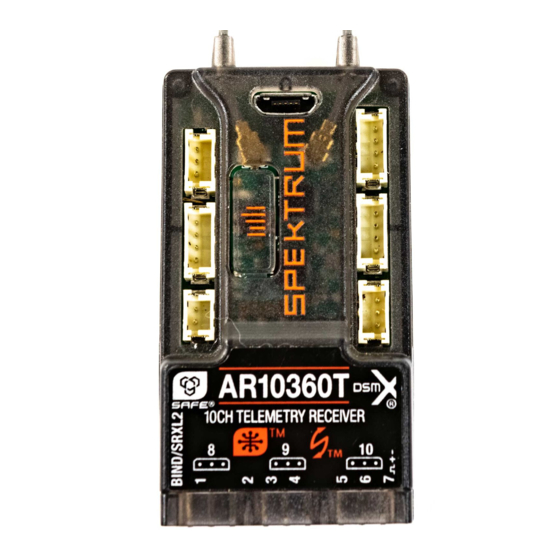

- Page 1 SPMAR10360T AR10360T 10 Channel Telemetry Receiver User Guide AR10360T Telemetrieempfänger mit 10 Kanälen Bedienungsanleitung Guide de L’utilisateur - AR10360T Récepteur de télémétrie 10 Canaux Guidea Dell’utente - AR10360T Ricevitore di telemetria 10 CH...
- Page 2 WARNING AGAINST COUNTERFEIT PRODUCTS. Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
-
Page 3: Table Of Contents
Perform the setup for the AR10360T receiver through a compatible Spektrum Transmitter with Forward Programming. The Spektrum PC Programmer can be used for firmware updates. IMPORTANT: The AR10360T receiver only uses forward programming for the configuration, do not use the AS3X menu in the main transmitter menu. -
Page 4: Specifications
Smart features. See www.spektrumrc. com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR10360T receiver, the throttle port will operate normally (PWM signal) like any... -
Page 5: Telemetry
Telemetry The AR10360T features full range telemetry and will provide receiver battery voltage, flight log data, and variometer* and altitude* data without any additional sensors. Additional telemetry devices such as voltage sensors can be connected to the volt port, and XBus telemetry sensors can be connected through the XBus connector. -
Page 6: Transmitter And Receiver Binding
Forward Programming. Binding The AR10360T receiver must be bound to your transmitter before it will operate. Binding is the process of teaching the receiver the specific code of the transmitter so it will only connect to that specific transmitter. -
Page 7: Failsafe
IMPORTANT: Do not use open mixes for flight control surfaces when setting up a model with the AR10360T for AS3X and SAFE. Only use wing and tail type options to configure flight controls, refer to your transmitter manual for more... -
Page 8: Ar10360T Receiver - Basic As3X Setup
AR10360T Receiver — Basic AS3X Setup To use AS3X technology with the Spektrum AR10360T Receiver, the receiver needs to be set up with a compatible Spektrum transmitter. Verify the basic setup and trim is accurate before attempting AS3X setup. Forward Programming Setup: The receiver is directly configured through the Forward Programming menu. -
Page 9: As3X Reaction Test
AS3X Reaction Test This test ensures that the AS3X control system is functioning properly. Assemble the aircraft, bind your transmitter to the receiver, and complete the AS3X First Time Setup in the Forward Programming menu before performing this test. Raise the throttle above 25% to activate AS3X, then lower the throttle. Once the AS3X system is active, control surfaces move in respose to aircraft movement. -
Page 10: Ar10360T Receiver - Safe Setup
AR10360T Receiver — SAFE Setup Setting up SAFE Technology on the AR10360T Receiver takes place in Forward Programming. Complete the AS3X setup and verify operation in flight. Forward Programming Setup: To add SAFE flight stabilization the Flight Modes on the receiver need to be configured. -
Page 11: Advanced Tuning
3. If the airplane oscillates, immediately slow it down and reduce gain. Take note of which flight mode you are in and which axis the aircraft oscillates around. You can increase or decrease the base gain values of each axis separately for each flight mode within the Forward Program- ming menu after landing. - Page 12 TIP: If you have not completed the First Time SAFE Setup, you will not see any SAFE related options on the F-Mode Setup Screens. 3. SAFE Flight Modes have an AS3X gain and a SAFE gain for pitch and roll axis. Both of these values are used for SAFE and may be tuned independently.
- Page 13 Adding Flight Modes outside of Forward Programming (in the transmitter) Flight Modes outside of forward programming are set up in the main transmitter menu and are separate from Flight Modes set up within forward programming. Flight Modes in the transmitter tie together transmitter-based features like dual rates and expo, selected channels and positions, trim, and voice/sound features.
- Page 14 (AS3X) System Setup Select Forward Programming -> Gyro Settings -> System Settings -> • Relearn Servo Settings can be accessed if any changes are made to the model configuration outside of Forward Programming. If any changes are made to servo reversing, travel, sub-trim, wing type or tail type, you can execute this function instead of restoring factory defaults and redoing the entire setup.
-
Page 15: Other Settings (Forward Programming)
Select this option to re-instate the model file saved into backup. • Save to Backup The AR10360T can store a second model setup file for backup. Use this option if you want to store the settings you have while you test setup changes. -
Page 16: Channel Limitations
Throttle will not affect flight response Channel Limitations The AR10360T can use up to seven extra channels for AS3X and SAFE functions; one for Flight Mode selection, one for Panic Mode, and up to five for Gain. You may use any channel up to 20 that is not a control surface or throttle for these functions, and you do not need to use channels 5–10, keeping those channels... -
Page 17: Flight Log
If your system displays a hold, diagnose the cause and resolve the issue before flying again. It is normal to see a hold logged if you power OFF your transmitter and back ON. IMPORTANT: The Spektrum Flight Log (SPM9540) is not compatible with the AR10360T receiver. Range Testing Before each flying session, and especially with a new model, it’s important to... -
Page 18: Receiver Power System Requirements
• The switch harness, battery leads, servo leads, regulators etc. The AR10360T has a minimum operational voltage of 3.5 volts; it is highly recommended the power system be tested per the guidelines below. Recommended Power System Test Guidelines... -
Page 19: Glossary
How QuickConnect Technology Works ™ • When the receiver voltage drops below 3.5 volts, the system ceases to operate. • When power is restored, the receiver immediately attempts to reconnect. • If the transmitter was left on, the system reconnects typically in about 4/100 of a second. -
Page 20: Optional Accessories
Oscillation- Sometimes called a wag, this is a back and forth movement similar to a vibration that may appear like a wobble. It may occur around any axis, roll, pitch or yaw. It is most likely to occur on one axis, not all three. Overshoot- When the stability system makes corrections it is a balancing act, if the response is too strong the system will go past where it should stop, this is called an overshoot. -
Page 21: Troubleshooting Guide As3X
Troubleshooting Guide AS3X Problem Possible Cause Solution Damaged propeller Replace propellereller or spinner or spinner Imbalanced Balance the propellereller propellereller Replace parts or correctly align Motor vibration propellereller or other parts and tighten fasteners as needed Align and secure receiver in Loose receiver fuselage Tighten or otherwise secure parts... -
Page 22: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle Reset controls with throttle and/or throttle trim stick and throttle trim at too high lowest setting Throttle servo travel Make sure throttle servo travel Aircraft will not is lower than 100% is 100% or greater respond to throttle but responds to... - Page 23 Troubleshooting Guide Problem Possible Cause Solution Move powered transmitter Transmitter too near air- a few feet from aircraft, dis- craft during connecting connect and reconnect flight process battery to aircraft Aircraft or transmitter is Move aircraft and transmit- too close to large metal ter to another location and object, wireless source attempt connecting again...
-
Page 24: 1-Year Limited Warranty
1-Year Limited Warranty What this Warranty Covers—Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 year from the date of purchase. What is Not Covered—This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) - Page 25 visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative. Inspection or Services—If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number.
-
Page 26: Warranty And Service Contact Information
FCC Information CONTAINS FCC ID: BRWSPMAR10360T Supplier’s Declaration of Conformity Spektrum AR10360T Telemetry Receiver (SPMAR10360T) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 27: Ic Information
Compliance Information for the European Union EU Compliance Statement: Spektrum AR10360T Telemetry Receiver (SPMAR10360T) Hereby, Horizon Hobby, LLC declares that the device is in compliance with the following: EU Radio Equipment Directive 2014/53/EU; RoHS 2 Directive 2011/65/EU; RoHS 3 Directive - Amending 2011/65/EU Annex II 2015/863. - Page 28 © 2021 Horizon Hobby, LLC. DSM, DSM2, DSMX, SAFE, AS3X, Spektrum Airware, SRXL2, SmartSafe, Hangar 9 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
