Summary of Contents for Spektrum AR9020

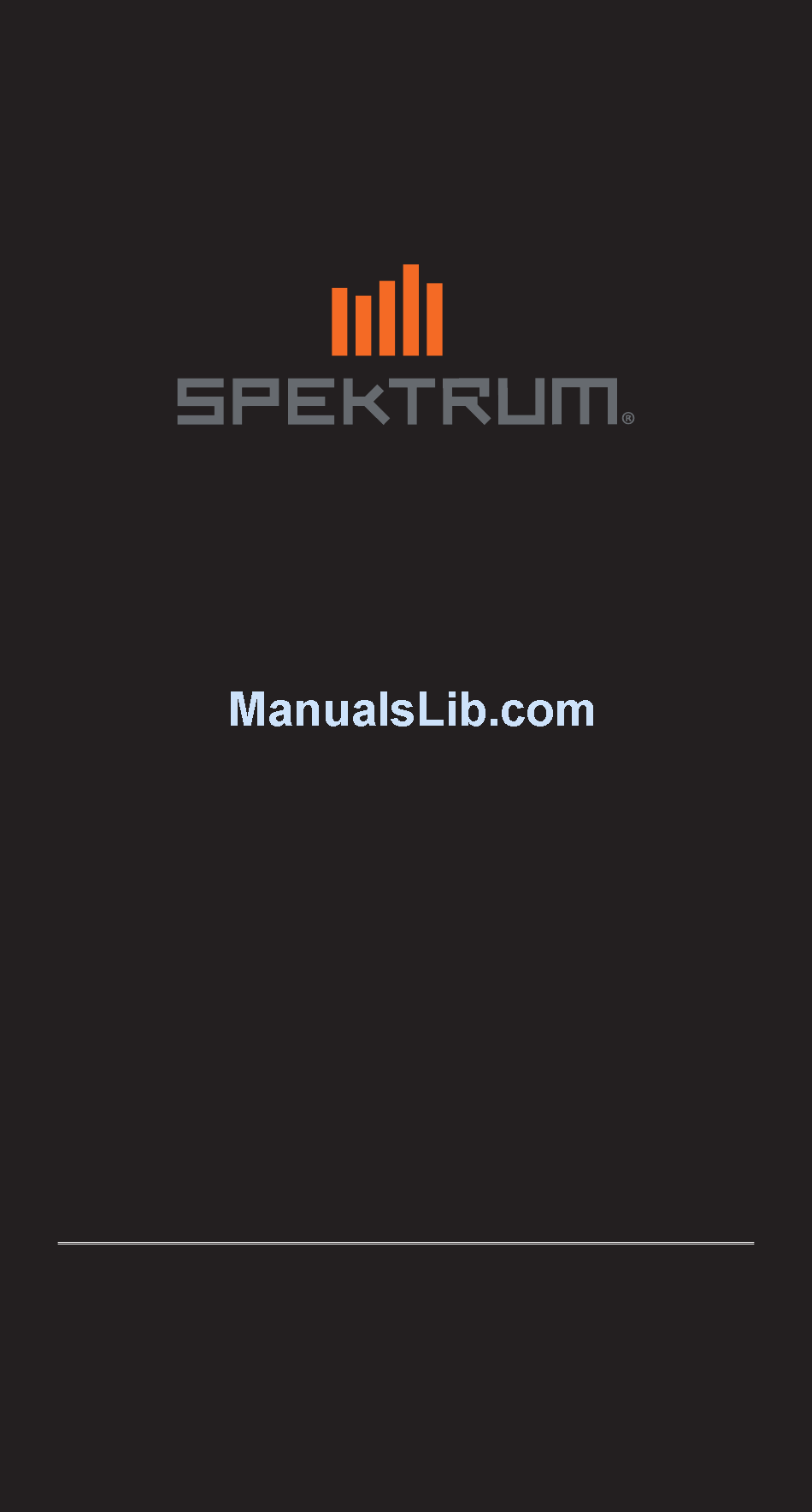

- Page 1 AR9020 User Guide...
-
Page 2: Meaning Of Special Language
WARNING AGAINST COUNTERFEIT PRODUCTS Thank you for purchasing a genuine Spektrum product. Always purchase from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology. - Page 3 Spektrum launched the 2.4GHz RC revolution with its DSM2™ technology. Since then, millions of hobbyists the world over have come to embrace 2.4 as the way to fly. Spektrum leads the way yet again with DSMX—the world’ s first wideband, frequency-agile 2.4GHz signal protocol.
- Page 4 Yes. DSMX will provide you with these and other exclusive Spektrum advantages you already enjoy with DSM2. Want to know more about DSMX? Visit spektrumrc. com for complete details on this as well as the many other reasons Spektrum is the leader in 2.4.
- Page 5 Transmitter-Receiver Compatibility Transmitter DSMX DSM2 AR500 AR600 AR6100 AR6110/e AR6200 AR6255 AR6300 AR6400/ALL AR7000 AR7100/R AR7600 AR8000 AR9000 AR9100 AR9200 AR9300 AR12000 AR12100 AR600 AR6115/e AR6210 AR6255 AR7010 AR7110/R AR7610 AR8000 AR9010 AR9020 AR9110 AR9210 AR9310 AR10000 AR12010 AR12020 AR12110 AR12120...
-
Page 6: Specifications
® radios that support DSM2 and DSMX technology, including: JR12X, 11X, X9503, X9303, Spektrum DX10t, DX8, DX7s, DX7se, DX6i, DX5e and Module Systems. NOTICE: The AR9020 receiver is not compatible with the Spektrum DX6 park flyer transmitter. Features • 9-channel full range receiver •... -
Page 7: Antenna Polarization
Receiver Technology ™ The AR9020 includes three receivers, offering the security of multiple path RF redundancy. An internal receiver is located on the main receiver while two required external receivers are attached to the main board with a 6-inch and a 12-inch ex- tension. - Page 8 Binding teaches the receiver the specific code of the transmitter, so it will only connect to that transmitter. 1. To bind an AR9020 to a DSM2 or DSMX transmitter, insert the bind plug in the BIND/DATA port on the receiver.
-
Page 9: Smartsafe™ Failsafe
4. Follow the procedures of your specific transmitter to enter Bind Mode. The system will connect within a few seconds. Once connected, the LED on the receiver will go solid, indicating the system is connected. 5. Remove the bind plug from the BIND/DATA port on the receiver before you power off the transmitter and store it in a convenient place. -
Page 10: Preset Failsafe
NOTICE: Failsafe features vary according to receiver, so if using a receiver other than the AR9020, consult your receiver’ s instructions for the failsafes that apply. Before flight, ALWAYS confirm your binding is good and failsafe is set. To do this, make sure the system is connected turn your transmitter off. -
Page 11: Receiver Power System Requirements
• The ESC’ s capability to deliver current to the receiver in electric aircraft • The switch harness, battery leads, servo leads, regulators etc. The AR9020 has a minimum operational voltage of 3.5 volts; it is highly recommended the power system be tested per the guidelines below. - Page 12 Flight Log (SPM9540 Optional) The Flight Log is compatible with the AR9020. The Flight Log displays overall RF link performance as well as the individual internal and external receiver link data. Additionally, it displays receiver voltage.
- Page 13 Futaba tran- Reverse throttle channel seem to function smitters (equipped with on specific transmitter if Spektrum modules) may applicable require you to reverse the throttle channel User did not wait at least 5 seconds after powering...
- Page 14 Rebind your transmitter and mode and is not bound to receiver your receiver anymore Charge batteries. Spektrum receivers require at least 3.5V to operate. An inadequate power supply can allow Inadequate battery voltage voltage to momentarily drop Receiver quits below 3.5V and cause the...
-
Page 15: Year Limited Warranty
1-Year Limited Warranty What this Warranty Covers: Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materi- als and workmanship for a period of 1 years from the date of purchase. What is Not Covered: This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) - Page 16 to productsupport@horizonhobby.com, or call 877.504.0233 toll free to speak to a Product Support representative. You may also find information on our website at www. horizonhobby.com. Inspection or Services: If this Product needs to be inspected or serviced, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number.
-
Page 17: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Address Phone Number/Email Address Purchase Horizon Service 4105 Fieldstone Rd 877-504-0233 Center Champaign, Illinois Online Repair Request: visit (Electronics and 61822 USA www.horizonhobby.com/service United States engines) of America Horizon Product 4105 Fieldstone Rd 877-504-0233 productsupport@ Support (All other Champaign, Illinois... -
Page 18: Fcc Information
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2012020501 Product(s): AR9020 Rx Item Number(s): SPMAR9020 Equipment class: The objects of declaration described above are in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC: EN 301 489-1 V1.7.1: 2006... - Page 19 Horizon Hobby, Inc. DSMX is a trademark of Horizon Hobby, Inc., registered in the US. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan US 7,391,320.
Need help?
Do you have a question about the AR9020 and is the answer not in the manual?
Questions and answers
How to solve brown out on RX
To fix brownout issues on a Spektrum AR9020 receiver:
1. Use higher capacity power sources: Use two 2-cell 2300 mAh A123 battery packs as dual power sources.
2. Connect both packs separately: Plug one pack into the main receiver power input and the second into an unused receiver channel.
3. Use quality receiver switches: Ensure each battery pack has its own high-quality power switch to maintain reliable power delivery.
4. Avoid voltage drops below 3.2V: Brownouts occur when voltage drops below 3.2V, even briefly.
This setup improves voltage stability and prevents receiver reboots.
