- Page 1 AR620 User Guide AR620 Bedienungsanleitung Guide de L’utilisateur - AR620 AR620 Guidea Dell’utente...
-
Page 2: Warranty Registration
WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology. - Page 3 fl y-by range, typically 300-400 feet. For information on Spektrum Telemetry Sensors visit: http://www.spektrumrc.com The AR620 is not compatible with the Flight Log, SPM9540. Flight Log information is only available through a Spektrum Telemetry capable transmitter. AR620 Type 6-Channel Sport Receiver Dimensions (L ×...
-
Page 4: Receiver Installation

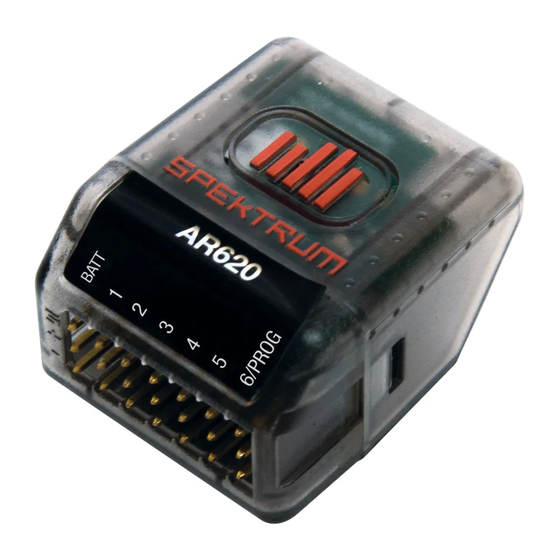

AR620 Antenna The AR620 features an internal antenna design for easy installation in almost any model. Receiver Installation Installing the Receiver Install the receiver in the normal position recommended by the airplane’s manufacturer. Double-sided tape or foam can be used to secure the receiver in place. -
Page 5: Range Testing
Range Testing Before each fl ying session and especially with a new model, it is important to perform a range check. All Spektrum aircraft transmitters incorporate a range testing system which, when activated, reduces the output power, allowing a range check. -
Page 6: Receiver Power System Requirements
• The ESC’s capability to deliver current to the receiver in electric aircraft • The switch harness, battery leads, servo leads, regulators etc. The AR620 has a minimum operational voltage of 3.5 volts; it is highly recommended the power system be tested per the guidelines below. - Page 7 Amplifi ed Y-harnesses were developed several years ago to boost the signal for some older PCM systems and should not be used with Spektrum equipment. Note that when converting an existing model to Spektrum be certain that all amplifi...
- Page 8 Frequently Asked Questions on Spektrum 2.4GHz 1. Q: After I’ve bound the receiver to my transmitter, which do I turn on fi rst when I want to fl y? A: Either one. Every DSM 2.4GHz transmitter has a GUID (Globally Unique Identifier) code imbedded in its signal.
-
Page 9: Year Limited Warranty
1-Year Limited Warranty What this Warranty Covers - Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 year from the date of purchase. ... - Page 10 need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative. Inspection or Services If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request...
-
Page 11: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair RequestForm/ Requests) 1608 Interstate Dr. United States Champaign, Illinois, Horizon Product productsupport@horizonhobby.com. of America 61822 USA Support (Product Technical 877-504-0233 Assistance) websales@horizonhobby.com Sales... -
Page 12: Compliance Information For The European Union
Antenna Separation Distance When operating your transmitter, please be sure 20 cm to maintain a separation distance of at least 20 cm between your body (excluding fi ngers, hands, wrists, ankles and feet) and the antenna to meet RF exposure safety requirements as determined by FCC regulations. - Page 13 DSM, DSM2, DSMX, QuickConnect, ModelMatch, SmartSafe, Hangar 9 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. JR is a registered trademark of JR Americas. All other trademarks, service marks and logos are property of their respective owners.
