- Page 1 AR8010T/AR9030T/AR9320T User Guide AR8010T/AR9030T/AR9320T Bedienungsanleitung Guide de L’utilisateur - AR8010T/AR9030T/AR9320T AR8010T/AR9030T/AR9320T Manuale utente...
-
Page 2: Warranty Registration

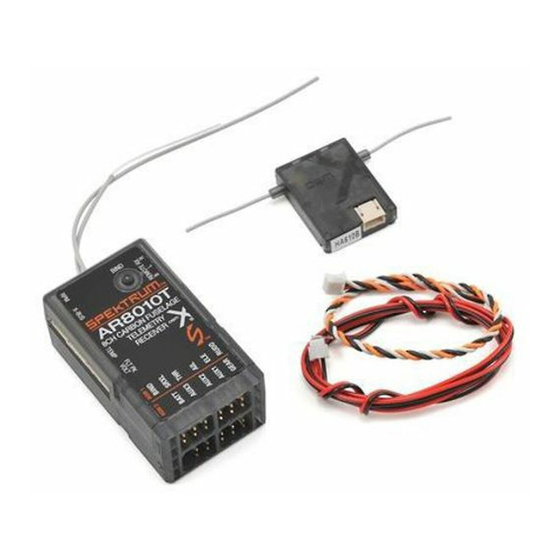

WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology. - Page 3 AR8010T/AR9030T/AR9320T Telemetry Receivers The Spektrum™ AR8010T/AR9030T/AR9320T receivers are full range ® telemetry receivers featuring DSM technology and are compatible with all ® ® Spektrum™ aircraft radios that support DSM2 and DSMX technology. These telemetry receivers features 4 integrated telemetry ports that are compatible with Spektrum telemetry capable transmitters.
- Page 4 AR8010T/AR9030T Receiver Installation For optimum RF link performance it’s important that the antennas be mounted in an orientation that allows for the best possible signal reception when the aircraft is in all possible attitudes and positions. This is known as antenna polarization.
- Page 5 • The AR8010T and AR9030T receivers feature two types of failsafe during setup: SmartSafe + Hold Last and Preset Failsafe. • The AR9320T Receiver has one failsafe: Preset Failsafe.
- Page 6 Bind Button AR8010T/AR9030T Preset Failsafe Smart Safe + Hold Last Move all sticks and switches on the transmitter to the desired Lower throttle on transmitter failsafe positions Push and hold bind button Push and hold bind button Power ON receiver...
-
Page 7: Flight Log
• All other channels have no output until the receiver has linked to the transmitter. Flight Log Flight Log data can help you optimize the control link for your aircraft. Flight Log data is displayed on telemetry capable Spektrum transmitters. Using the Flight Log A - Fades on main receiver. -
Page 8: Range Testing
Range Testing Before each fl ying session, and especially with a new model, it’s important to perform a range check. All Spektrum aircraft transmitters incorporate a range testing system, which reduces the output power to allow a range check. 1. With the model resting on the ground, stand approximately 100 feet (30 meters) away from the model. -
Page 9: Receiver Power System Requirements
• The ESC’s capability to deliver current to the receiver in electric aircraft • The switch harness, battery leads, servo leads, regulators etc. The AR8010T/AR9030T/AR9320T have a minimum operational voltage of 3.5 volts; it is highly recommended the power system be tested per the guidelines below. -
Page 10: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Reset controls with throttle Throttle not at idle and/or stick and throttle trim at low- throttle trim too high est setting Aircraft will not Throttle servo travel is lower Make sure throttle servo travel respond to than 100% is 100% or greater... - Page 11 Problem Possible Cause Solution Move powered transmitter a few Transmitter too near aircraft feet from aircraft, disconnect and during connecting process reconnect fl ight battery to aircraft Aircraft or transmitter is too Move aircraft and transmitter close to large metal object, to another location and at- wireless source or another tempt connecting again...
-
Page 12: Optional Accessories
SPMA9551 12" Aircraft Telemetry Extension SPMA9552 24" Aircraft Telemetry Extension *Only applicable for AR8010T and AR9030T receivers. The SPMA9589 functions are already integrated in the SPMAR9320T. **For use with electric power system batteries that are separate from the receiver battery(s). -
Page 13: Year Limited Warranty
1-Year Limited Warranty What this Warranty Covers - Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 year from the date of purchase. ... - Page 14 need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative. Inspection or Services If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request...
-
Page 15: Warranty And Service Contact Information
