Related Manuals for Keysight Technologies N6700C Series
Summary of Contents for Keysight Technologies N6700C Series

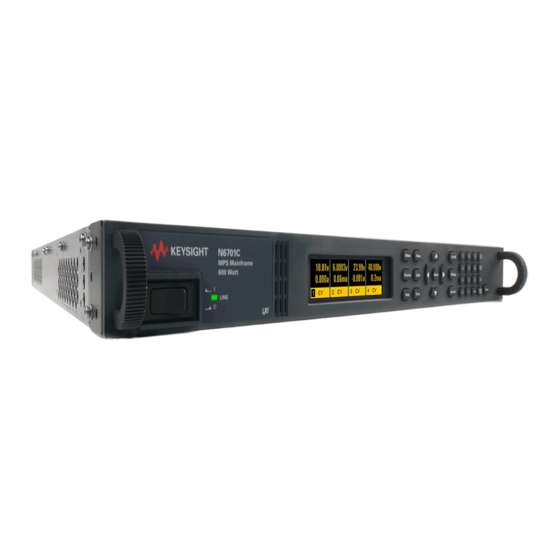

- Page 1 Keysight Series N6700C Low-Profile Modular Power System User's Guide Distributed by: Sie haben Fragen oder wünschen eine Beratung? Angebotsanfrage unter 07121 / 51 50 50 oder über info@datatec.de...
-
Page 3: Table Of Contents
Positive and Negative Voltages Load Capacitor Response Times Ferrite Core Installation - for Keysight N6792A only Protecting Sensitive Loads from AC Power Switching Transients Remote Sense Connections Wiring Open Sense Leads Over-Voltage Protection Considerations Output Noise Considerations Keysight N6700C Series User's Guide... - Page 4 Sequence Multiple Outputs Program the Output Relays Set the Output Bandwidth Set the Output Turn-Off Mode Programming an Input Short Enable Under-Voltage Inhibit Stepping the Output Synchronizing Output Turn-On Synchronizing Output Turn-On Delays Synchronizing Multiple Mainframes Keysight N6700C Series User's Guide...
- Page 5 Terminate the Elog Using the Digital Control Port Bi-directional Digital IO Digital Input External Trigger I/O Fault Output Inhibit Input Fault/Inhibit System Protection Output State Using the Protection Functions Protection Functions Set the Over-Voltage Protection Keysight N6700C Series User's Guide...
- Page 6 Front Panel Display Front Panel Keys Password Protection Mainframe Power Allocation Mainframe Power Ratings Mainframe Power Limit Module Power Limit Power Limit Allocation Operating Mode Tutorial Single-Quadrant Operation Multi-Quadrant Operation Keysight N679xA Load Module Operation Index Keysight N6700C Series User's Guide...
-
Page 7: Legal And Safety Information
Certification Keysight Technologies certifies that this product met its published specifications at time of shipment from the factory. Keysight Technologies further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology, to the extent allowed by the Institute's calibration facility, and to the calibration facilities of other International Standards Organization members. - Page 8 Product Category: With reference to the equipment types in the WEEE directive Annex 1, this product is classified as "Monitoring and Control instrumentation" product. Do not dispose in domestic household waste. To return unwanted products, contact our local Keysight office, or see http://www.keysight.com/environment/product for more information. Keysight N6700C Series User's Guide...
-
Page 9: Safety Symbols
This text indicates that the instrument is an Industrial Scientific and Medical Group 1 Class A product (CISPER 11, Clause 4). ICES/NMB-001 This text indicates product compliance with the Canadian Interference- Causing Equipment Standard (ICES- 001). Keysight N6700C Series User's Guide... -
Page 10: Safety Notices
Failure to comply with these precautions or with specific warnings or instructions elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument. Keysight Technologies assumes no liability of the customer’s failure to comply with the requirements. - Page 11 Do not attempt to clean internally. In Case of Damage Instruments that are not functioning correctly, appear damaged or defective should be made inoperative and secured against unintended operation until they can be repaired by qualified service personnel. Keysight N6700C Series User's Guide...
-
Page 13: Quick Reference
Models and Options Specifications and Characteristics This document includes user, service, and programming information for the Keysight N6700C Series Modular Power System . Documentation and Firmware Revisions You can download the latest version of this document at www.keysight.com/find/n6700-doc. The latest version is also available for mobile devices at www.keysight.com/find/n6700-mobilehelp. -
Page 14: Introduction To The Instrument
N679xA Electronic Load Modules are single-quadrant 100 W and 200 W models having constant current, constant voltage, constant power, and constant resistance operating capabilities. They also provide many of the existing measurement and protection features of the other power mod- ules. Keysight N6700C Series User's Guide... - Page 15 Seamless measurement autoranging - Available on Keysight N678xA SMU power modules. Out- put measurements seamlessly autorange between ranges – however, the 10 μA current range must be selected manually. Keysight N6700C Series User's Guide...
-
Page 16: Front Panel At A Glance
3. Output keys - Turn the outputs on or off. Enter voltage or current. 4. On/Off switch and LED - LED indicates power is on. Green indicates normal operation. Amber indic- ates display is in screen-saver mode. Keysight N6700C Series User's Guide... -
Page 17: Rear Panel At A Glance
7. LAN - 10/100/1000 Base-T Left LED indicates activity. Right LED indicates link integrity. SHOCK HAZARD The power cord provides a chassis ground through a third conductor. Be certain that your power outlet is of the three-conductor type with the correct pin connected to earth ground. Keysight N6700C Series User's Guide... -
Page 18: Front Panel Display At A Glance
Voltage, Current, & Voltage measurement Current measurement and power Power View measurement Press to toggle between views 4-Channel View Voltage and Current measurements Press to toggle between views The highlighted channel is the active channel Keysight N6700C Series User's Guide... - Page 19 Err = an error has occurred (press Error key to display error message) indicators Lan = the LAN is connected and has been configured IO = there is activity on one of the remote interfaces Keysight N6700C Series User's Guide...
-
Page 20: Front Panel Keys At A Glance
The E key enters an exponent. Add the value to the right of the E. Å back arrow key deletes digits as it backspaces over them. The Enter key enters a value. If you exit a field without pressing the Enter key, the value is ignored. Keysight N6700C Series User's Guide... -
Page 21: Front Panel Menu Reference
Selects Auxiliary voltage input on N6781A, N6785A Control Lets you abort a measurement in progress Transient Mode Selects voltage, current, resistance, or power transient modes Step Specifies the triggered step values List Pace Specifies Dwell or Trigger paced list Keysight N6700C Series User's Guide... - Page 22 Enables/disables oscillation protection on N678xA SMU Clear Clears protection conditions and displays output status States Reset Resets all instrument settings to the reset (*RST) state SaveRecall Saves and recalls instrument settings PowerOn Selects the power-on instrument state Keysight N6700C Series User's Guide...
- Page 23 Vmeas Calibrates High, Low, Aux voltage measurement ranges Curr Iprog Calibrates High and Low current ranges Ilim Calibrates current limit Imeas Calibrates High and Low current measurement ranges Misc CMRR Calibrates common mode rejection ratio Keysight N6700C Series User's Guide...
- Page 24 Performs NISPOM secure erase of all user data Update Password protect firmware updates Password Changes the password for the admin functions About Frame Displays model, output ratings, serial number, firmware Module Displays model, serial number, options, output ratings Keysight N6700C Series User's Guide...
-
Page 25: Command Quick Reference
Calibrates the auxiliary voltage measurement. (N6781A, N6785A) DISPlay [:WINDow] [:STATe] 0|OFF|1|ON Turns the front panel display on or off. :CHANnel <channel> Selects the channel in 1-channel view. :VIEW METER1|METER4|METER_VIP Selects 1-channel, 4-channel, or 1 channel with power view. Keysight N6700C Series User's Guide... - Page 26 HCOPy :SDUMp :DATA? Returns an image of the front panel display. :DATA :FORMat BMP|GIF|PNG Specifies the format for front panel images returned. IEEE 488.2 Common Commands *CLS Clears status. *ESE <value> Sets standard event status enable. Keysight N6700C Series User's Guide...
- Page 27 Takes a measurement; returns the minimum current. :POWer [:DC]? (@chanlist) Takes a measurement; returns the averaged power. (N676xA, N678xA SMU) :MAXimum? (@chanlist) Takes a measurement; returns the maximum power. :MINimum? (@chanlist) Takes a measurement; returns the minimum power. Keysight N6700C Series User's Guide...
- Page 28 Sets the over-current protection programming delay. :OSCillation0|OFF|1|ON, (@chanlist) Enables/disables output oscillation protection. (N678xA SMU) :TEMPerature :MARGin? (@chanlist) Returns the margin remaining before the over-temperature trips. :WDOG [:STATe] 0|OFF|1|ON Enables/disables the I/O watchdog timer. :DELay <value> Sets the watchdog delay time. Keysight N6700C Series User's Guide...
- Page 29 Defines the number of points in a measurement. :TINTerval <value>, (@chanlist) Defines the time period between measurement samples. :RESolution RES20|RES40 Sets the measurement resolution. :VOLTage [:DC] :RANGe [:UPPer] <value>, (@chanlist) Selects a DC voltage measurement range. Keysight N6700C Series User's Guide...
- Page 30 Sets the length of the start time or delay :SINusoid :AMPLitude <value>, (@chanlist) Sets the amplitude of the sine wave :FREQuency <value>, (@chanlist) Sets the frequency of the sine wave :OFFSet <value>, (@chanlist) Sets the DC offset of the sine wave :STAIRcase Keysight N6700C Series User's Guide...
- Page 31 :RESet (@chanlist) Resets the sequence to its power-on default setting :STEP :COUNt <value>|INFinity, <step#> (@chanlist) Sets the number of times the sequence step is repeated :CURRent <function>, <step#> (@chanlist) Programs the steps in a current sequence Keysight N6700C Series User's Guide...
- Page 32 Enables/disables the maximum slew rate override. (N678xA SMU, N679xA) :COUPle 0|OFF|1|ON, (@chanlist) Sets the current slew tracking state. (N679xA) :NEGative [:IMMediate] <value>|INFinity, (@chanlist) Sets the negative current slew rate. (N679xA) :MAXimum 0|OFF|1|ON, (@chanlist) Enables/disables the maximum slew rate override. (N679xA) Keysight N6700C Series User's Guide...
- Page 33 Generates a trigger out at the End Of STep :POINts? (@chanlist) Returns the number of list points (same as steps). :VOLTage [:LEVel] <value>{,<value>}, (@chanlist) Specifies the setting for each list step. :POINts? (@chanlist) Returns the number of list points (same as steps). Keysight N6700C Series User's Guide...
- Page 34 Sets the resistance slew tracking state. (N679xA) :NEGative [:IMMediate] <value>|INFinity, (@chanlist) Sets the negative resistance slew rate. (N679xA) :MAXimum 0|OFF|1|ON, (@chanlist) Enables/disables the maximum slew rate override. (N679xA) :STATe 0|OFF|1|ON, (@chanlist) Enables/disables output resistance programming. (N6781A, N6785A) Keysight N6700C Series User's Guide...
- Page 35 Sets the negative remote OV protection. (N6784A) :TRACking [:STATe] 0|OFF|1|ON, (@chanlist) Enables/disables tracking over-voltage protection. (Option J01) :OFFSet <value>, (@chanlist) Sets the tracking OVP offset. (Option J01) :RANGe <value>, (@chanlist) Sets the output voltage range. :RESistance [:LEVel] Keysight N6700C Series User's Guide...
- Page 36 (GROup commands do NOT apply to models N678xA SMU) :CATalog? Returns the groups that have been defined. :DEFine <chanlist> Group multiple channels to create a single channel. :DELete <channel> Remove the specified channel from the group. :ALL Ungroups all channels. Keysight N6700C Series User's Guide...
- Page 37 [:STATe] 0|OFF|1|ON Improves the alignment of measurement triggers with measurement data. :TRANsient [:IMMediate] (@chanlist) Generates an immediate output transient trigger. :SOURce <source>, (@chanlist) Selects the trigger source for the transient system: BUS |EXTernal IMMediate |PIN<1-7> |TRANsient<1-4> Keysight N6700C Series User's Guide...
-
Page 38: Models And Options
N6781A, N6782A, N6784A 20 W Source/Measure Unit (SMU) N6785A, N6786A 80 W Source/Measure Unit (SMU) N6783A-BAT / N6783A-MFG 18 W / 24 W Application-Specific DC Power Module N6791A, N6792A 100 W/ 200 W Electronic Load Module Keysight N6700C Series User's Guide... -
Page 39: Model Differences
Option 760 is not available on Models N6741B, N6751A, N6752A, N6761A, and N6762A. Note 2 Option 2UA.is only available on Models N6761A and N6762A. It includes Option 761. Note 3 Only available when using the remote interfaces; not from the front panel. Keysight N6700C Series User's Guide... - Page 40 Double-wide (occupies two channel locations) Note 1 Arbitrary waveforms and List capability is not available on the negative current output on Model N6783A Note 2 Only available when using the remote interfaces; not from the front panel. Keysight N6700C Series User's Guide...
- Page 41 Note 1 The load module's input is referred to by the term "Output" throughout this document. Note 2 The input and measurement ranges re coupled. Note 3 Only available when using the remote interfaces; not from the front panel. Keysight N6700C Series User's Guide...
-
Page 42: Options
Tracking overvoltage protection function. Only available on Models N6752A, N6754A, and N6762A when installed in an N6700B, N6701A, or N6702A mainframe. Seamless measurement autoranging for Model N6784A. Included with Models N6781A, N6782A, N6785A, and N6786A. Note 1 A small AC network is always present across the output terminals. Keysight N6700C Series User's Guide... -
Page 43: Specifications
3 as INH input (pin 8 = common) Minimum high-level input voltage = 2 V Typical low-level current = 2 mA @ 0 V (internal 2.2k pull-up) Typical high-level leakage current = 0.12 mA @ 16.5 VDC Keysight N6700C Series User's Guide... - Page 44 AC mains circuits rated at 100-180 VAC cannot supply enough current to power the N6702A mainframe when operated at its full rated power. When connected to a 100-180 VAC mains, internal circuits will limit the power available to modules to 600 W maximum. Keysight N6700C Series User's Guide...
-
Page 45: Dimension Diagrams
Refer to the dimension diagrams in the following section. Note 1 Under full load at 400 Hz, power factor drops from 0.99 @ 120 VAC to as low as 0.76 @ 265 VAC. Power factor degrades further under no load conditions. Dimension Diagrams Keysight N6700C Series User's Guide... -
Page 47: Installation
Keysight N6700C Series User's Guide Installation Preliminary Information Installing the Mainframe Connecting the Power Cord Connecting the Outputs Remote Sense Connections Parallel and Series Connections Auxiliary Measurement Connections Interface Connections... -
Page 48: Preliminary Information
Phoenix Contact FMC 1,5/2-ST-3,5 Small Sense Jumpers Two small jumpers for local sensing at the output connector. Keysight 8120-8821 Used in all except N6731B, N6741B, N6753A-N6756A, Phoenix Contact EPB 2-5(1733169) N6763A-N6766A, N6773A, N678xA SMU, N6791A, N6792A. Keysight N6700C Series User's Guide... -
Page 49: Inspect The Unit
Specifications. A fan cools the power system by drawing air through the sides and exhausting it out the side and back. The instrument must be installed in a location that allows sufficient space at the sides and back of the unit for adequate air circulation. Keysight N6700C Series User's Guide... -
Page 50: Installing The Mainframe
Do not install filler modules between modules. Tools required: T10 Torx driver; Small flat-blade screwdriver Step 1. Remove the blower cover. Remove the screws from the top and sides of the blower cover. Tilt the cover up and slide it out. Keysight N6700C Series User's Guide... - Page 51 Numbering continues sequentially to the left, from 1 up to 4. Double-wide modules are assigned the number of the lowest numbered slot in which is installed. For example, if a double-wide module is installed in slots 3 and 4, it is assigned channel number 3. Keysight N6700C Series User's Guide...
-
Page 52: Rack Mounting
Tools required: Phillips driver, T22 Torx driver, T10 Torx driver Step 1. Install eight clip-nuts on the rack frame (2 in each corner) where your instrument will be located. The following figure references the installation steps. Keysight N6700C Series User's Guide... -
Page 53: Bench Installation
Refer to the Specifications section for power factor statistics at 400 Hz operation. Refer to Redundant Ground in the Operating and Service Guide document for installation instructions. Keysight N6700C Series User's Guide... -
Page 54: Connecting The Power Cord
Additional measures to protect sensitive loads from common mode currents are discussed under Protecting Sensitive Loads from AC Power Switching Transients. To install the core: 1. Locate the core anywhere along the cord. 2. Pass the power cord through the core twice. 3. Close the core. Keysight N6700C Series User's Guide... -
Page 55: Connecting The Outputs
Supplied. On power modules with the 50A sense connector, the +LS and –LS terminals are ONLY used for local sense connections as illustrated. Do not connect the +LS and –LS terminals in any other way. Keysight N6700C Series User's Guide... -
Page 56: Wire Sizing
Load lead resistance is also an important factor relating to the CV stability of the instrument when remote sensing capacitive loads. If high capacitance loads are expected, you should not use wire gauges heavier than 12 to 14 AWG for long runs of load lead. Keysight N6700C Series User's Guide... - Page 57 4. “x” indicates wire is not rated for the maximum output current of the power module. 5. Because of wire inductance considerations, it is also recommended that you keep your load leads twisted, tie wrapped, or bundled together and less than 50 feet (14.7 meters) in length per lead. Keysight N6700C Series User's Guide...
-
Page 58: Keysight N678Xa Smu Wiring
1. Load wires must be twisted-pair or coax and must not be twisted along with the sense wires. Refer to the above table for length (L). 2. Sense wires must be twisted-pair or coax and must not be twisted with the load wires. 3. No capacitors are allowed within the sense-compensated load path. Keysight N6700C Series User's Guide... - Page 59 + output terminals of the module connector. The guard current is limited to about 300 μA. 1. N678xA SMU connector 2. Guard shield (can be the shield of a coaxial cable) Keysight N6700C Series User's Guide...
-
Page 60: Multiple Load Wiring
± 240 VDC including output voltage from ground. Keysight Models N678xA SMU are optimized for grounding the negative output terminal. Grounding the positive terminal may result in increased current measurement noise and a reduction in current measurement accuracy. Keysight N6700C Series User's Guide... -
Page 61: Load Capacitor Response Times
2. Clip the ferrite core onto the load cables as close as possible to the output connector. The recommended distance from the connector to the core is 4 cm or less. 3. Attach the tywrap to the load wires to prevent the core from sliding away from the connector. Keysight N6700C Series User's Guide... -
Page 62: Protecting Sensitive Loads From Ac Power Switching Transients
Disconnecting the load from the output before switching the power system on or off will always protect the load from common mode currents. Keysight N6700C Series User's Guide... -
Page 63: Remote Sense Connections
Keep the sense lead resistance less than about 0.5 Ω per lead (this requires 20 AWG or heavier for a 50 foot length). Keysight N6700C Series User's Guide... -
Page 64: Open Sense Leads
If it is desirable to keep voltage transient levels to a minimum, place an aluminum or tantalum capacitor, with an approximate value of 10 µF per foot (30.5 cm) of load lead, right across the load. Keysight N6700C Series User's Guide... -
Page 65: Parallel And Series Connections
If voltage drop in the load leads is a concern, the figure on the right shows how to connect the sense leads directly at the load. Note that in both cases, the remote sense terminals must be connected. The following figure shows the connections for 50A power modules. Keysight N6700C Series User's Guide... - Page 66 Output Groups. If you are not grouping output channels, first program both outputs to the desired output voltage. Then program the current limit of each output. In Current Priority mode, program the output current of Keysight N6700C Series User's Guide...
-
Page 67: Series Connections
1 and output 2 for remote sensing as shown in the figure on the right. Note that the +sense lead of output 1 must remain connected to the -sense terminal of output 2. Keysight N6700C Series User's Guide... - Page 68 Then program the voltage of each output so that the sum of both voltages equals the total desired operating voltage. The simplest way to accomplish this is to program each output to one half of the total desired operating voltage. Keysight N6700C Series User's Guide...
- Page 69 CC load cross regulation, CC source effect, and CC short term drift. These are twice the current programming accuracy (including the percentage portion) at all operating points. Load Transient Recovery Time: Load transient specifications are typically twice the single output. Keysight N6700C Series User's Guide...
-
Page 70: Auxiliary Measurement Connections
±60 VDC from ground. Refer to Auxiliary Voltage Measurements more information. When using the auxiliary voltage measurement input, no output terminal or measurement input terminal may be more than ± 60 VDC from any other terminal and chassis ground. Keysight N6700C Series User's Guide... -
Page 71: Interface Connections
If you have not already done so, install the Keysight IO Libraries Suite, which can be found at www.keysight.com/find/iolib. For detailed information about interface connections, refer to the Keysight Technologies USB/LAN/GPIB Interfaces Connectivity Guide included with the Keysight IO Libraries Suite. -
Page 72: Usb Connections
The front panel Lan indicator will come on when the LAN port has been configured. If you need to manually configure any instrument LAN settings, refer to Remote Interface Configuration for information about configuring the LAN settings from the front panel of the instrument. Keysight N6700C Series User's Guide... - Page 73 To add the instrument, you can request the Connection Expert to discover the instrument. If the instrument cannot be found, add the instrument using its hostname or IP address. If this does not work, refer to “Troubleshooting Guidelines” in the Keysight Technologies USB/LAN/GPIB Interfaces Connectivity Guide included with the Keysight IO Libraries Suite.
-
Page 74: Digital Port Connections
To add the instrument, you can request the Connection Expert to discover the instrument. If the instrument cannot be found, add the instrument using its hostname or IP address. If this does not work, refer to “Troubleshooting Guidelines” in the Keysight Technologies USB/LAN/GPIB Interfaces Connectivity Guide included with the Keysight IO Libraries Suite. - Page 75 When Positive polarity is selected, a logical true signal is a voltage high at the pin. When Negative polarity is selected, a logical true signal is a voltage low at the pin. For information on configuring the digital port functions, Refer to Using the Digital Control Port. Keysight N6700C Series User's Guide...
-
Page 77: Getting Started
Keysight N6700C Series User's Guide Getting Started Using the Front Panel Remote Interface Configuration... -
Page 78: Using The Front Panel
When the front panel display appears, you can use the front panel controls to enter voltage and current values. Select an Output Channel Press Channel to select the output channel that you wish to program. Keysight N6700C Series User's Guide... -
Page 79: Set The Output Voltage
Use the left and right navigation keys to navigate to the setting that you wish to change. In the display below, channel 1’s current setting is selected. Enter a value using the numeric keypad. Then press Enter. Keysight N6700C Series User's Guide... -
Page 80: Enable The Output
Press the Menu key to access the command menu. Press the left and right (t, u) navigation keys to move across the menu commands. Press the center Select key to select a command and move down to the next level in the menu. Keysight N6700C Series User's Guide... - Page 81 The menu path now lets you select from the available Protect commands on the second line. The OVP command is highlighted. The third line has a brief description of the OVP command. Press Select to select the OVP command. Keysight N6700C Series User's Guide...
- Page 82 The front panel Err indicator comes on if self-test fails or if other operating problems occur with your instrument. Press the Error key to display the list of errors. Refer to the Service and Maintenance section in the Operating and Service Guide document for further information. Keysight N6700C Series User's Guide...
-
Page 83: Remote Interface Configuration
30. The instrument ships with the address set to 5. Your computer’s GPIB interface card address must not conflict with any instrument on the interface bus. This setting is non-volatile; it will not be changed by power cycling or *RST. Use the front panel menu to change the GPIB address: Keysight N6700C Series User's Guide... -
Page 84: Lan Configuration
You can also reset the LAN to the as-shipped settings. This returns ALL LAN settings to the as-shipped values and restarts networking. All default LAN settings are listed under Non-volatile Settings in the Operating and Service Guide document . Keysight N6700C Series User's Guide... -
Page 85: Modifying The Lan Settings
Subnet Mask - This value is used to enable the instrument to determine if a client IP address is on the same local subnet. The same numbering notation applies as for the IP Address. When a client IP address is on a different subnet, all packets must be sent to the Default Gateway. Keysight N6700C Series User's Guide... - Page 86 DNS address information; you only need to change this if DHCP is unused or not functional. WINS configures the Windows service of the instrument. This is similar to the DNS service that translates domain names into IP addresses. To manually configure the DNS and WINS services: Keysight N6700C Series User's Guide...
- Page 87 6-character model number (e.g. N6700C), and serialnumber is the last five characters of the 10-character mainframe serial num- ber located on the label on the top of the unit (e.g. 45678 if the serial number is MY12345678). Keysight N6700C Series User's Guide...
-
Page 88: Using The Web Interface
If desired, you can control access to the Web interface using password protection. As shipped, no password is set. To set a password, click Log In on the top of the page. Refer to the on-line help for additional information about setting a password. Keysight N6700C Series User's Guide... -
Page 89: Using Telnet
IP address, and 5024 is the instrument’s telnet port. You should get a Telnet session box with a title indicating that you are connected to the power system. Type the SCPI commands at the prompt. Keysight N6700C Series User's Guide... -
Page 90: Using Sockets
Enable GPIB, Enable USB, and Enable LAN services Then press Select. If you cannot access the Admin menu, it may be password protected. Refer to Password Protection more information. The LAN must be enabled in order to enable the Web server. Keysight N6700C Series User's Guide... -
Page 91: Operating The Power System
Keysight N6700C Series User's Guide Operating the Power System Programming the Output Stepping the Output Synchronizing Output Turn-On Programming Output Lists Generating Arbitrary Waveforms Making Measurements Using the Digitizer External Data Logging Using the Digital Control Port Using the Protection Functions... -
Page 92: Programming The Output
Select a Channel View Front Panel Menu Reference SCPI Command Press the Meter key to toggle between single-channel and To select single-channel view: multiple-channel view. DISP:VIEW METER1 To select multiple-channel view: DISP:VIEW METER4 Keysight N6700C Series User's Guide... -
Page 93: Select An Output Channel
Front Panel Menu Reference SCPI Command Press the Current key. To set output 1 to 1 A: CURR 1,(@1) Enter a current value. Then press Select. To set all outputs to 2 A: CURR 2,(@1:4) Keysight N6700C Series User's Guide... -
Page 94: Set The Output Resistance
Resistance may be programmed in any of three overlapping ranges. The load module selects the range that corresponds to the resistance value that you program. The resistance selection must previously be selected under Output Mode. Keysight N6700C Series User's Guide... -
Page 95: Set The Output Power
N6791A N6792A High power range from 0.3 W to 100 W from 0.5 W to 200 W Low power range from 0.04 W to 10 W from 0.1 W to 20 W Keysight N6700C Series User's Guide... -
Page 96: Set The Output Mode
*RST values. Refer to Operating Mode Tutorial for information about priority mode operation. Set the Slew Rate The voltage slew rate determines the rate at which the voltage changes to a new programmed setting. Keysight N6700C Series User's Guide... -
Page 97: Enable The Output
35 and 50 milliseconds to complete its function. Conversely, output off may take between 20 and 25 milliseconds to complete its function. To mitigate these built-in delays, you can program the output to zero volts rather than using the output on/off function. Keysight N6700C Series User's Guide... -
Page 98: Sequence Multiple Outputs
Front Panel Menu Reference SCPI Command Not Available To leave the relays closed when output 1 is turned off: OUTP OFF,NOR,(@1) To leave the relays open when output 1 is turned on: OUTP ON,NOR,(@1) Keysight N6700C Series User's Guide... -
Page 99: Set The Output Bandwidth
50 to 200 mΩ 20,500 Hz High3 7–150 μF Remote only 6 inches (155 mm) 50 to 200 mΩ 8300 Hz Note 1 Refer to Keysight N678xA SMU Wiring for additional information on allowable load lead lengths. Keysight N6700C Series User's Guide... -
Page 100: Set The Output Turn-Off Mode
An input-short condition is annunciated by the SH status bit. Front Panel Menu Reference SCPI Command Select Output\Short. To short output 1: OUTP:SHOR ON,(@1) Check Enable short to short the input. Uncheck to open the short. Then press Select. Keysight N6700C Series User's Guide... -
Page 101: Enable Under-Voltage Inhibit
To set the voltage-on value to 3 V VOLT:INH:VON 3, (@1) Enter a voltage value in the Voltage On box. To enable and set the under-voltage inhibit function: Select either Live or Latched mode to enable. Then VOLT:INH:VON:MODE LATC|LIVE, (@1) press Select. Keysight N6700C Series User's Guide... -
Page 102: Stepping The Output
Resistance and Power trigger levels apply to If you have a model that has multiple ranges, the selected triggered settings must be within the same range that the output channel is presently operating in Keysight N6700C Series User's Guide... - Page 103 When the power system is turned on, the trigger system is in the idle state. In this state, the trigger system is disabled, ignoring all triggers. Initiating the trigger system moves it from the idle state to the initiated state, which enables the power system to receive triggers. To initiate the trigger system, use:. Keysight N6700C Series User's Guide...
- Page 104 The following commands return the trigger system to the idle state: Front Panel Menu Reference SCPI Command Select Transient\Control. ABOR:TRAN (@1) Navigate to Abort. Then press Select. Keysight N6700C Series User's Guide...
- Page 105 Use the Channel key to select the channel that is the To program channel 3’s step function to generate a trigger source. Select Transient\Step. trigger signal, use STEP:TOUT ON,(@3) Check Enable Trig out. Then press Select. Keysight N6700C Series User's Guide...
-
Page 106: Synchronizing Output Turn-On
Voltage Priority - Low Z mode; or Current Priority 35.9 ms Voltage Priority - High Z mode 34.9 ms With relays programmed closed Voltage Priority - Low Z mode; or Current Priority 5.2 ms Voltage Priority - High Z mode 7.3 ms Keysight N6700C Series User's Guide... - Page 107 10 ms, 20, ms, 30 ms, and 40 ms – the exact values originally specified. Step 1. Enable the Synchronization Function Output turn-on synchronization must be enabled on the mainframe as follows: Keysight N6700C Series User's Guide...
- Page 108 Note that you can program a common delay that is longer than the maximum delay offset of the mainframe. You may choose a longer value to make your program flexible for future configurations that may have power modules with longer delay offsets. However, if you program a value that is Keysight N6700C Series User's Guide...
-
Page 109: Synchronizing Multiple Mainframes
In this example, pin 6 will be configured as the output On control. Pin 7 will be configured as the output Off control. The ground or Common pins also need to be connected together. Keysight N6700C Series User's Guide... -
Page 110: Synchronization Operation
If a mainframe has its ON/OFF key coupled (located in the System\Preferences\Keys menu), turning the output on or off on any coupled channel will cause all coupled channels as well as non-coupled channels on that mainframe to turn on or off. Keysight N6700C Series User's Guide... -
Page 111: Programming Output Lists
For convenience, a list may be programmed with only one step or value. In this case, a single- step list is treated as if it had the same number of steps as the other lists, with all values being equal to the one value. Keysight N6700C Series User's Guide... -
Page 112: Program An Output Pulse Or Pulse Train
Front Panel Menu Reference SCPI Command Select Transient\List\Pace. LIST:STEP AUTO,(@1) Select Dwell paced. Then press Select. If you only wish to program a single pulse, skip steps 4 and 5 and go to step 6. Keysight N6700C Series User's Guide... - Page 113 Select a trigger source from the following: Bus Selects GPIB device trigger, *TRG, or <GET> (Group Execute Trigger). Imm An immediate trigger command either from the front panel or over the bus will generate an immediate trigger. Keysight N6700C Series User's Guide...
-
Page 114: Program An Arbitrary List
Step 1. Set the voltage, current, power, or resistance function for which you want to generate a list to List mode. This example programs a voltage list. Resistance and Power modes apply to Keysight N6700C Series User's Guide... - Page 115 The dwell time associated with each step determines the minimum time that the output remains at the step. If a trigger is received before the dwell time completes, the trigger is ignored. To ensure that no triggers are lost in a trigger-paced list, set the dwell time to zero. Keysight N6700C Series User's Guide...
- Page 116 LIST:COUN 2,(@1) Enter the number of List repetitions (2). Then press Select. Step 8. Select a trigger source, then initiate, and trigger the list. This is previously described under Program an Output Pulse or Pulse Train. Keysight N6700C Series User's Guide...
-
Page 117: Generating Arbitrary Waveforms
Each waveform can be set to repeat continuously or repeat a specific number of times. For example, to generate a pulse train of 10 identical pulses, you can program the parameters for one pulse and then specify that you want it to repeat 10 times. Keysight N6700C Series User's Guide... -
Page 118: Configuring Step Arbs
Step 3. Configure the final steps common to all Arbs. Refer to Configuring Steps Common to all Arbs the end of this section. Configuring Pulse Arbs Step 1. Select the Arb Type and Shape. Power and Resistance types apply to Keysight N6700C Series User's Guide... -
Page 119: Configuring Ramp Arbs
Select a Voltage, Current, Power, or Resistance Arb Type. ARB:FUNC:TYPE VOLT|CURR|POW|RES,(@1) ARB:FUNC:SHAP RAMP,(@1) Then select the Ramp Shape. Then press Select. Step 2. Configure the ramp parameters. The parameters apply to the selected Arb type (Voltage, Current, Power, or Resistance). Keysight N6700C Series User's Guide... -
Page 120: Configuring Trapezoid Arbs
Step 2. Configure the trapezoid parameters. The parameters apply to the selected Arb type (Voltage, Current, Power, or Resistance). Enter the values for the level before and during the top of the trapezoid. Enter the time before the trapezoid, the rise-time, top-time, fall-time, and the time after the trapezoid. Keysight N6700C Series User's Guide... -
Page 121: Configuring Staircase Arbs
Enter the Start and End level in volts. Then press Select. ARB:VOLT:STA:END 10,(@1) ARB:VOLT:STA:STAR:TIM 0.25,(@1) Select Transient\Arb\Config\Stair\Time. ARB:VOLT:STA:TIM 0.5,(@1) Enter the Start, Stair, and End times in seconds. ARB:VOLT:STA:END:TIM 0.25,(@1) ARB:VOLT:STA:NST 6,(@1) Enter the number of steps. Then press Select. Keysight N6700C Series User's Guide... -
Page 122: Configuring Exponential Arbs
SCPI Command Select Transient\Arb\Function. To select a current, voltage, power, or resistance sinusoid Arb, use: Select a Voltage, Current, Power, or Resistance Arb Type. ARB:FUNC:TYPE VOLT|CURR|POW|RES,(@1) ARB:FUNC:SHAP SIN,(@1) Then select the Sine Shape. Then press Select. Keysight N6700C Series User's Guide... -
Page 123: Configuring Constant-Dwell Arbs
Step 2. Configure the CD parameters. The parameters apply to the selected Arb type (Voltage, Current, Power, or Resistance). Enter the dwell time that will be used for each point in the CD Arb. Program the number of points in the CD Arb. Assign a value for each point. Keysight N6700C Series User's Guide... -
Page 124: Configuring An Arb Sequence
The following figure illustrates a sequence comprised of a pulse Arb, a ramp Arb, and a sine Arb. The repeat count value indicates how many times each Arb repeats before moving to the next type. Keysight N6700C Series User's Guide... - Page 125 ARB:SEQ:TERM:LAST ON,(@1) Set a repeat count for the entire sequence. To make the entire sequence repeat twice: ARB:SEQ:COUN 3,(@1) To set up the transient trigger system and trigger the sequence: VOLT:MODE ARB,(@1) INIT:TRAN (@1) *TRG Keysight N6700C Series User's Guide...
-
Page 126: Configuring User-Defined Arbs
1 runs the Arb once. Front Panel Menu Reference SCPI Command Select Transient\Arb\Repeat. To specify an Arb count, use: ARB:COUN 1,(@1) Specify a repeat count, or run the Arb continuously. Then press Select. Keysight N6700C Series User's Guide... -
Page 127: Running The Arb
INIT:TRAN (@1) Select Initiate. TRIG:TRAN (@1) Wait a second, then select Trigger to generate an Alternatively, you can also program a *TRG or an IEEE-488 immediate trigger signal regardless of the trigger source <get> command. setting. Keysight N6700C Series User's Guide... - Page 128 INIT:TRAN command. If a trigger occurs before the trigger system is ready for it, the trigger will be ignored. You can test the WTG_tran bit (bit 4) in the operation status register to know when the instrument is ready to receive a trigger after being initiated. Keysight N6700C Series User's Guide...
-
Page 129: Making Measurements
3.06 A range To select, program values > 0.1 A and ≤ 3.06 A. 0.10 A range To select, program values > 200 µA and ≤ 0.1 A. 200 μA range (option 2UA) To select, program values ≤ 200 µA. Keysight N6700C Series User's Guide... -
Page 130: Seamless Measurements
DC voltage measurements between +/-20 VDC. The auxiliary voltage measurement input is isolated from other commons. It has a bandwidth of about 2 kHz. It has one input range: −20 to +20 VDC. Keysight N6700C Series User's Guide... - Page 131 When the auxiliary voltage measurement terminals are left unconnected, the front panel meter will indicate a voltage reading of approximately 1.6V. This is a normal indication which does not affect the voltage measurement once the auxiliary measurement terminals are connected. Keysight N6700C Series User's Guide...
-
Page 132: Using The Digitizer
MIN - is the minimum value of the digitized measurement. Array queries are also available to return ALL values in the voltage and current measurement buffer. No averaging is applied, only raw data is returned from the buffer. Keysight N6700C Series User's Guide... -
Page 133: Programming The Digitizer
N678xA SMU and with Option SMR. Seamless measurement autoranging enables a wide dynamic measurement range with no data lost when transitioning across ranges. Seamless autoranging does not include the 10 μA range, which must be selected manually. Keysight N6700C Series User's Guide... - Page 134 Values above 20.48 microseconds are rounded to the nearest 20.48- microsecond increment when the resolution is set to RES20. Values above 40.96 microseconds are rounded to the nearest 40.96-microsecond increment when the resolution is set to RES40. Keysight N6700C Series User's Guide...
- Page 135 SCPI Command Select Measure\Window. To select the Hanning window function: SENS:WIND HANN,(@1) Select Auto from the voltage or current dropdown menu. Then press Select. Trigger the Measurement The following commands trigger and return measurement data: Keysight N6700C Series User's Guide...
- Page 136 This may tie up the computer if the measurement trigger does not occur immediately. You can test the MEAS_active bit in the operation status register to know when the measurement has completed as explained in the following section. Keysight N6700C Series User's Guide...
-
Page 137: Synchronizing Digitizer Measurements
The measurement system lets you capture data before, after, or at the trigger signal. As shown in the following figure, you can move the block of data being read into the acquisition buffer with reference to the trigger. This allows pre- or post-trigger data sampling. Keysight N6700C Series User's Guide... - Page 138 Pin<n> - Selects a specific pin that is configured as a Trigger Input on the digital port. <n> specifies the pin number. The selected pin must be configured as a Trigger Input in order to be used as a trigger source (see Using the Digital Port). Keysight N6700C Series User's Guide...
- Page 139 Refer to Status Tutorial in the Operating and Service Guide document for more information. It will be necessary to initiate the measurement trigger system each time a triggered measurement is desired. Keysight N6700C Series User's Guide...
- Page 140 To return the high or low level of a pulse: FETC:VOLT:HIGH? (@1) FETC:CURR:HIGH? (@1) FETC:VOLT:LOW? (@1) FETC:CURR:LOW? (@1) To return the maximum or minimum value: FETC:VOLT:MAX? (@1) FETC:CURR:MAX? (@1) FETC:VOLT:MIN? (@1) FETC:CURR:MIN? (@1) To return power: FETC:POW? (@1) Keysight N6700C Series User's Guide...
- Page 141 If a bit value of 32 is returned in the query, the MEAS_active bit is true, and the measurement is NOT complete. When the MEAS_active bit is false, you can retrieve the measurement. Refer to Status Tutorial in the Operating and Service Guide document for more information. Keysight N6700C Series User's Guide...
-
Page 142: External Data Logging
Data viewing No front panel view or control. Data must be collected and viewed externally. Select the Measurement Function and Range The following commands select a measurement function: Keysight N6700C Series User's Guide... -
Page 143: Specify The Integration Period
The integration period can be set from a minimum of 102.4 microseconds to a maximum of 60 seconds. Front Panel Menu Reference SCPI Command Not available To set an integration period of 600 microseconds: SENS:ELOG:PER 0.0006, (@1) Keysight N6700C Series User's Guide... -
Page 144: Select The Elog Trigger Source
Bus - Selects GPIB device trigger, *TRG, or <GET> (Group Execute Trigger). External - Selects all digital port pins that have been configured as trigger inputs. Immediate - Selects the immediate trigger source. This triggers the data logger immediately when initiated Keysight N6700C Series User's Guide... -
Page 145: Initiate And Trigger The Elog
Elog sensing. If all functions are enabled, then one record will contain the following data in the specified order: Current average Current minimum Current maximum Voltage average Keysight N6700C Series User's Guide... -
Page 146: Terminate The Elog
Binary data is returned as a comma-separated list of data for each channel requested. The data is a definite length binary block, with the byte order specified by the FORMat:BORDer command. Terminate the Elog Front Panel Menu Reference SCPI Command Not available ABOR:ELOG, (@1) Keysight N6700C Series User's Guide... -
Page 147: Using The Digital Control Port
The digital I/O pin can be used to control both relay circuits as well as digital interface circuits. The following figure illustrates typical relay circuits as well as digital interface circuit connections using the digital I/O functions. Keysight N6700C Series User's Guide... -
Page 148: Digital Input
NEGative means a falling edge. Pin 8 is the signal common for the trigger pins. When configured as a trigger input, you can apply either a negative-going or a positive-going pulse to the designated trigger input pin. The trigger latency is 5 microseconds. The minimum pulse width is 4 Keysight N6700C Series User's Guide... -
Page 149: Fault Output
The polarity of pin 3 can also be configured. The input is level triggered. The signal latency is 5 microseconds. Pin 8 is the common for pin 3. Keysight N6700C Series User's Guide... -
Page 150: Fault/Inhibit System Protection
Note that when using the Fault/Inhibit signals in this manner, both signals must be set to the same polarity. Keysight N6700C Series User's Guide... -
Page 151: Output State
Only pins 4 through 7 can be configured to control the output state. This function lets you connect multiple Keysight N6700 mainframes together and synchronize the output on/off sequence across mainframes. Refer to Synchronizing Output Turn-On for detailed information. Keysight N6700C Series User's Guide... -
Page 152: Using The Protection Functions
INH - The Inhibit input (pin 3) on the rear panel digital connector can be programmed to act as an external shutdown signal. Refer to Inhibit Input for further information. Keysight N6700C Series User's Guide... -
Page 153: Set The Over-Voltage Protection
When over-current protection is enabled, the power system turns off the output if the output current reaches the current limit setting and transitions from CV to CC operation. Front Panel Menu Reference SCPI Command Select Protect\OCP To enable OCP: CURR:PROT:STAT ON, (@1) Check Enable to enable OCP. Then press Select. Keysight N6700C Series User's Guide... -
Page 154: Set The Over-Power Protection
110% of the module's power rating. You can program an over-power protection delay to prevent the over-power protection function from being triggered during the delay time. This Keysight N6700C Series User's Guide... -
Page 155: Couple Output Protection
OSC status annunciator. Front Panel Menu Reference SCPI Command Select Protect\OSC To enable oscillation protection for output 1 and Check the OSC box. Then press Select. OUTP:PROT:OSC ON, (@1,2) Keysight N6700C Series User's Guide... -
Page 156: Watchdog Timer Protection
Then, clear the protection function as follows: Front Panel Menu Reference SCPI Command Select Protect\Clear To clear a protection fault: OUTP:PROT:CLE (@1) Select Clear. Keysight N6700C Series User's Guide... -
Page 157: System-Related Operations
Front Panel Menu Reference SCPI Command Select System\About\Frame For mainframe information: *IDN? For information about the power module in channel 1: SYST:CHAN:MOD? (@1) Select System\About\Module SYST:CHAN:OPT? (@1) SYST:CHAN:SER? (@1) Keysight N6700C Series User's Guide... -
Page 158: Instrument State Storage
0 (RCL0) at power-on. Front Panel Menu Reference SCPI Command Select States\PowerOn. OUTP:PON:STAT RCL0 Select Recall State 0. Then press Select. Output Groups Output grouping does not apply to Keysight Models N678xA SMU. Keysight N6700C Series User's Guide... - Page 159 To ungroup all channels: SYST:GRO:DEL:ALL In the matrix, place each output channel in its own separate group. Reboot the unit for the changes to take effect. Front Panel Menu Reference SCPI Command Cycle AC power. SYST:REB Keysight N6700C Series User's Guide...
-
Page 160: Front Panel Display
If the Wake on I/O function is selected, the display is restored whenever there is activity on the remote interface. This also resets the timer on the screen saver. As shipped, Wake on I/O is active. Keysight N6700C Series User's Guide... -
Page 161: Front Panel Keys
Front Panel Menu Reference SCPI Command Select System\Preferences\Keys Not available Check Enable key clicks to enable key clicks. Press Select. Uncheck to disable key clicks. You can configure the On/Off key to enable or disable ALL outputs. Keysight N6700C Series User's Guide... -
Page 162: Password Protection
If the message "Locked out by internal switch setting" or "Calibration is inhibited by switch setting" appears, the internal switch is set to prevent the password from being changed. Refer to Calibration Switches in the Operating and Service Guide document for more information. Keysight N6700C Series User's Guide... -
Page 163: Mainframe Power Allocation
If the power limit is left at the maximum rating, then the power module will not enable its power limit function. Keysight N6700C Series User's Guide... -
Page 164: Power Limit Allocation
Front Panel Menu Reference SCPI Command Select States\Reset. *RST POW:LIM MAX, (@1:4) When an output channel is set to MAX, it returns to its maximum rated value, and the power limit function will not activate. Keysight N6700C Series User's Guide... -
Page 165: Operating Mode Tutorial
In the following figure, operating point 1 is defined by a fixed load line traversing the positive operating quadrant in the constant voltage region. Operating point 2 is defined by a fixed load line traversing the positive operating quadrant in the constant current region. Keysight N6700C Series User's Guide... -
Page 166: Multi-Quadrant Operation
With tracking enabled, the negative current limit tracks the positive current limit setting. With tracking disabled, you can set different values for the positive and negative current limits. Keysight N6700C Series User's Guide... - Page 167 OV or OV- and the PROT status bits will be set. Either the user-defined over-voltage setting or the local over-voltage function can trip the over- voltage protection. Keysight N6700C Series User's Guide...
- Page 168 Either a LIM+ (positive voltage limit) or LIM- (negative voltage limit) status flag is set to indicate that either the positive or negative voltage limit has been reached. Keysight N6700C Series User's Guide...
-
Page 169: Keysight N679Xa Load Module Operation
Voltage Priority Mode In this mode, the load module will attempt to sink enough current to maintain the input voltage at its programmed value. Keysight N6700C Series User's Guide... - Page 170 In this mode, the load module will regulate the power being drawn from the DUT according to the programmed constant power value. The load module regulates the input power by measuring the input voltage and current and adjusting the input power based on data streamed from the measurement ADCs. Keysight N6700C Series User's Guide...
- Page 171 The load module automatically selects the resistance range that best corresponds to the resistance value that you program. If the resistance value falls in a region where ranges overlap, the load selects the range with the highest resolution for the resistance value Keysight N6700C Series User's Guide...
-
Page 172: Index
DC Offset Voltage 80 mode 96 introduction 14 digital input state 151 state storage 158 configuring 148 turn-on delay 106 Instrument ID 157 connections 148 wiring 55 digital IO Output Step 102 configuring 147 Output Voltage 79 Keysight N6700C Series User's Guide... - Page 173 over-current 152 Set DC Offset Voltage 80 over-power 152 Set Output Current 79 over-temperature 152 Set Output Voltage 79 margin 155 synchronize over-voltage 152 multiple mainframes 109 turn on delay 106 local 64 system protection connections 150 Password 162 power-on state 158 Voltage 79 Power Allocation 163 Power module...
