Summary of Contents for Viking Range TurboChef 7 Series

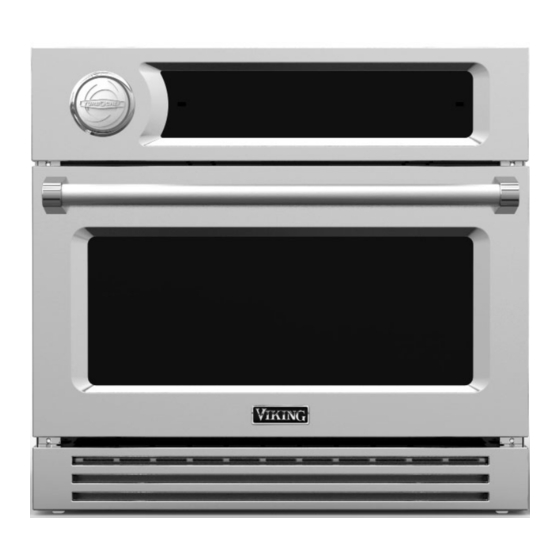

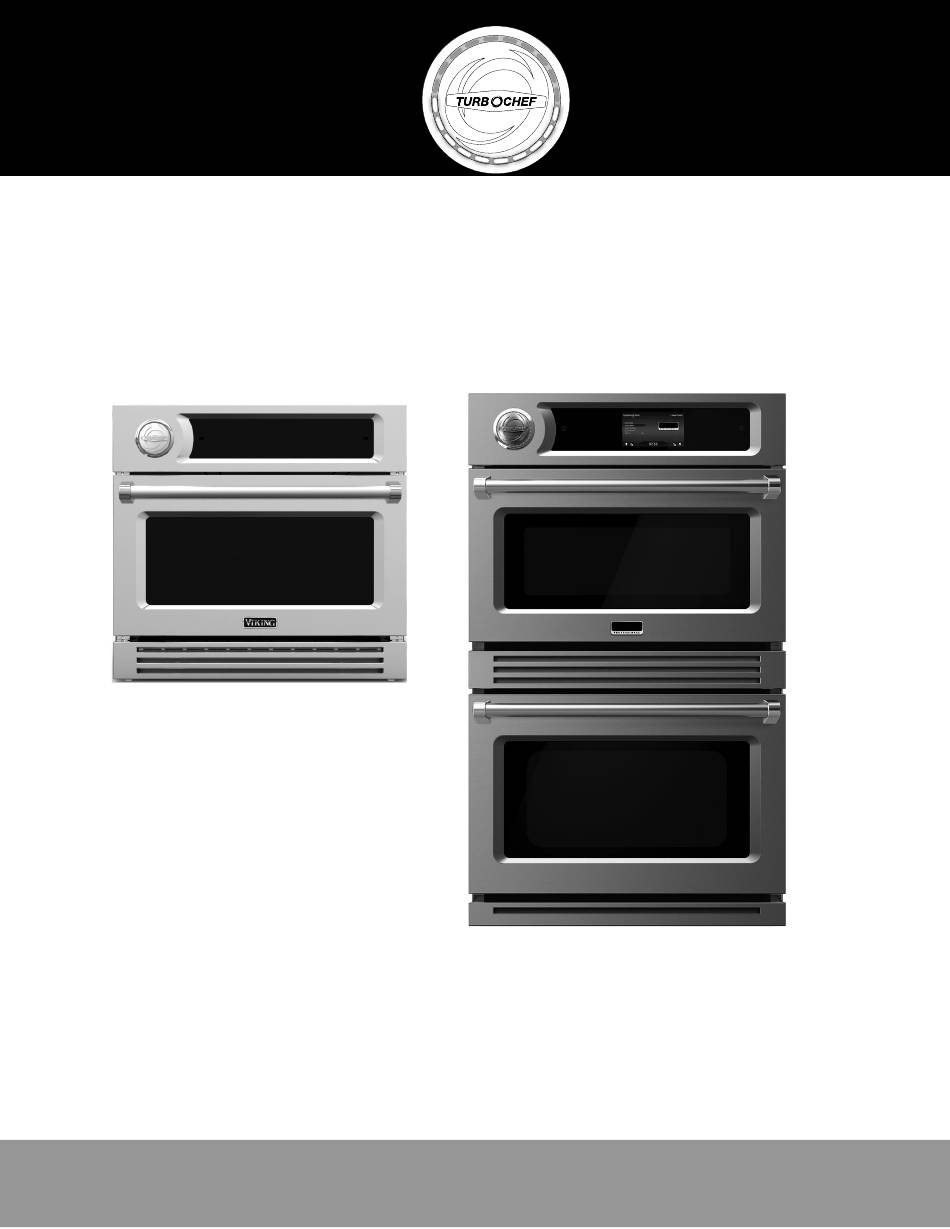

- Page 1 Installation Guide 7 SERIES Professional TurboChef Speedcook Ovens VSOT730 VDOT730...
-
Page 2: Table Of Contents
Table of Contents Warnings and Important Information _________________________________ 3 Dimensions _____________________________________________________ 6 Specifi cations ____________________________________________________ 8 Cutout Dimensions________________________________________________ 9 General Information ______________________________________________ 11 Installation _____________________________________________________ 12 Performance Checklist ____________________________________________ 16 Control Panel ___________________________________________________ 16 Service & Registration ____________________________________________ 17... -
Page 3: Warnings And Important Information
IMPORTANT – Please Read and Follow! • Before beginning, please read these Your safety and the safety of others is instructions completely and carefully. very important. • DO NOT remove permanently affi xed labels, We have provided many important safety warnings, or plates from product. - Page 4 • The required use of a GFI is normally related to the location of a receptacle with respect to any signifi cant sources of water or moisture. • Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not installed properly or do not meet the requirements below.
- Page 5 IMPORTANT – Please Read and Follow! WARNING DANGER ELECTRICAL SHOCK To prevent possible damage to cabinets and cabinet fi nishes, use only materials and HAZARD fi nishes that will not discolor or delaminate To avoid risk of electrical shock, and will withstand temperatures up to personal injury or death;...
-
Page 6: Dimensions
Dimensions - VDOT - 1 / ( 7 1 SIDE VIEW 7/16" ” * 8 ” (0.44 cm) ( 6 1 / 8 ” 3 - 7 ( 9 . 4 ” - 1 / / 8 ” ( 7 6 ( 1 0 3 - 1 ”... - Page 7 Dimensions - VSOT 4” (10.2 cm) 3-7/8” 3-1/8” (9.8 cm) (7.9 cm) 28-3/8” (72.1 cm) 28-7/8” (73.3 cm) SIDE VIEW 7/16" (0.44 cm) TOP VIEW 24"* (61.0 cm) 1" 1" (2.5 cm) (2.5 cm) *Includes standoff s - DO NOT REMOVE the standoff s...
-
Page 8: Specifi Cations
Headline Specifi cations TurboChef Oven Description VDOT730 VSOT730 Product width outside cabinet 30-1/16" (76.5 cm) Product height outside cabinet 50-7/8" (129.2 cm) 28-7/8" (73.3 cm) Product depth outside cabinet cabinet to front of display/doors — 3-1/8" (7.9 cm) with bottom door open — 20-1/2" (52.1 cm) Cutout height 50-5/8"... -
Page 9: Cutout Dimensions
Headline Cutout Dimensions - VDOT WARNING Wall ovens can not be installed side-by-side. 1 ” t i o ( 2 . t i o 4 ” ( 1 0 5 ” ( 1 2 - 1 / ( 7 2 ”... - Page 10 Cutout Dimensions - VSOT WARNING Wall ovens can not be installed side-by-side. Single wall ovens can not be installed undercounter t i o 1 ” ( 2 . t i o - 5 / 8 ” ( 7 2 To obtain proper fi t of the - 1 / ”...
-
Page 11: General Information
General Information Recommendations for • All openings in the wall behind the appliance or in the fl oor under the appliance should be sealed. Moving • Keep appliance area clear and free from • The appliance is heavy – use extreme care combustible materials, gasoline and other when handling! fl ammable vapors. -
Page 12: Installation
Installation • BE SURE that support for this appliance is Attach the skid plate before installing the two perpendicular to the front facing of the wall or slide rails. If possible, the rails should be placed cabinet before you perform the installation. on top of any studs that might be located under the cabinet interior fl oor. - Page 13 Headline Installation (cont.) Open lower oven door completely. Fold latches backward until locked in place Lift door up and out. Slowly close until latches stop door. Remove racks. Unscrew pallet screws from side of oven.
- Page 14 Headline Installation (cont.) WARNING ELECTRICAL FIRE HAZARD White Improper connection of aluminum house Neutral Green wiring to copper leads can result in an electrical hazard or fi re. Use only connectors designed for joining copper to aluminum and follow the manufacturer's Black recommended procedure closely.
- Page 15 Headline Installation (cont.) Remove center grille by removing screws underneath grille. Attach screws thru the framing from front of unit on both Push grille up and pull out. sides in the center and bottom. There are no mounting holes at the top Replace center grille by pushing in and down.
-
Page 16: Performance Checklist
Performance Checklist – Lower Oven Headline Loading the Software This fi rst time you turn on the oven after installation, the oven will load the software. This process should take no longer than 10 minutes. DO NOT attempt to operate the oven while the software is loading. Note: If necessary to relaunch the software, hold down the left (upper) power off button for 5 seconds. -
Page 17: Service & Registration
• Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at 1-888-(845- 4641), or write to:... - Page 20 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com F21300C EN (111518)
