USE/INSTALLATION INSTRUCTIONS
VIKING RANGE CORPORATION
111 Front Street
Greenwood, Mississippi (MS) USA
BUILT-IN MULTI-USE CHAMBER
38930
Retain for Future Reference
(662) 455-1200
IMPORTANT: PLEASE READ AND FOLLOW
•Before beginning, please read these instructions completely and carefully.
•The installer should leave these instructions with the consumer for future reference.
GENERAL INFORMATION
1. All openings in the wall behind the appliance and under the appliance shall be sealed.
2. Do not obstruct flow of ventilation air.
3. The misuse of doors can result in possible hazards and/or injuries.
UNPACK
1. Locate the unit near installation area.
2 . Remove all banding from around carton. Lift carton up and off of the multi-use chamber.
3. Remove all tape and packaging material from the outside and inside of the chamber.
4. Keep all carton packaging until your multi-use chamber has been thoroughly inspected and found to be in good
condition.

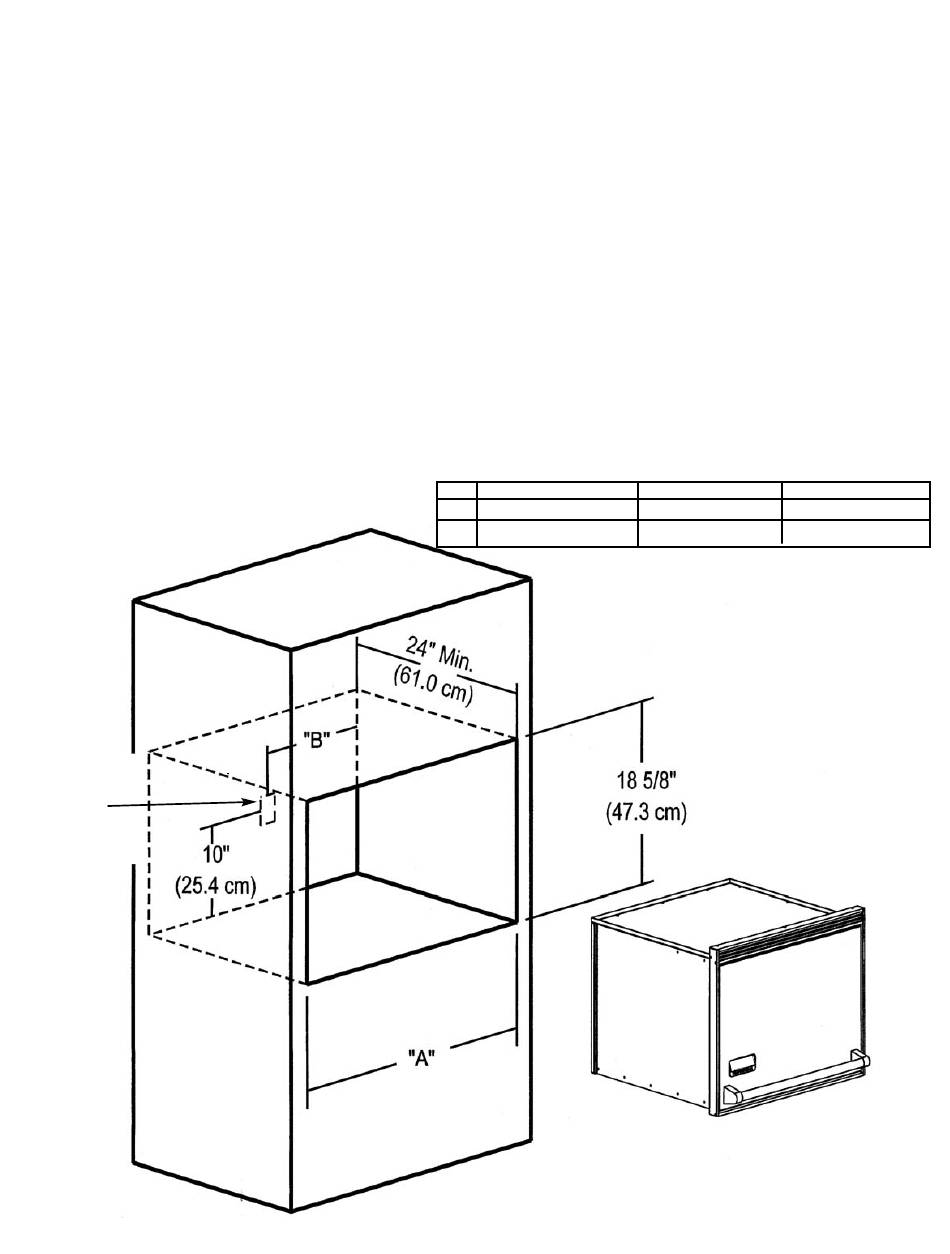

CABINET CUTOUT
VMWC171
VMWC101
VMWC161
A
25" (63.5 cm)
28" (71.1 cm)
33 3/4" (85.7 cm)
B
12 1/2" (31.75 cm)
14" (35.55 cm)
16 7/8" (42.9 cm)
Recommended
Electrical
Outlet
Location
1
