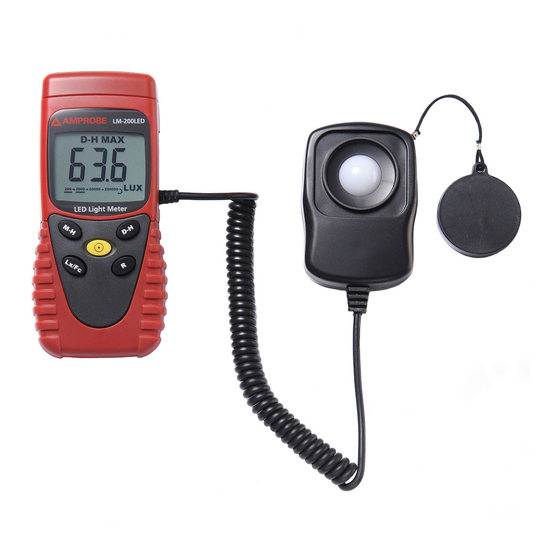

- Page 1 LM-200LED LED Light Meter Users Manual...
- Page 3 LM-200LED LED Light Meter Users Manual LM-200LED_Rev04 © 2015 Amprobe Test Tools. All rights reserved.
- Page 4 Please check the “Where to Buy” section on www.amprobe.com for a list of distributors near you. Additionally, in the United States and Canada In-Warranty repair and replacement units can also be sent to a Amprobe® Test Tools Service Center. Non-Warranty Repairs and Replacement – US and Canada Non-warranty repairs in the United States and Canada should be sent to a Amprobe®...
- Page 5 LM-200LED ➊ ➏ Light Sensor Measurement Range Selection ➋ ➐ Display(LCD) DATA HOLD ➌ ➑ MAX HOLD Light sensor Zero Adjustment ➍ Sensor Protective Cap Lux / foot candles ➎ Power Button: ON/OFF...
-
Page 6: Table Of Contents
LM-200LED LED Light Meter CoNtENtS SYMBOLS ......................1 UNPACKING AND INSPECTION ................1 INTRODUCTION ....................1 OPERATION ......................1 Lx / fc ........................ 2 Measurement Range ..................2 Maximum Hold ....................2 Data Hold ....................... 2 Zero Adjustment .................... 2 SPECIFICATIONS .................... -
Page 7: Symbols
SyMboLS Caution! Refer to the Complies with EU � � explanation in this directives Manual Do not dispose of this � Conforms to relevant � product as unsorted Australian standards. municipal waste. � Warning and Precautions • Do not operate the meter in explosive gas (material), combustible gas (material) steam or filled with dust. -
Page 8: Lx / Fc
5. Press button to obtain the maximum reading during measurement. 6. Press button to freeze the present reading on the display. � Always put the sensor protective cap back when the instrument is not in use. Lx / fc Press button to select the measurement unit. -
Page 9: Maintenance And Repair
Temperature / Humidity Operating: -10 °C to 40 °C (14˚F to 104˚F), 0 to 80 %RH. Storage: -10 °C to 50 °C (14˚F to 122˚F), 0 to 70 %RH. Power Supply: 9V NEDA 1604, IEC 6F22, JIS 006P battery Battery life: typical 200 hours (Alkaline) Auto Power Off: approx 6 min... -
Page 10: Battery Replacement
Except for the replacement of the battery, repair of the meter should be performed only by a Factory Authorized Service Center or by other qualified instrument service personnel. The front panel and case can be cleaned with a mild solution of detergent and water. Apply sparingly with a soft cloth and allow to dry completely before using. - Page 12 Visit www.Amprobe.com for • Catalog • Application notes • Product specifications • User manuals Please Recycle...
