- Page 1 LM-200LED LED Light Meter Users Manual For detailed specifications and ordering info go to www.TestEquipmentDepot.com...
- Page 2 LM-200LED LED Light Meter Users Manual LM-200LED_Rev03 © 2013 Amprobe Test Tools. All rights reserved.
- Page 3 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase unless local laws require otherwise. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Amprobe’s behalf. To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Test Tools Service Center or to an Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR STAUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you. Repair All test tools returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company’s name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the meter. Non- warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Amprobe® Test Tools. In-Warranty Repairs and Replacement – All Countries Please read the warranty statement and check your battery before requesting repair. During the warranty period any defective test tool can be returned to your Amprobe® Test Tools distributor for an exchange for the same or like product.

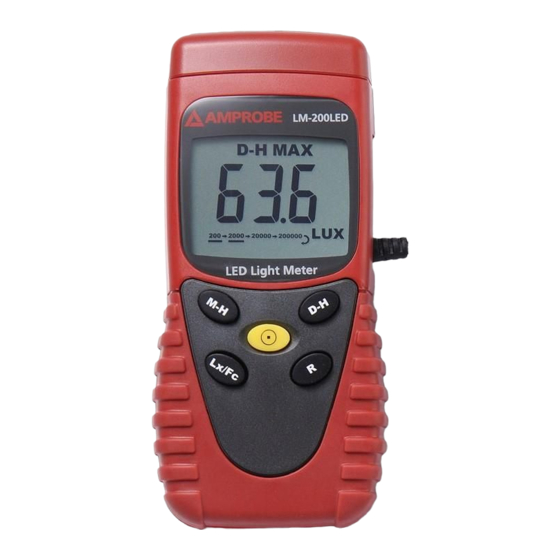

- Page 4 LM-200LED ➊ ➏ Light Sensor Measurement Range Selection ➋ ➐ Display(LCD) DATA HOLD ➌ ➑ MAX HOLD Light sensor Zero Adjustment ➍ Sensor Protective Cap Lux / foot candles ➎ Power Button: ON/OFF...
-
Page 5: Table Of Contents
LM-200LED LED Light Meter CoNtENtS SYMBOLS ......................1 UNPACKING AND INSPECTION ................1 INTRODUCTION ....................1 OPERATION ......................1 Lx / fc ........................ 2 Measurement Range ..................2 Maximum Hold ....................2 Data Hold ....................... 2 Zero Adjustment .................... 2 SPECIFICATIONS ....................2 MAINTENANCE AND REPAIR ................3 Battery Replacement ..................4... -
Page 6: Symbols
Manual Do not dispose of this � Conforms to relevant � product as unsorted Australian standards. municipal waste. � Warning and Precautions • Do not operate the meter in explosive gas (material), combustible gas (material) steam or filled with dust. • The light sensor is calibrated to CIE standard incandescent lamp at 2856 °K and may give different readings for spectrums from other lamp types. UNPACkINg AND INSPECtIoN Your shipping carton should include: LM-200LED LED light meter 9 volt battery Users Manual Carrying case If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange. INtRoDUCtIoN The instrument measures light output of LED sources for all visible light ranges. The lumen is a measure of total amount of visible lights emitted by a source. The lumen is defined as in relation to the candela as 1 lm = 1 cd.sr. A foot-candle is the luminance cast on a surface by a one-candela source one foot away. One foot-candela is equal to one lumen per square foot or approximately 10.764 lux. oPERAtIoN 1. Press the � button to turn power on or off 2. Remove sensor protective cap and place the sensor perpendicular to the light. -
Page 7: Lx / Fc
5. Press button to obtain the maximum reading during measurement. 6. Press button to freeze the present reading on the display. � Always put the sensor protective cap back when the instrument is not in use. Lx / fc Press button to select the measurement unit. 1 foot-candle = 10.764 Lux and 1 Lux = 0.09290 foot-candle Measurement Range Press button to select the measurement range. An “OL.” Symbol on display indicates over-range, select a higher range for measurement. Maximum Hold Press button to obtain the maximum reading during measurement (MAX symbol shows on display). Press button again to exit maximum hold mode (MAX symbol disappears on display). Data Hold Press button to freeze present reading on display (D-H symbol shows... -
Page 8: Maintenance And Repair
Temperature / Humidity Operating: -10 °C to 40 °C (14˚F to 104˚F), 0 to 80 %RH. Storage: -10 °C to 50 °C (14˚F to 122˚F), 0 to 70 %RH. Power Supply: 9V NEDA 1604, IEC 6F22, JIS 006P battery Battery life: typical 200 hours (Alkaline) Auto Power Off: approx 6 min Dimension (Base): 130 x 63 x 38 mm (5.1 x 2.5 x 1.5”) Dimension (Sensor): 80 x 55 x 29 mm (3.2 x 2.2 x 1.1”) Weight: 220 g (.48 lb.) include battery � -EMC: EN61326-1 This product complies with requirements of the following European Community Directives: 89/336/EEC (Electromagnetic Compatibility) and 73/23/EEC (Low Voltage) as amended by 93/68/EEC (CE Marking). However, electrical noise or intense electromagnetic fields in the vicinity of the equipment may disturb the measurement circuit. Measuring instruments will also respond to unwanted signals that may be present within the measurement circuit. Users should exercise care and take appropriate precautions to avoid misleading results when making measurements in the presence of electronic interference. Illumination: Measuring Range: 200, 2000, 20000, 200000 Lux 20, 200, 2000, 20000 Foot candles Accuracy: ±3% for white LED light (Calibrated to standard incandescent lamp 2856º K and corrected LED day white-light spectrum). ± 8% for other visible light sources Angle deviation from cosine Characteristics 30 ° ± 2 % 60 ° ± 6 % 80 ° ± 25 % Cosine Angular corrected per JIS C 1609:1993 and CNS 5119 general A class specifications. -
Page 9: Battery Replacement
Except for the replacement of the battery, repair of the meter should be performed only by a Factory Authorized Service Center or by other qualified instrument service personnel. The front panel and case can be cleaned with a mild solution of detergent and water. Apply sparingly with a soft cloth and allow to dry completely before using. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning. battery Replacement 1. Turn off the meter and slide out the battery cover. Replace the battery with a NEDA type 1604 or equivalent 9V alkaline battery. Replace the cover. 2. Remove battery when the instrument is not used for extended period. OPEN Battery Replacement...
