Zephyr Essentials Modena Island ZMD-M90AS Use, Care And Installation Manual page 14

Top support frame
Top duct covers
Bottom duct covers
Bottom support frame
holes.
should overlap the smaller holes.
Note: Because less of the top duct covers will be exposed, it may be necessary to measure and cut the thick
trim pieces before installing them into the top duct covers.
* If using hood in recirculating mode you must install the air diverter plate before assembling the duct covers.
Turn to page 13 for instructions.
www.zephyronline.com
1
2
5 Thick trim piece (top)
4
Thin trim piece (bottom)
3

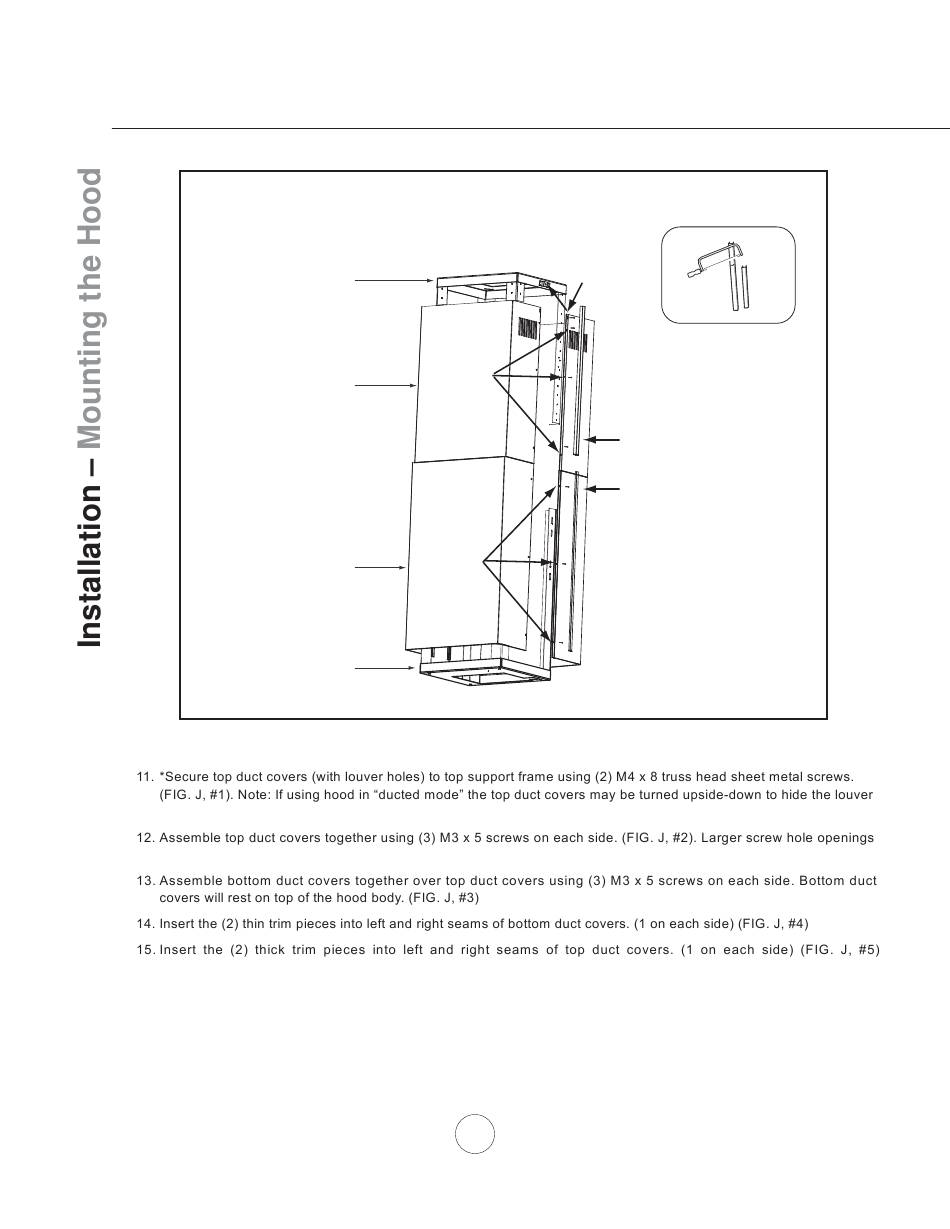

FIG. J
12
cut trim piece
if necessary
