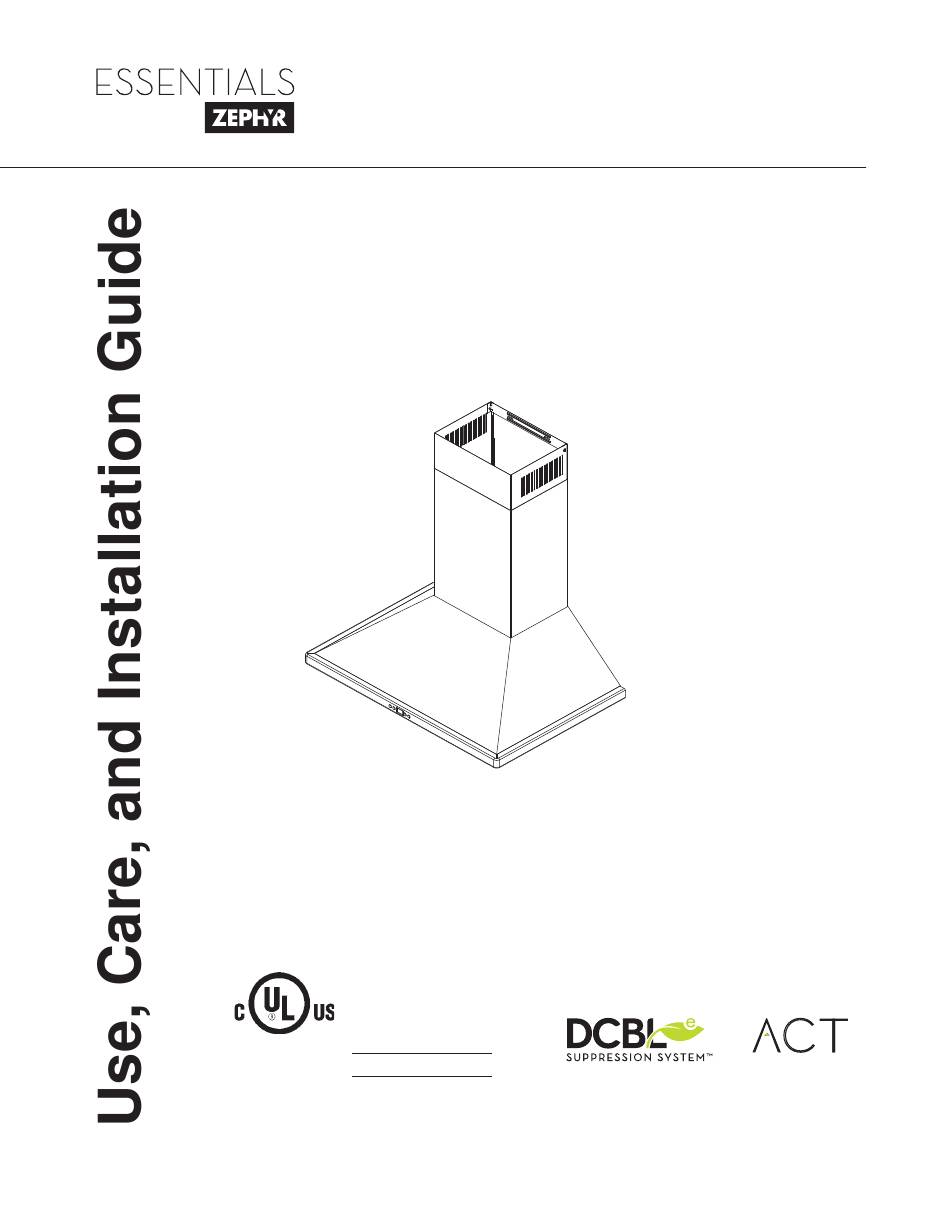

- Page 1 www.zephyronline.com Venezia ZVE-E30CS ZVE-E36CS ZVE-E42CS Model number: Airflow Control Technology Serial Number: SEP14.0101 © Zephyr Ventilation LLC.
- Page 2 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
-
Page 3: Damage - Shipment/Installation
www.zephyronline.com ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 8” to 10”. If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible. - Page 4 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Some Ducting Options Roof Pitch w/ Flashing &...
- Page 5 www.zephyronline.com Front of Hood Side of Hood 14 5/16” 10 9/16” STANDARD min. ducted - 27” min. recirc. - 31 ” max. - 44” Z1C-01VE min. ducted - 45” min. recirc. - 49 ” max. - 80” 29 15/16”, 35 7/8”, 42 7/8” 24”...
-
Page 6: Cable Lock
CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. Duct Cover Bracket 2. Plum and mark center line. 3-9/16" 4-3/4" 4. Mark mounting spread from C/L on line B. From center line 10-1/4"... - Page 7 www.zephyronline.com Ductless recirculating is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust circulated back within the home. We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct is not possible should you recourse to converting the hood into a recirculating hood.
