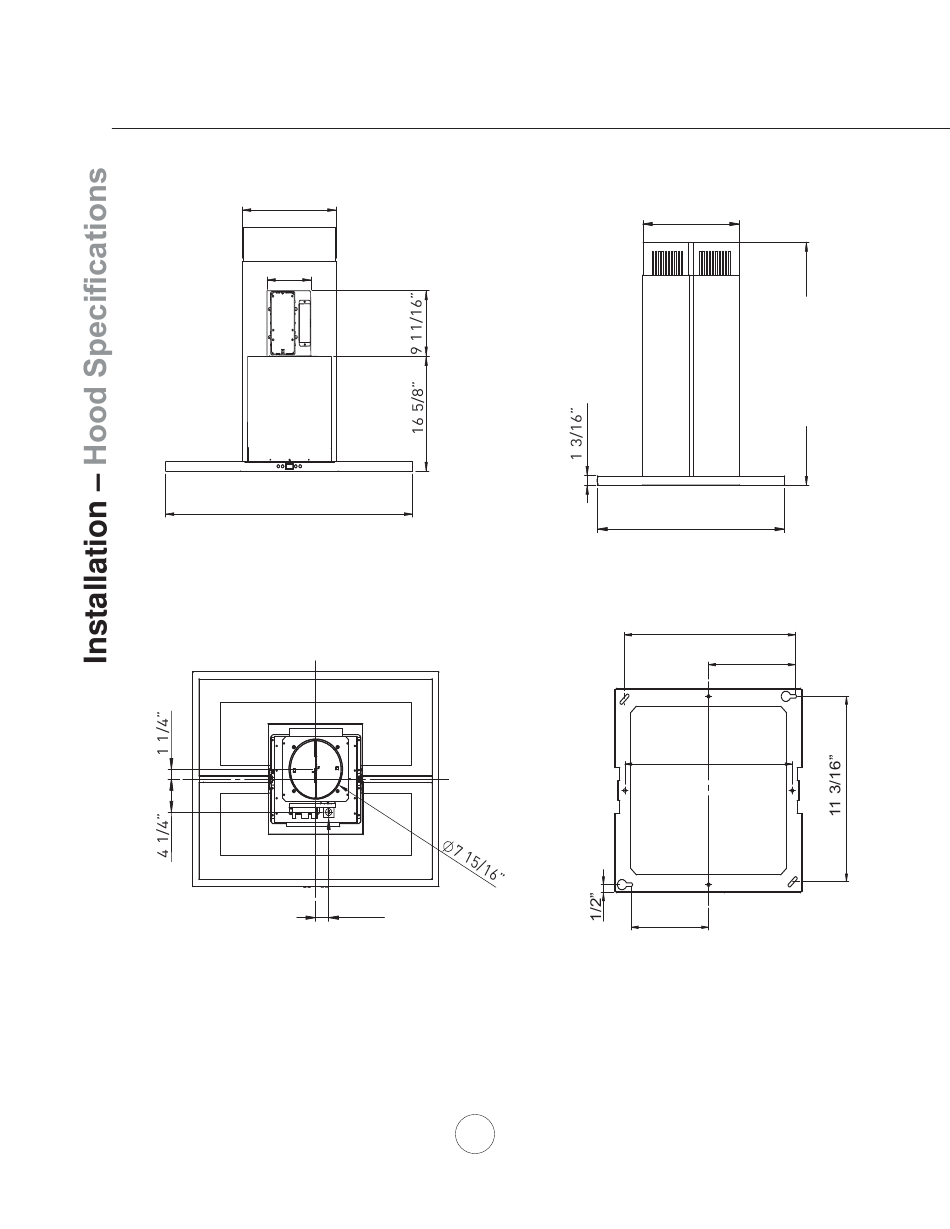

Zephyr Essentials Modena Island ZMD-M90AS Use, Care And Installation Manual page 10

13 11/16"
6 11/16"
35 7/16", 41 15/16"
FRONT
C/L
AC In
1 7/8"
TOP of HOOD
www.zephyronline.com
C/L
TOP SUPPORT FRAME
8
14 3/16"
STANDARD
min. ducted - 28"
min. recirc. - 32"
max. - 50"
Z1C-00MD
min. ducted - 41 1/2"
min. recirc. - 45 1/2"
max. - 80"
27 1/2"
SIDE
11 5/8"
5 7/8"
11 3/8"
C/L
5 1/4"
(top view)
