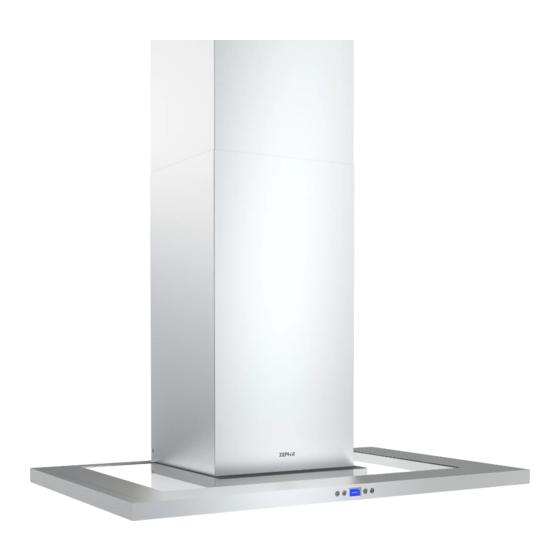

- Page 1 www.zephyronline.com Modena Wall ZMO-E30AS ZMO-M90AS Model number: Serial Number: MAY11.0201 © Zephyr Corporation...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifi cations ........... Mounting the Range Hood ........Ductless Recirculating ..........FEATURES & CONTROLS Touch Controls ............. User Interface ...............
- Page 4 www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and fi...
-
Page 6: Hardware Package Contents
www.zephyronline.com MODELS: ZMO-E30AS, ZMO-M90AS PARTS SUPPLIED 1 - Hood with internal blower 1 - Aluminum mesh filter 1 - Duct cover assembly (top and bottom) 1 - Duct cover wall bracket 4 - 3W LED light bulbs 1 - 8” round backdraft damper (pre-installed) 1 - Hardware package HARDWARE PACKAGE CONTENTS M6 x 1-1/2”... - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 8 www.zephyronline.com ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 8” to 10”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible.
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
- Page 10 www.zephyronline.com front of hood side of hood 13 3/8” 12 3/8” 8 3/8” STANDARD min. ducted - 27” min. recirc. - 31” max. - 50” Z1C-00MO min. ducted - 41 ” min. recirc. - 45 ” max. - 80” 29 15/16”, 35 7/16” 22 1/8”...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. (26” minimum from range top) . 11 1/4” 2. Plum and mark center line. 3.
- Page 12 www.zephyronline.com Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and fi ltered by a set of optional charcoal fi lters. The air is then purifi ed and re- circulated back within the home.
- Page 13 Display (speed level, delay off, filter clean/change,clean air) Power / Delay Off clean mesh filter clean air replace charcoal filter Lights On/Dim/Off Adjust 6 Speed Levels 1 Power / Delay Off Button Power Button Function Button will turn power on and off for entire hood (fan and lights). - Hood will remember the last speed and light level it was turned off at.
- Page 14 www.zephyronline.com Mesh Filter Clean Indicator (always enabled) - After 30 hours of fan usage the Graphic and words “ ” will illuminate indicating it is time to clean clean mesh filter the mesh filters. Graphic and words will remain illuminated until reset. - To reset: With hood off, hold the Button for three seconds, after three seconds the Graphic and words “...
-
Page 15: Surface Maintenance
SURFACE MAINTENANCE: Clean the hood surface periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. - Page 16 www.zephyronline.com TROUBLESHOOTING PROCEDURES FOR MODENA WALL Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 17 Model: ZMO-E30/M90AS Voltage: 120V 60Hz Power consumption Total: Max. 215W @ 3.5A Lamp: Max. 3Wx4 5A 250V Fan: Max. 203W AC-N AC-L THERMALLY PROTECTED ON/OFF DOWN LAMP Blower fan curve AC input: 120V 60Hz Outlet diameter : 8" 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600 625 650 675 700 725 750 Flow rate (CFM)
- Page 18 www.zephyronline.com DESCRIPTION PART# Replacement Parts Light Bulb 3W LED (each) Z0B-0032 Aluminum Mesh Filter (each) 50200042 Optional Accessories Recirculating Kit ZRC-00MO Replacement Charcoal Filter Z0F-C002 Duct Cover Extension Z1C-00MO To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
- Page 19 STAPLE YOUR RECEIPT HERE Proof of the original purchase date is needed to obtain Limited Warranty service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-880-8368 Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
