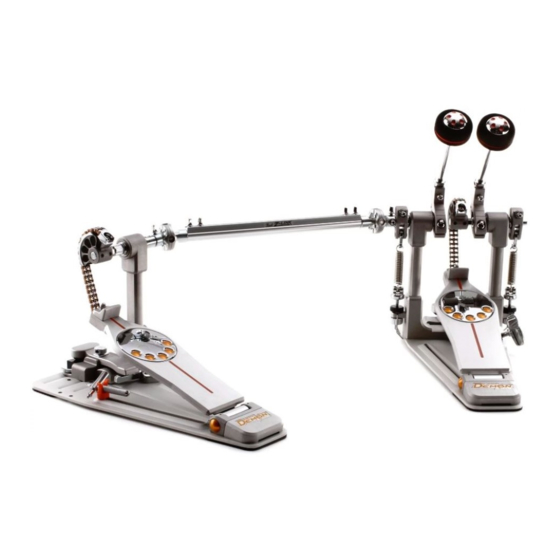

Congratulations on your purchase! To get optimum performance of your
"P-3002C" Double Pedal, please read this Instruction Manual before playing.
Multi Function
Drum Key
P-3002C
PEARL DRUM PEDAL
P-3002C
P-3002CL / P-3001C
Instruction Manual

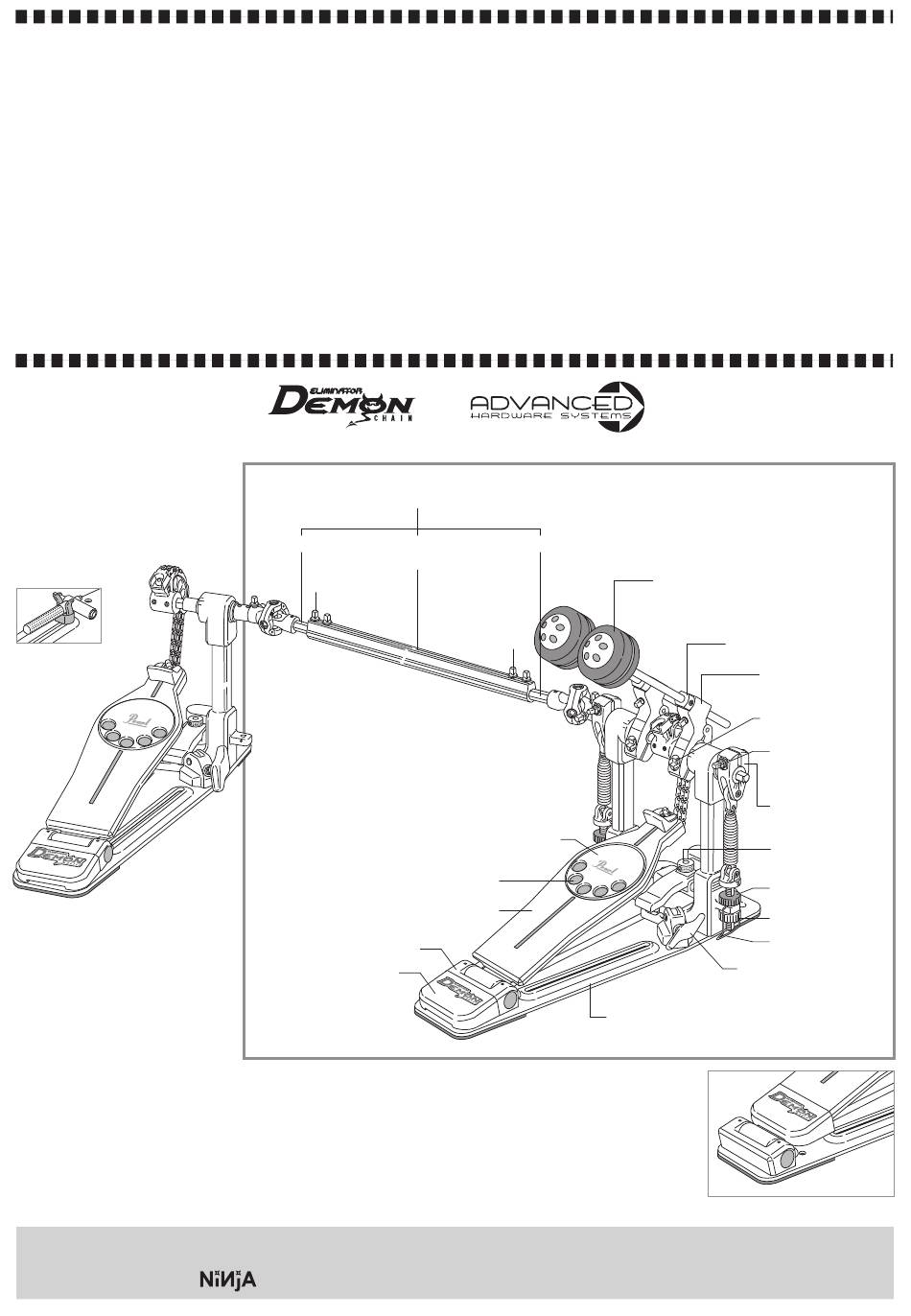

Drive Shaft Assembly
Drive Shaft
Center
Connecting Tube
Key Bolt
Hinge
Heel Plate
P-3001C
Included Items
Oil, Velcro Tape (x6), Allen Wrench (3mm, 2.5mm)
Drive Shaft
Key Bolt
Traction Plate
Traction Grip
Footboard
Control Core Beater
Beater Setting Stopper
Beater Holder Link
Key Bolt (for Beater
Position Adjustment)
Key Bolt
(for Footboard
AngleAdjustment)
Uni-Lock Footboard
Angle Cam
Adjustment Knob
Upper Nut
Lower Nut
Click Lock
Wing Bolt
Bottom Plate
Short Footboard
Long Footboard
