P-2050C / P-2050B

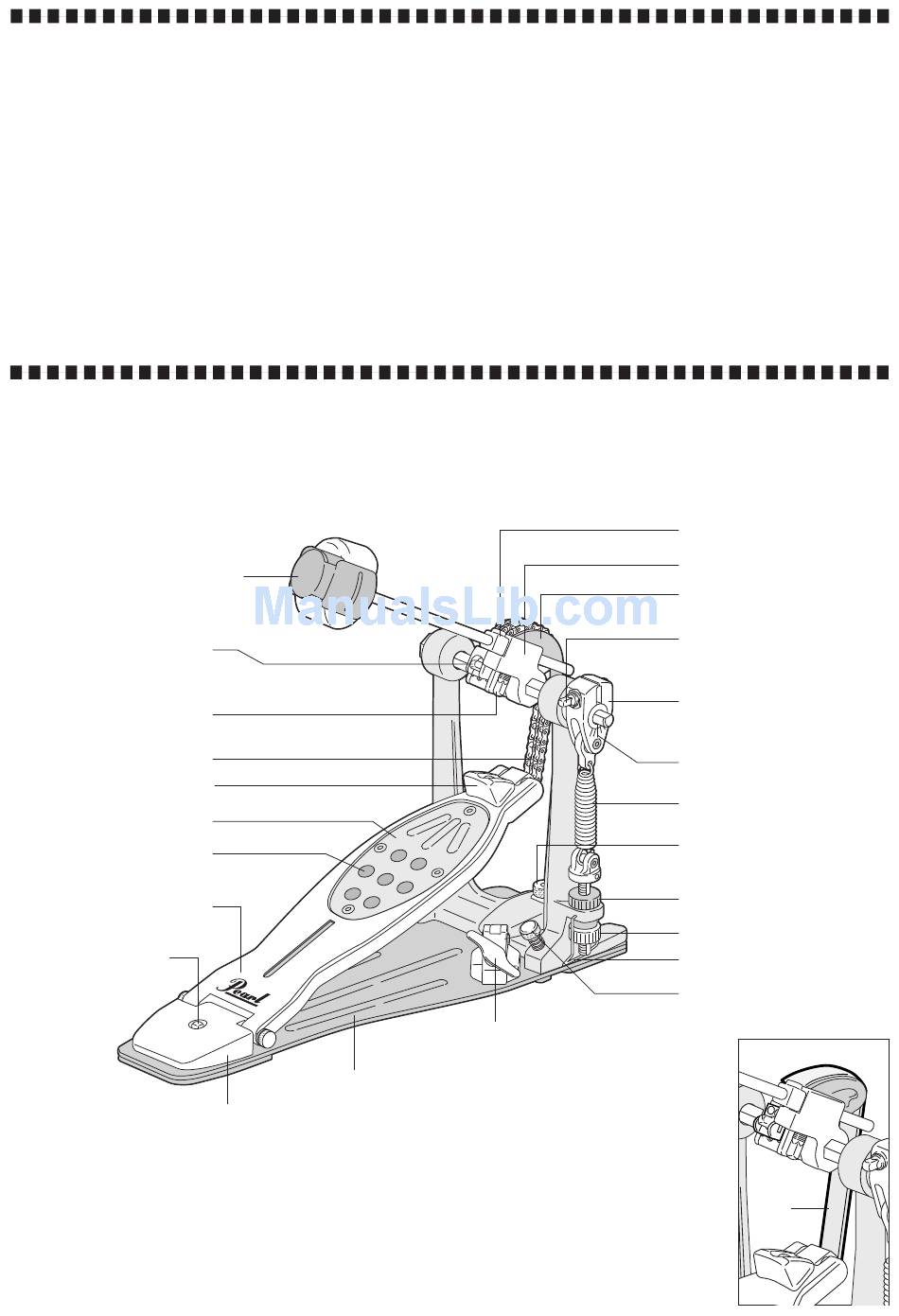

To get optimum performance of your "P-2050C / P-2050B" Drum Pedal,
Control Core Quad Beater
Key Bolt
(for Footboard Angle
Adjustment )
Key Bolt
(for Beater Setting)
Dual Chain
Toe Stopper
Traction Plate
Traction Grip
Footboard
Key Bolt
(for PowerShifter)
P-2050C
PEARL DRUM PEDAL
Instruction Manual
Congratulations on your purchase!
please read this Instruction Manual before playing.
Power Plate
Heel Plate
Wing Bolt
(for Hoop Clamp)
Beater Setting Stopper
Beater Holder Link
Interchangeable Cam
Key Bolt (for Beater
Angle Adjustment)
Uni-Lock Beater
Angle Cam
Gauge
Spring
Adjustment Knob
(for Hoop Clamp)
Upper Nut
Lower Nut
Click Lock
Anchor Screw
Belt
P-2050B
