Congratulations on your purchase! To get optimum performance of your
"P-3002D" Drum Pedal, please read this Instruction Manual before playing.
Multi Function
Drum Key
P-3002D
PEARL DRUM PEDAL
P-3002D
P-3002DL / P-3001D
Instruction Manual

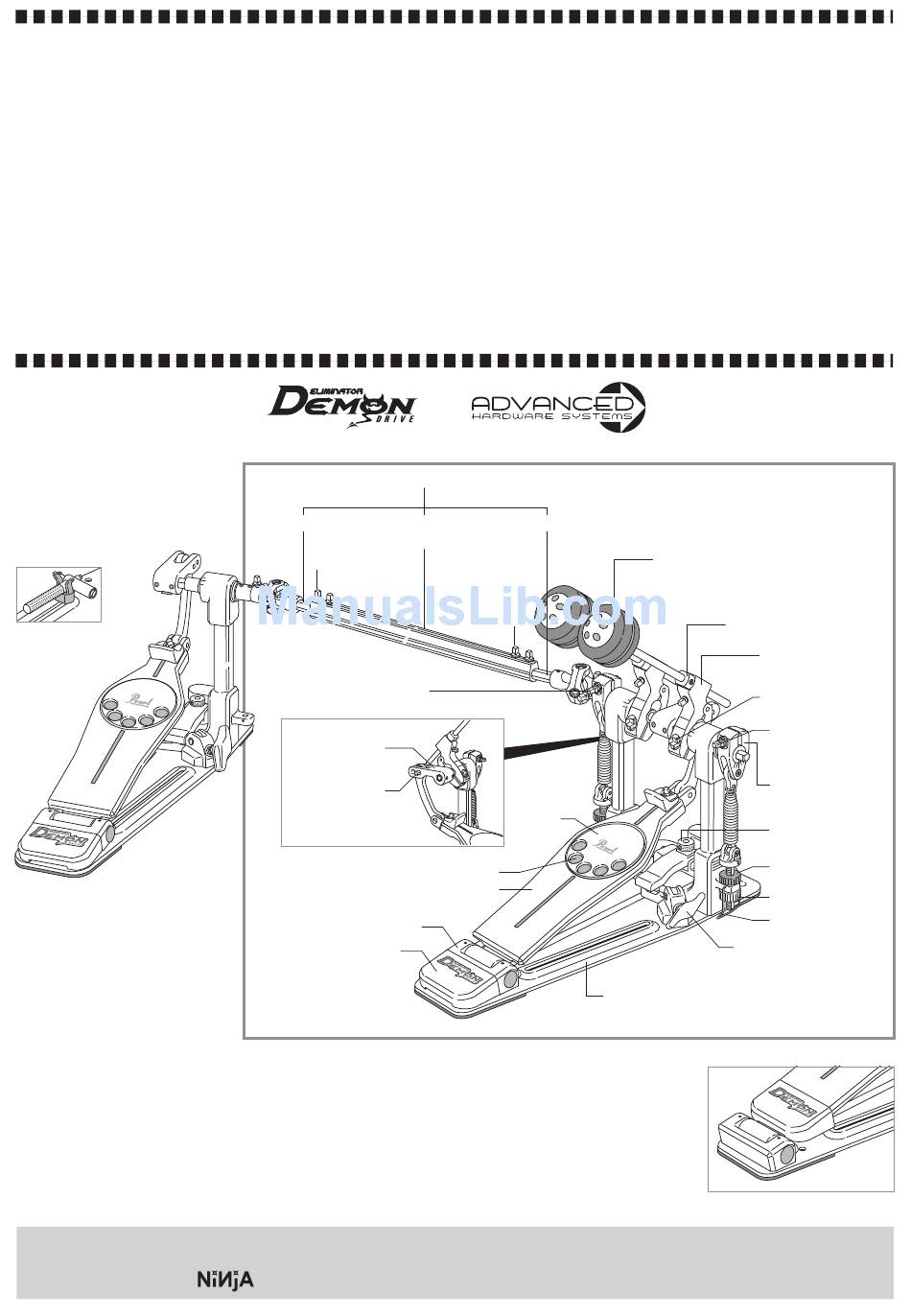

Drive Shaft Assembly
Drive Shaft
Connecting Tube
Key Bolt
Key Bolt
(for Beater Stroke Adjustment)
Direct Link
Key Bolt
(for Direct Link
Adjustment)
Hinge
Heel Plate
P-3001D
Attachments
Oil, Velcro Tape (x6), Allen Wrench (3mm, 2.5mm)
Center
Drive Shaft
Key Bolt
Traction
Plate
Traction Grip
Footboard
Control Core Beater
Beater Setting Stopper
Beater Holder Link
Key Bolt (for Beater
Position Adjustment)
Key Bolt
(for Footboard
AngleAdjustment)
Uni-Lock Footboard
Angle Cam
Adjustment Knob
Upper Nut
Lower Nut
Click Lock
Wing Bolt
Bottom Plate
Short Footboard
Long Footboard
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pearl P-3002D
Summary of Contents for Pearl P-3002D
- Page 1 PEARL DRUM PEDAL P-3002D P-3002DL / P-3001D Instruction Manual Congratulations on your purchase! To get optimum performance of your "P-3002D" Drum Pedal, please read this Instruction Manual before playing. Drive Shaft Assembly Drive Shaft Center Drive Shaft Connecting Tube Control Core Beater...
- Page 2 Control Core Beater Setting Beater Stroke Adjustment Insert the Control Core Beater into the Beater Holder Link The P-3002D Demon Drive Double Pedal features our until it stops against the Beater Setting Stopper, and tighten exclusive two-position Beater Holder that can be positioned the Key Bolt with the provided Multi Function Drum Key closer or further from the drum head for Finesse "A"...
- Page 3 Direct Link Adjustment Duo-Deck Footboard The P-3002D features Pearl's patented Duo-Deck Footboard, The Direct Link can be adjusted to provide a Heavier or a Lighter feel. the world's first convertible Short / Long Footboard. Short Footboard Long Footboard "H" Position (Heavier Feel) "L"...
- Page 4 Connecting the Drive Shaft Assembly Reattach the Hinge to the Footboard in the position shown with two 3-Piece Screws using the provided Multi-Function Connect the ends of the Drive shaft (A) to the short drum key or Allen wrench(3mm) (Fig.11). extensions (B) on the Main and Slave side Pedals and tighten the Key Bolts (Fig.13 , 14).
- Page 5 Spring Tension Adjustment Traction Plate / Traction Dots The P-3002D Demon Drive Double Pedal features our The Traction Plate adjusts to a variety of grip/slide patented Click Lock spring tension retention system. To configurations. To change the position of the Traction Dots,...
- Page 6 . Converting the Slave side Pedal and detach the Hoop Clamp (Fig.21). To change the Slave Side of a P-3002D Double Pedal into a Single Pedal, detach the Spring Assembly and the Beater Holder Link from the Left Post of the P-3002D Double Pedal and transfer them to the Slave Side Pedal.
- Page 7 Check all Key Bolts and Allen Screws for tightness before performance, and tighten them with the provided Multi-Function Drum Key or Allen wrenches as needed. Fig. 25 Fig. 26 P-3002D features precision NiNjA bearings for incredible speed smoothness. To keep them...
