Pearl P-120 Instruction Manual

Drum pedal

Table of Contents

Download this manual

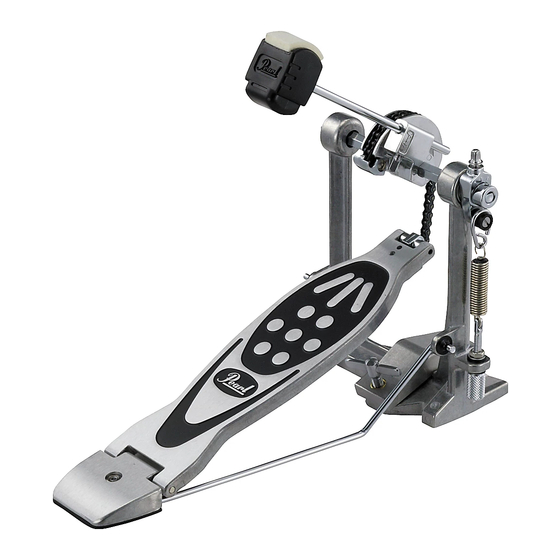

PEARL DRUM PEDAL

To get optimum performance of your Pedal,

please read this Instruction Manual before playing.

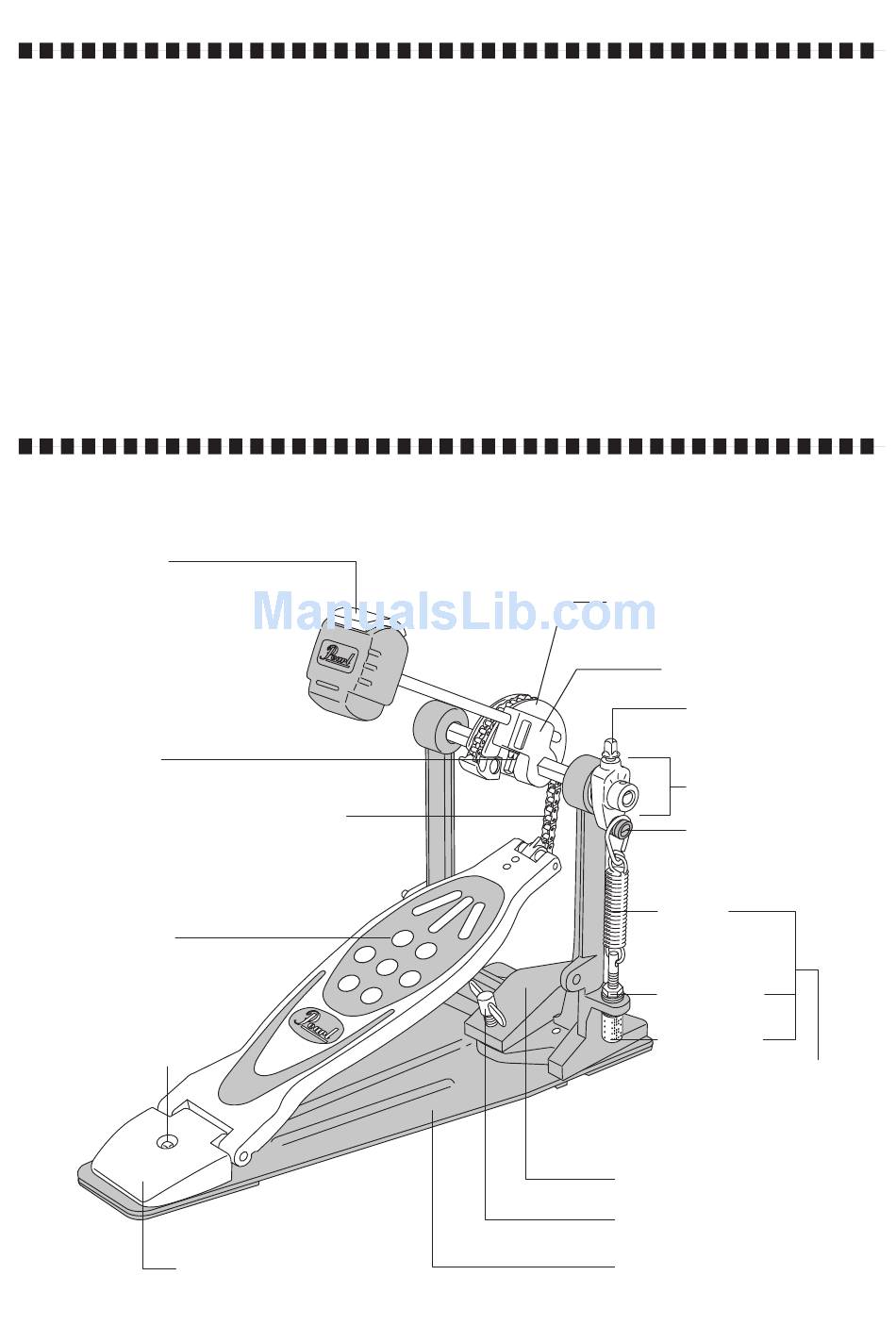

Duo Beat

(2-Surface Beater)

Key Bolt

(for Beater

Setting/Height)

Footboard

Heel Plate

P-120

Instruction Manual

Congratulations on your purchase!

Chain

Chain Drive w/Aluminum

Die-cast Wheel

Beater Holder Link

Key Bolt

(for Beater Angle

Adjustment)

Beater Angle Cam

Cam Roller

Spring

Upper Nut

Lower Nut

Spring Assembly

Hoop Clamp

Wing Bolt

Power Plate
