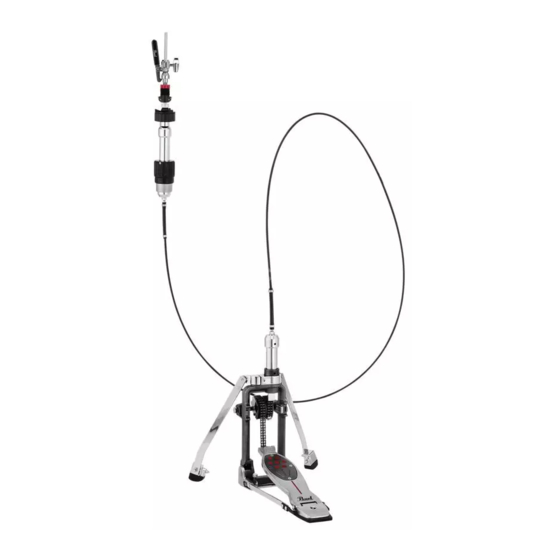

PEARL REMOTE HI-HAT
To get optimum performance from your PowerShifter Eliminator Remote Hi-Hat,
VariSet Footboard
Angle Adjustment
RH-2050
Instruction Manual
Congratulations on your purchase!
please read this Instruction Manual before playing.
Pedal Frame
Drop Clutch
Rubber Cymbal Seat
Hi-Hat Cup
Spring Tension
Adjustment Dial
Cable
Interchangeable Cam
Support Casting
Reversible Spiked / Rubber
Tipped Feet
TractionPlate w/ Traction Grips
Key Bolt (for PowerShifter)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pearl RH-2050
Summary of Contents for Pearl RH-2050
- Page 1 PEARL REMOTE HI-HAT RH-2050 Instruction Manual Congratulations on your purchase! To get optimum performance from your PowerShifter Eliminator Remote Hi-Hat, please read this Instruction Manual before playing. Drop Clutch Rubber Cymbal Seat Hi-Hat Cup Spring Tension Adjustment Dial Cable Interchangeable Cam...
- Page 2 Base Assembly Stand the base up and holding it with one hand, loosen the Hold the Pedal Frame with one hand. Loosen the Key Bolt Key Bolt and open the legs. Make sure that the legs are on the Support Casting and disengage the Tab (Fig.1-A). forming a stable tripod, and Remove the Pedal Frame from the Docking Station as tighten the Key Bolt to retain...
- Page 3 Upper Section Assembly footboard once again and it would Mount the Upper Section of the re-engage the lock for regular RH-2050 to your kit with an Hi-Hat playing style. Adaptor such as the Pearl AX-25L Over a period of time, play may Upper Section (shown) or the UX-80 (Fig.7).
- Page 4 A : Strong feel Black : Linear Action Cam B : Normal feel Key Bolt This is Pearl's original "perfect circle" Cam design. It offers superior Heel Plate C : Light feel power and a very natural, perfectly balanced action and smooth feel.
- Page 5 Loosen the two Key Bolts on both side of the bottom of the Support Casting, open the Clamp and remove the Pedal <Cable Care> Frame from When setting up your RH-2050, keep the cable relaxed Support Casting. without sharp bends to optimize performance. Do not Loosen the Key Bolt twist the Upper Pull Rod.
