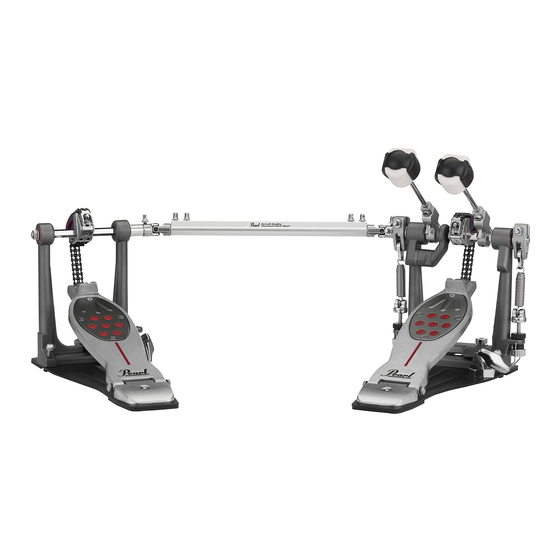

P-2052C / P-2052B COMPLETE SET
To get optimum performance of your Eliminator Red Line Double Pedal,
P-2052C
For customers purchasing
P-2051C / P-2051B
The P-2051C / P-2051B conversion kit works
with your existing single pedal to be played as
a double pedal. When connecting your single
pedal to P-2051C / P-2051B, remove the
Uni-Lock Beater Angle Cam and Spring
Assembly from your single pedal as shown.
You would need these to convert it back to a
single pedal, so make sure not to loose them.
Detach the Control Core Quad Beater and
attach to the P-2051C/P-2051B. Remove the
Key Bolt and attach the included Clamp Plate
to the Hoop Clamp to prevent noise.
PEARL DRUM PEDAL
P-2051C / P-2051B
Instruction Manual
Congratulations on your purchase!
please read this Instruction Manual before playing.

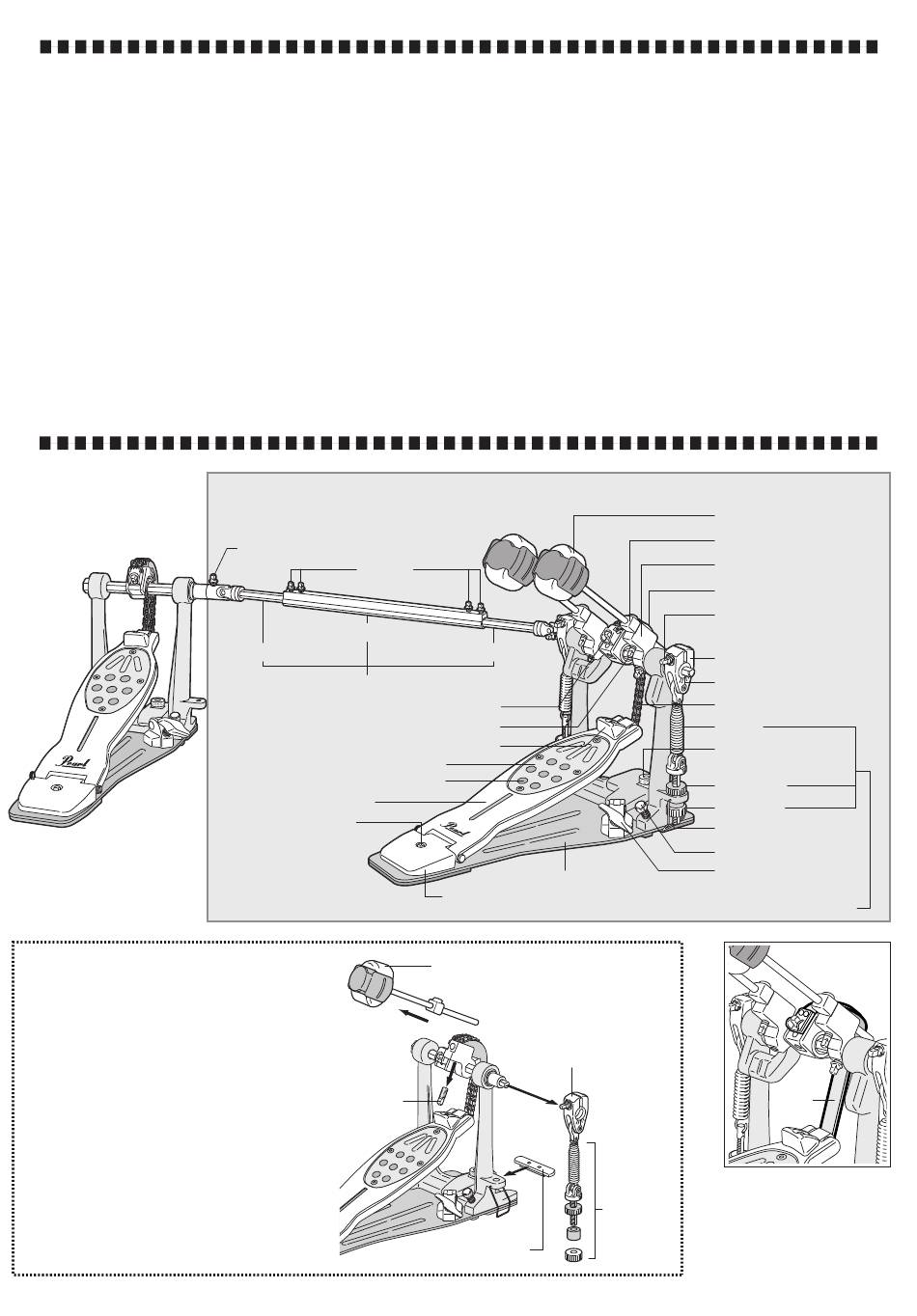

Key Bolt
Key Bolt
Center Connecting Tube
Drive Shaft
Drive Shaft Assembly
Key Bolt (for Footboard Angle Adjustment )
Key Bolt (for Beater Setting)
Traction Plate
Traction Grip
Footboard
Key Bolt
(for PowerShifter)
P-2051C
*P-2051C/P-2051B
includes only 1 beater.
Key Bolt
Drive Shaft
Toe Stopper
Power Plate
Heel Plate
Control Core Quad Beater
Uni-Lock Beater
Angle Cam
Crank Plate
Control Core Quad Beater
Beater Setting Stopper
Beater Holder Link
Interchangeable Cam
Key Bolt (for Beater
Angle Adjustment)
Uni-Lock Beater Angle Cam
Gauge
Dual Chain
Spring
Adjustment Knob
(for Hoop Clamp)
Upper Nut
Lower Nut
Click Lock
Anchor Screw
Wing Bolt
(for Hoop Clamp)
Spring Assembly
Belt
Spring
Assembly
P-2052B
