Greenlee 93-172 Instruction Manual

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL DE L'UTILISATEUR
200 Lux 200
20
20 Fc
50000 20000
Lux
5000 200
Fc
0 ADJ
M-H D-H
R Lux/Fc
93-172
DIGITAL LIGHT METER
93-172
FOTÓMETRO DIGITAL
LUXMÈTRE NUMÉRIQUE
93-172
Read and understand all of the instruc-
tions and safety information in this manual
before operating or servicing this tool.
Lea y entienda todas las instrucciones y
normas de seguridad incluidas en este manual, antes de
manejar esta herramienta o darle mantenimiento.
Nous vous conseillons de lire attentivement et de bien
comprendre les instructions suivantes avant d'utiliser ou
de procéder à l'entretien de cet outil. Le non-respect
d'une telle consigne peut entraîner des blessures
corporelles ou même la mort.
999 3086.2 © 1998 Greenlee Textron IM 1366 12/98
Description

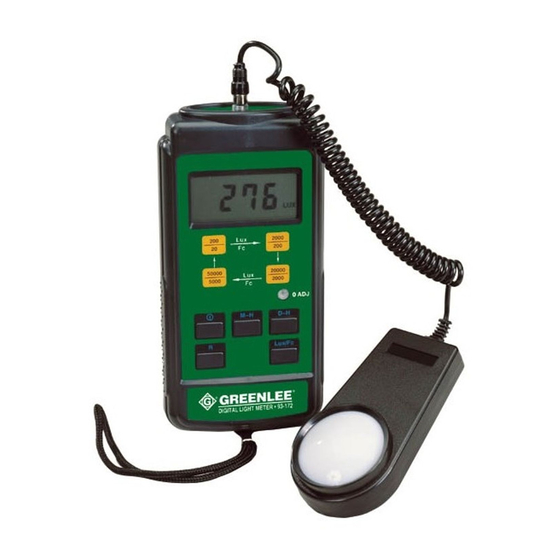

The Greenlee 93-172 is a digital light meter intended to measure
light emitted from fluorescent, metal halide, high-pressure
sodium and incandescent light sources.
Safety
Safety is essential in the use and maintenance of Greenlee
tools and equipment. This instruction manual and any decals on
the tool provide information for avoiding hazards and unsafe
practices related to the use of this tool. Observe all of the safety
information provided.
Purpose
This manual is intended to familiarize personnel with the safe
operation and maintenance procedures for the Greenlee 93-172
Digital Light Meter.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no charge.
and are registered trademarks of
Greenlee Textron.
Do not expose test instrument to extremes in temperature
or high humidity. See Specifications section of this manual.
Failure to observe these precautions can result in injury and
can damage the instrument.
Replace weak or discharged batteries as soon as either of
these conditions is detected.
Specifications
Ranges
Footcandles ...................................... 20 / 200 / 2000 / 5000
Lux ......................................... 200 / 2000 / 20,000 / 50,000
Accuracy
Incandescent Light Source .......................................... 4%
Other Light Source ....................................................... 7%
Temperature Range ........................... 0 – 40 C (32 – 104 F)
Relative Humidity ............................................... Less Than 80%
Power ............................................................. One 9-Volt Battery
Operation
1. Plug the sensor into the sensor jack.
2. Press the button.
3. Press the Lux/Fc selector to select either lux or footcandles.
4. Press the R button to select the appropriate measurement
range.
Note: Set the display to 000 by twisting the zero adjustment
screw.
5. Place the sensor at the measurement location and remove
the cover. Read the display.
Additional Notes:
• If the display reads OL, switch to the next higher range.
• When the display reads X 10, multiply the reading on the
display by 10 for the actual value.
• When the display reads X 100, multiply the reading on the
display by 100 for the actual value.
• To store a reading on the display, press D-H (Data Hold).
Press D-H again to resume normal measuring.
• To store a maximum or peak reading, press M-H. Press M-H
again to resume normal measuring.
Maintenance
General
• Keep the tester clean and dry.
• When necessary, wipe clean with a damp cloth. Allow the
tester to dry completely before use.
Battery Replacement
1. Loosen screw on the back of the meter.
2. Remove the battery door.
3. Replace the battery.
4. Install the battery door.
4
10
5
Lux 200
200
20 Fc 20
3
6
50000 20000
Lux
200
5000
Fc
0 ADJ
2 MAX D-H 7
9
R Lux/Fc
8
1

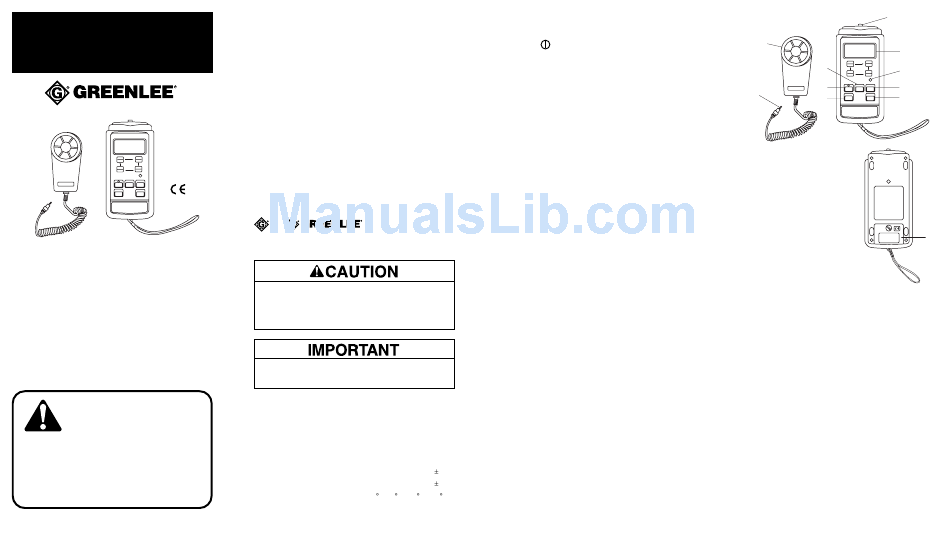

Identification
1. Range Button
2. Power Button
3. Maximum (Peak Hold)
4. Sensor Jack
5. LCD
6. Zero Adjustment Screw
7. Data Hold Button
8. Lux/Footcandle Selector Button
9. Sensor Plug
10. Sensor Cover
11. Battery Door
Identificación Identification
1. Botón Range (margen) 1. Bouton de gamme
2. Botón Power (encendido) 2. Bouton Marche/Arrêt
3. Botón Peak Hold (guardar 3. Maximum (maintien de la
valor máximo) crête)
4. Receptáculo del sensor 4. Jack du capteur
5. Pantalla de cristal líquido 5. Affichage à cristaux
(LCD) liquides
6. Tornillo de ajuste en ceros 6. Vis de réglage sur 0
7. Botón Data Hold (guardar 7. Bouton de maintien des
datos) données
8. Botón selector de luxios/ 8. Bouton de sélection lux/
bujías-pies bougie pied
9. Clavija de conexión del sensor 9. Prise du capteur
10. Tapa del sensor 10. Couvercle du capteur
11. Tapa del compartimiento de 11. Couvercle du boîtier de la
las pilas pile
Parts
UPC No. Part No. Description
78-3310-
06061 500 6061.9 Sensor .......................................... 1
06083 500 6083.0 Sensor Cover ............................... 1
06200 500 6200.0 Case ............................................. 1
11
Qty
