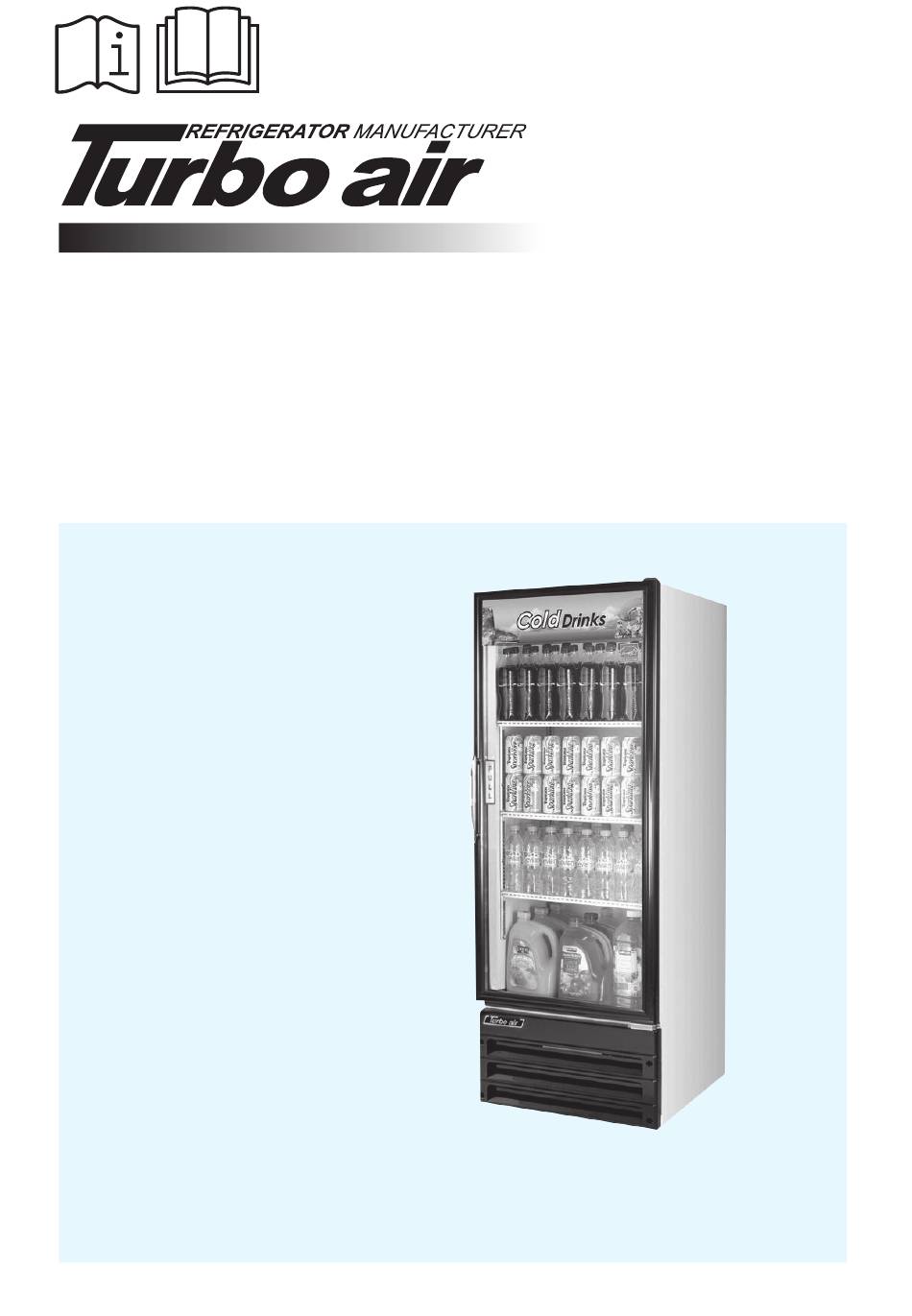

Turbo Air Speeds up the Pace of Innovation
Glass Door Merchandisers
Refrigerators
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
GLASS DOOR
REFRIGERATORS
TGM-5R-N#
TGM-11RV-N#
TGM-14RV-N#
TGM-22RV*-N#
TGM-35R-N#
TGM-48R*-N#
TGM-50RS*-N#
TGM-69R*-N#
TGM-72RS*-N#
(*) - May or may not have suffix from A to Z to denote cosmetic difference.
(#) - May or may not be followed by a letter indicating refrigerant type.
www.turboairinc.com
Advertisement
Table of Contents
Related Manuals for Turbo Air TGM-5R-N Series
Summary of Contents for Turbo Air TGM-5R-N Series
- Page 1 Turbo Air Speeds up the Pace of Innovation Glass Door Merchandisers Refrigerators Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment. GLASS DOOR REFRIGERATORS TGM-5R-N# TGM-11RV-N# TGM-14RV-N# TGM-22RV*-N# TGM-35R-N# TGM-48R*-N# TGM-50RS*-N# TGM-69R*-N# TGM-72RS*-N# (*) - May or may not have suffix from A to Z to denote cosmetic difference.
-
Page 2: Table Of Contents
INSTALLATION ......................11 CLEANING ........................12 BASIC OPERATION .......................13 CAUTION ........................14 HOW TO ADJUST A SHELF POSITION AND REPLACE A LAMP ....... 15 TROUBLESHOOTING ..................16 - 17 WARRANTY INFORMATION ................18 - 19 WARRANTY REGISTRATION CARD ................23 Turbo air... -
Page 3: Notice
Indicates hazards of death or serious injury, DANGER if the instructions are not followed. WARNING Indicates dangers of death or serious injury, if the instructions are not followed. Indicates risks of personal injury or material damage, CAUTION if the instructions are not followed. Turbo air... -
Page 4: For Hydrocarbon Refrigeration Units
- Do not damage the refrigerant circuit. - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of a type recommended by the manufacturer. Turbo air... - Page 5 • Any and all technicians handling these units must be equipped with proper personal protection and equipment and follow applicable safety measures and precaution to avoid risk of fire or explosion. Turbo air...
-
Page 6: Important Safety Information
• Do not allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerators. They could damage the refrigerator and seriously injure themselves. • To prevent suffocation and entrapment hazards of children, remove the doors and seals from the refrigerator before disposing of it or discontinuing its use. Turbo air... -
Page 7: Installation & Usage
• Do not put bottles or any kind of glass in the freezer. The container may break and cause personal injury. • Do not disconnect the power cord by pulling on it. This may disconnect a wire and cause a short circuit. Turbo air... - Page 8 Incorrect repairs done by an unqualified person may be a potential source of danger that could have critical consequences for the user of the appliance. - Never put ice cubes or ice lollies straight from the freezer into your mouth. The low temperature may cause cold burns. Turbo air...
-
Page 9: Proper Disposal Of Old Appliance
3. If the malfunction still persists, then contact our Customer Service, specifying: • The nature of the problem, • The appliance model number and serial number • Your full address, telephone number and area code. Turbo air... -
Page 10: Specifications
SC : SELF-CONTAINED M : MEDIUM TEMPERATURE APPLICATION L : LOW TEMPERATURE APPLICATION SERIAL NUMBER The serial number can be found on the data label located inside the unit. Please retain the unit serial number for service purposes. Turbo air... -
Page 11: Notice To Customer
Insufficient space causes the noise of vibration, inefficient refrigeration, damage to the refrigeration system, and the waste of electricity. (Turbo Air recommends that the rear of the unit would be no less than 5 inches from the wall) 3. -
Page 12: Cleaning
- When reinstalling the Drain Pan, make sure the drain hose is placed back into the pan. 4. CHECK AFTER CLEANING 1) Check the unit again for safety. 2) Plug unit back in and turn on power switch. 3) Check that the unit is operating properly. Turbo air... -
Page 13: Basic Operation
(Thermostat) 4. The temp. controller is mounted on the evaporator, and compressor cycles are determined by detecting the return air temperature inside the cabinet. 5. If the temp. controller is on "OFF" position, refrigeration system will shut off. Turbo air... -
Page 14: Caution
- Do not obstruct the air inlet which is located at the back inside of the unit. 4. Before you operate the unit (optional): Please unscrew the bottom grill and take out the pad in the drain pan. BOTTOM GRILL DRAIN PAN Turbo air... -
Page 15: How To Adjust A Shelf Position And Replace A Lamp
LAMP BASE HOLDER new position. HOLDING BOLT Please turn off the power before positioning the shelves and Separate the lamp from the lamp installing the lamp. socket, and replace with the new lamp. - CAUTION: Avoid electric shock. Turbo air... -
Page 16: Troubleshooting
- Correct setting of the refrigerator / freezer temperature controls, - Inhibited air circulation. - Condenser coil is properly cleaned. 3. If the refrigerator compartment temperature is too low, check for: - Correct setting of the temperature controls. Turbo air... - Page 17 • The compressor does not run during the defrost cycle. Note: Formation of condensation on and around the edge of the door and the front side of the cabinet is normal. Gurgling noises inside the refrigerating circuit are normal. Turbo air...
-
Page 18: Warranty Information
(indoor building only) and start-up in accordance with the instruction packet supplied with each Turbo air unit. Turbo Air's obligation under this warranty is limited to a period of two (2) year from the date of original installation or twenty seven (27) months after shipment date from Turbo Air, whichever occurs first. - Page 19 What is Not Covered by This Warranty... Turbo Air’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
- Page 20 Turbo air...
- Page 21 Turbo air...
- Page 22 Turbo air...
-
Page 23: Warranty Registration Card
Address: (Street / Unit #) (City) (State) (Zip Code) hereby inform and certify to Turbo Air Inc. (Manufacturer) that the product model (Owner’s Name) and serial number mentioned above was purchased on from (Date of Purchase) (Name of the Dealer) Turbo Air Inc. - Page 24 4184 E. Conant St., Long Beach, CA 90808 Toll Free: 1-800-381-7770 Fax: 310-900-1033 Email: warranty@turboairinc.com www.turboairinc.com...
