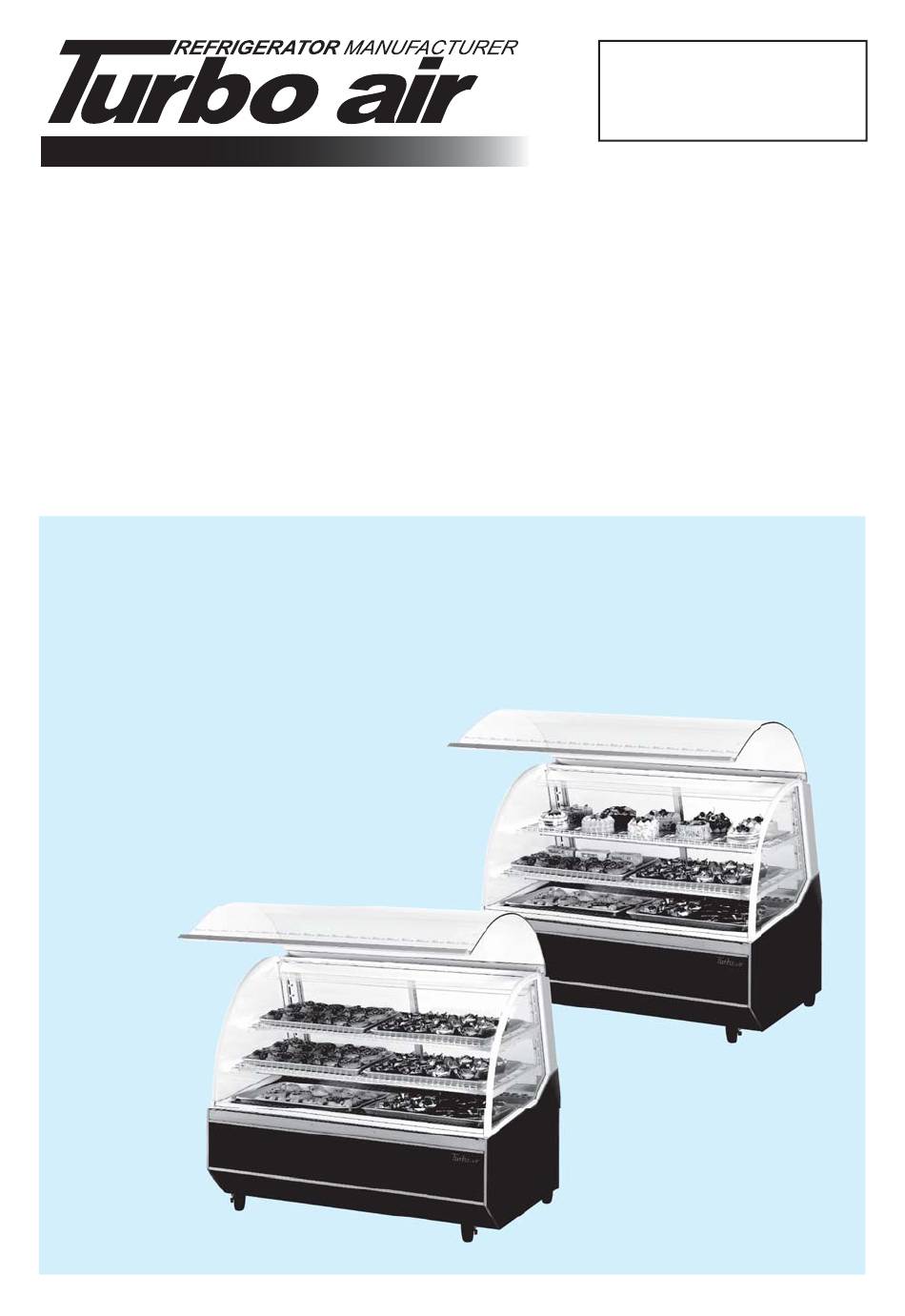

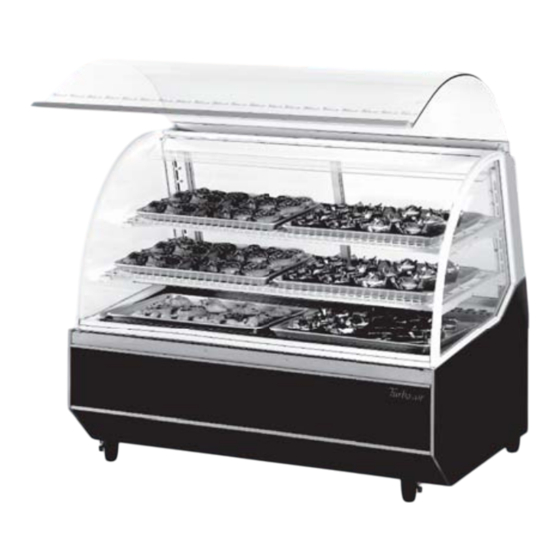

Turbo Air Speed up the Pace of Innovation
Display Cases
Bakery Cases
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
DRY CASE
TB-4
TB-5
REFRIGERATED CASE
ERATED CASE
TB-4R
TB-5R
www.turboairinc.com
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT
Advertisement
Table of Contents
Related Manuals for Turbo Air TB-4
Summary of Contents for Turbo Air TB-4
- Page 1 CAUTION! PLEASE KEEP POWER SWITCH ON BEFORE OPERATING THIS EQUIPMENT Turbo Air Speed up the Pace of Innovation Display Cases Bakery Cases Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! DRY CASE...
-
Page 2: Table Of Contents
WIRING DIAGRAM OPERATING INSTRUCTIONS FRONT CURVED GLASS MAINTENANCE & CLEANING 11-12 TROUBLE SHOOTING WARRANTY 14-16 SPECIFICATIONS MODEL COMP H.P V/Hz REFRIGERANT AMPS WEIGHT TB-4R 115V/60Hz R-134A 17.2 TB-5R 115V/60Hz R-134A 17.2 TB-4 115V/60Hz TB-5 115V/60Hz - TB-4, TB-5 (NON REFRIGERATED) -
Page 3: Installation
If after uncrating there is concealed damage and crate was in good condition you must call Customer Service at Turbo Air. Concealed damage must be reported within 24 hours of receiving unit. Bill of lading will be requested faxed to claim department. -
Page 4: Packaging Material
PACKAGING MATERIAL Remove all tape that holds life up glass and doors in place. Some residue will be left and this can be removed with glass cleaner. Remove all plastic ties that hold shelves and brackets for shelves. LIGHTS Make sure lights are in their lamp holders. Also make sure plugs for lamp holders are completely plugged in. -
Page 5: Electrical Information
ELECTRICAL INFORMATION BAKERY CASE MUST BE GROUNDED Only a licensed electrician must install all electrical on Bakery Case. All electrical must be done in accordance with applicable electrical standards. A dedicated breaker is to be used for each Bakery Case. Electrical must be grounded upon installation An access hole is provided thru base of case for running electrical up through floor. -
Page 6: Wiring Diagram
WIRING DIAGRAM (TB-4R, TB-5R) - Page 7 WIRING DIAGRAM (TB-4, TB-5)
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS After installing unit and all electrical to Bakery Case, unit is ready to start up. CONTROLS POWER SWITCH : It is labeled with on/off position. It controls power to the entire Bakery Case. LIGHT SWITCH : The switch controls the power to the lighting circuit. The wsitch rocker is red in the “on”... - Page 9 OPERATING INSTRUCTIONS SHELF PLACEMENT : The shelves can be installed slanted or straight. To make the shelf slanted do the following. a. Shelf needs to be removed from shelf support. b. Shelf support needs to be held at each end. c.
-
Page 10: Front Curved Glass
FRONT CURVED GLASS WARNING The Bakery Case is not intended for self serve. Do not let customers lift front glass. Only trained personnel should lift curved glass. Under normal use hinges will last many years. If any of the following problems occur, please call Customer Service ;... -
Page 11: Maintenance & Cleaning
MAINTENANCE & CLEANING Always before cleaning Bakery Case unit should be turned off at power switch and lights should be turned off. Removed product and allow display to reach room temperature. Do not wet electrical components. BAKERY CASE SHOULD BE CLEANED THOROUGHLY BEFORE FIRST USE. CLEANING DAILY 1. - Page 12 MAINTENANCE & CLEANING CONDENSER COIL 1. Turn off unit at power switch. Disconnect power to unit. 2. Remove rear grill. 3. Clean condenser by either brushing off with stiff wire brush or vacuuming with wet/dry vacuum. Condenser is black and looks like a radiator. This should be cleaned every month or as necessary.
-
Page 13: Trouble Shooting
TROUBLE SHOOTING For any problems with Bakery Case please refer to following check list. If still having a problem or need to ask a question please call Customer Service at 1-800-381-7770 or 1-800-627-0032 BAKERY CASE NOT WORKING 1. Check to see if breaker is not tripped. 2. - Page 14 TWO YEAR WARRANTY Turbo air warrants to the original purchaser of every new Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of two (2) year from the date of original installation or 27 months after shipment date from Turbo air , whichever occurs first.
- Page 15 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
-
Page 16: Warranty
(2) year from the date of original installation or 27 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within two (2) year of original installation or twenty seven (27) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
