Turbo Air Speeds up the Pace of Innovation

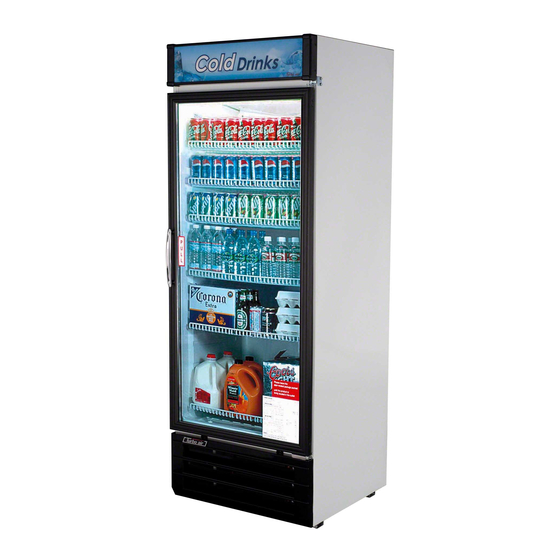

Glass Door
Merchandiser
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment

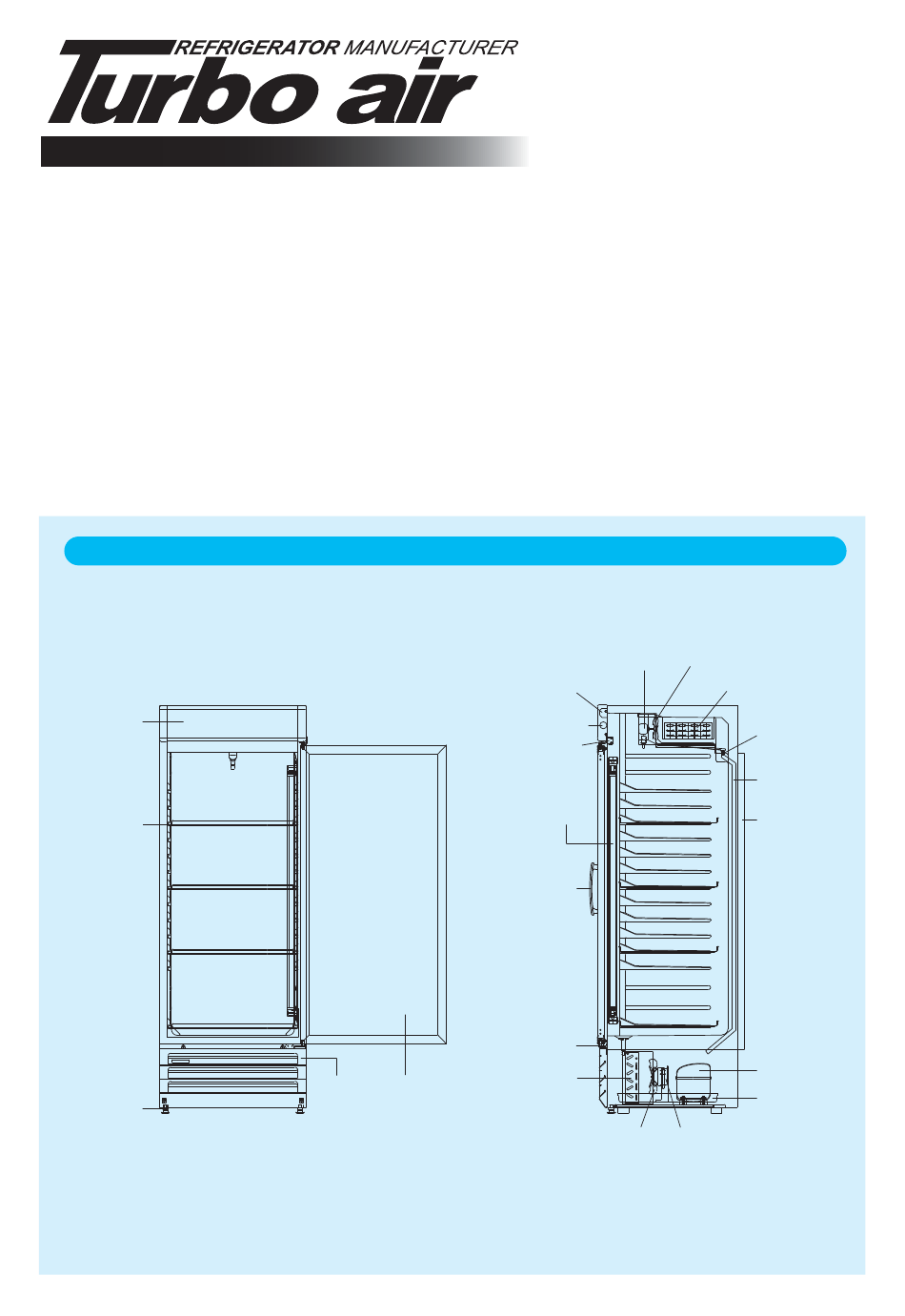

FEATURE CHART
TGM-22RV
ADVERTISINC
PANEL
SHELF
ADJUSTABLE
FOOT
BOTTOM
DOOR
ASSEMBLY
GRILL
F
R
O
N
T
www.turboairinc.com
EVAPORATOR
FAN MOTOR
BALLAST
FLUORESCENT
LAMP
HINGE*TOP
FLUORESCENT
LAMP (32W)
HANDLE
HINGE*UNDER
CONDENSER
CONDENSER
FAN BLADE
S
D I
EVAPORATOR
FAN BLADE
EVAPORATOR
DRAIN CAP
DRAIN HOSE
SUCTION PIPE
COVER
COMPRESSOR
DRAIN PAN
CONDENSER
FAN MOTOR
E
