Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment

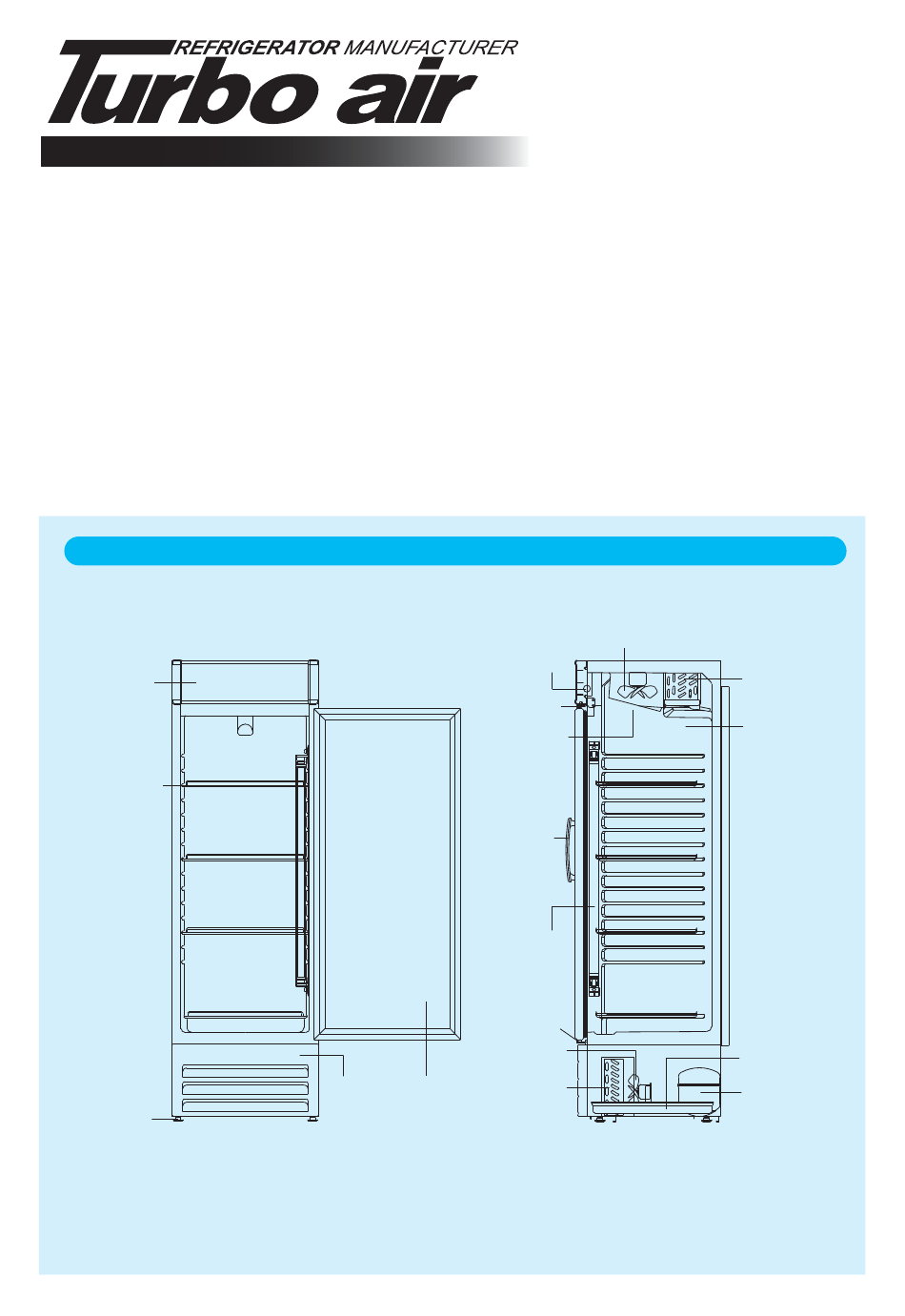

FEATURE CHART
TGM-14RV
ADVERTISING
PANEL
SHELF
ADJUSTABLE
FOOT
BOTTOM
GRILL
F
R
O
N
T
Casters are applied to TGM-14CRV model.
How to install the caster and caster brake : Refer to page 3.
www.turboairinc.com
FLUORESCENT
LAMP
HINGE*TOP
EXIT HOLE OF
COLD AIR
HANDLE
FLUORESCENT
LAMP (25W)
HINGE*UNDER
CONDENSER
FAN
DOOR
CONDENSER
ASSEMBLY
EVAPORATOR FAN
EVAPORATOR
INDUCTION
HOLE OF
COLD AIR
DRAIN PAN
COMPRESSOR
S
D I
E
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air TGM-14RV
Summary of Contents for Turbo Air TGM-14RV
- Page 1 Turbo Air Speeds up the Pace of Innovation Glass Door Merchandiser Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment FEATURE CHART TGM-14RV EVAPORATOR FAN FLUORESCENT LAMP ADVERTISING EVAPORATOR PANEL HINGE*TOP INDUCTION...
-
Page 2: How To Install
HOW TO INSTALL In good ventilation. Place the refrigerator on Put away heat source from • Place the refrigerator in hard and level floor. the refrigerator. good ventilation for a good • Unlevel floor may cause the • High ambient temperature operation. - Page 3 1) Screw the caster (in rear side) and the caster brakes (in front side) by using caster wrench. 2) Use the caster shims to level the cabinet, if necessary, by inserting them to stems of the casters. CASTER SHIM(4EA) CASTER(2EA) ROTATION CASTER (WITH BRAKE)(2EA) Model : TGM-14RV...
- Page 4 CLEANING Cleaning the interior and exterior Check points after cleaning • Wash with warm soapy water and rinse with • Check again the refrigerator for safety. wet cloth. • Do not plug the power cord with wet hands. • Wipe with dry cloth. •...
- Page 5 CAUTION Ventilation Warning - Place the unit in a well ventilated area. - Warranty will be voided if the following is - Keep the cabinet 4” from rear wall. found. • Low voltage to unit. Should be 115V/60Hz. • Power cord should not be more than 7 feet long from plug in connection to compressor.
-
Page 6: Troubleshooting
TROUBLESHOOTING Product freezing • Only a small amount of product • Turn temperature control to stored in unit. normal. • Product on top shelf only freezing. • Rearrange product, due to close to fan. • Temperature of refrigerator below • Turn temperature control to 35˚F. - Page 7 HOW TO ADJUST A SHELF POSITION AND REPLACE A LAMP Pull the lamp connector off the main terminal. MAIN TERMINAL - Don’t hold the wire but the connector housing while pulling it off. LAMP CONNECTOR LAMP BASE HOLDER LAMP BASE HOLDING BOLT LAMP SOCKET Unscrew the lamp base holding...
-
Page 8: Two Year Warranty
TWO YEAR WARRANTY Turbo Air warrants to the original purchaser of every new Turbo Air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of two (2) year from the date of original installation or 27 months after shipment date from Turbo Air , whichever occurs first. - Page 9 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
- Page 10 (2) year from the date of original installation or 27 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within two (2) year of original installation or twenty seven (27) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
