Turbo Air Speed up the Pace of Innovation
Glass Door
Merchandiser
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
FEATURE CHART
TGM-22RV
ADVERTISINC
PANEL
SHELF
ADJUSTABLE
FOOT
Castors are applied to TGM-22CRV model.
How to install the castor and castor brake : Refer to page 3.
Before operating this unit, please read these instructions completely.
BOTTOM
DOOR
ASSEMBLY
GRILL
F
R
O
N
T
www.turboairinc.com
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT
EVAPORATOR
FAN MOTOR
BALLAST
FLUORESCENT
LAMP
HINGE*TOP
FLUORESCENT
LAMP (32W)
HANDLE
HINGE*UNDER
CONDENSER
CONDENSER
FAN BLADE
S
D I
CAUTION!
EVAPORATOR
FAN BLADE
EVAPORATOR
DRAIN CAP
DRAIN HOSE
SUCTION PIPE
COVER
COMPRESSOR
DRAIN PAN
CONDENSER
FAN MOTOR
E
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air TGM-22RV
Summary of Contents for Turbo Air TGM-22RV

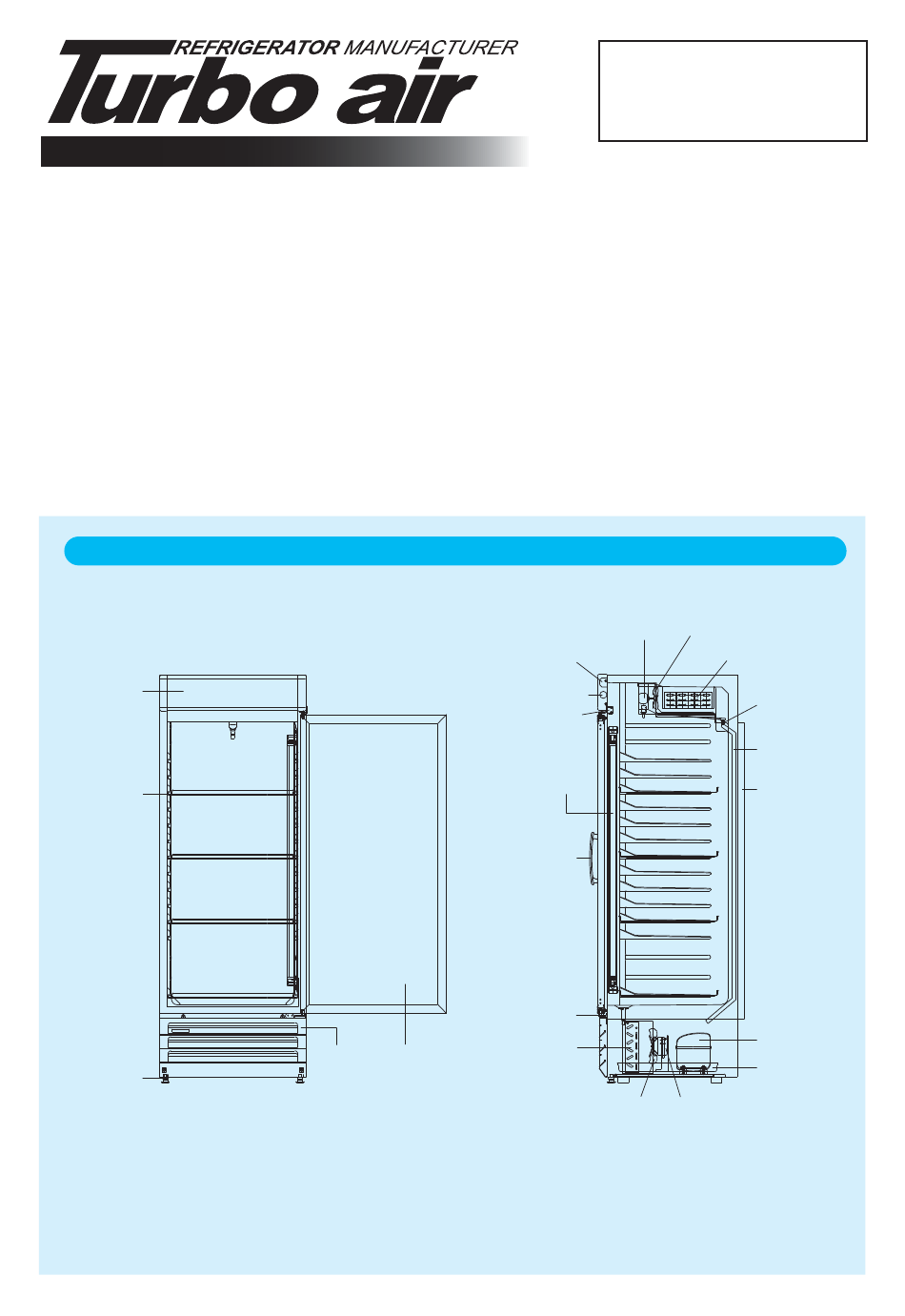

- Page 1 CAUTION! PLEASE KEEP POWER SWITCH ON BEFORE OPERATING THIS EQUIPMENT Turbo Air Speed up the Pace of Innovation Glass Door Merchandiser Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! FEATURE CHART...
-
Page 2: How To Install
HOW TO INSTALL In good ventilation. Place the refrigerator on Put away heat source from • Place the refrigerator in hard and level floor. the refrigerator. good ventilation for a good • Unlevel floor may cause the • High ambient temperature operation. - Page 3 1) Screw the castor (in rear side) and the castor brakes (in front side) by using castor wrench. 2) Use the castor shims to level the cabinet, if necessary, by inserting them to stems of the castors. CASTOR SHIM(4EA) CASTOR(2EA) ROTATION CASTOR (WITH BRAKE)(2EA) Model : TGM-22RV...
- Page 4 CLEANING Cleaning the interior and exterior Check points after cleaning • Wash with warm soapy water and rinse with • Check again the refrigerator for safety. wet cloth. • Do not plug the power cord with wet hands. • Wipe with dry cloth. •...
- Page 5 CAUTION Ventilation Warning - Place the unit in a well ventilated area. - Warranty will be voided if the following is - Keep the cabinet 4” from rear wall. found. • Low voltage to unit. Should be 115V/60Hz. • Power cord should not be more than 7 feet long from plug in connection to compressor.
- Page 6 BEFORE REQUSTING SERVICE Product freezing • Only a small amount of product • Turn temperature control to stored in unit. normal. • Product on top shelf only freezing. • Rearrange product, due to close to fan. • Temperature of refrigerator below •...
- Page 7 HOW TO ADJUST A SHELF POSITION AND REPLACE A LAMP...
-
Page 8: Two Year Warranty
TWO YEAR WARRANTY Turbo air warrants to the original purchaser of every new Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of two (2) year from the date of original installation or 27 months after shipment date from Turbo air , whichever occurs first. - Page 9 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
- Page 10 (2) year from the date of original installation or 27 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within two (2) year of original installation or twenty seven (27) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
