Ecolink ECO-SS-WST-400-WT Manual

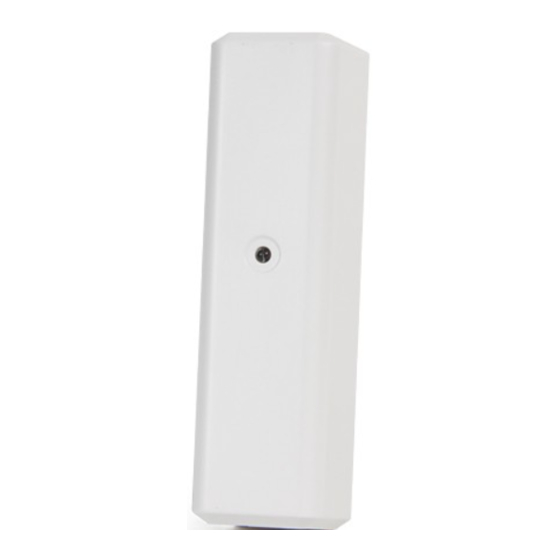

WST-400 Wireless Tilt Sensor
Specifications
Frequency: 433.92MHz
Battery: One 3Vdc lithium CR123A (1550 mAh)
Battery life: 5-8 years
Tilt Sensor
Enrolling
Each product has a label with a unique 6 digit serial number. You will need this serial number to
add this contact to your security system. Refer to your specific control panel or wireless receiver
installation instructions for details on adding a new contact.
Tilt Sensitivity
The tilt sensor will activate when the device is approximately at a 45 degree angle. By moving the
actual ball sensor up or down you can adjust this angle by a few degrees.
Note that this device has a delay of approximately 1 second to eliminate false alarms cause by
wind and vibration commonly subjected to a large garage door.
Mounting
Included with this device are mounting screws and double sided tape. For reliable bonding with
the tape ensure the surface is clean and dry. Apply the tape to the sensor and then to the desired
location. Apply firm pressure for several seconds. It is not recommended to mount the tape at
temperatures below 50°F, although after 24 hours the bond will hold at low temperatures.
Replacing the Battery
When the battery is low a signal will be sent to the control panel. To replace the battery:
1. Remove the screw securing the top cover, then remove the top cover to reveal the battery.
2. Replace with a CR123A battery ensuring the + side of the battery faces as indicated on the
device.
3. Re-attached the cover and replace the screw to secure the cover.
Operating Temperature: -22° to 120°F (-30°to 49°C)
Operating Humidity: 5-95% RH non condensing
Compatible with DSC 433 MHz receivers
Supervisory signal interval: 60 min (approx.)
