Ecolink 4655BC0-R Manual

ECOLINK Door/Window Sensor 4655BC0-R
3rd party certifications: FCC, IC, ETL, ZigBee HA, iControl
INTRODUCTION
Door/Window sensors are designed to secure the perimeter of the residential premise, and provide the ability to add
various automation services. The Door/Window sensor, which consists of a magnet that attaches to a door or window,
will communicate door events to the home security system. When the magnet is moved away from the sensor, a signal
will be sent to the control panel that communicates the changed state to the security system. Signals can also be used
to activate a chime or convenience lighting based on system settings.

SPECIFICATIONS

Frequency: 2.4GHz
Battery Type: CR2450 Battery
Operating Temperature: 0˚ C to 50˚ C (32°F - 122°F)
Storage Temperature: -20˚ C to 60˚ C (-4°F - 140°F)
Battery Life: 5 Years
PAIRING SENSOR
This Door/Window sensor needs to be paired before installation.

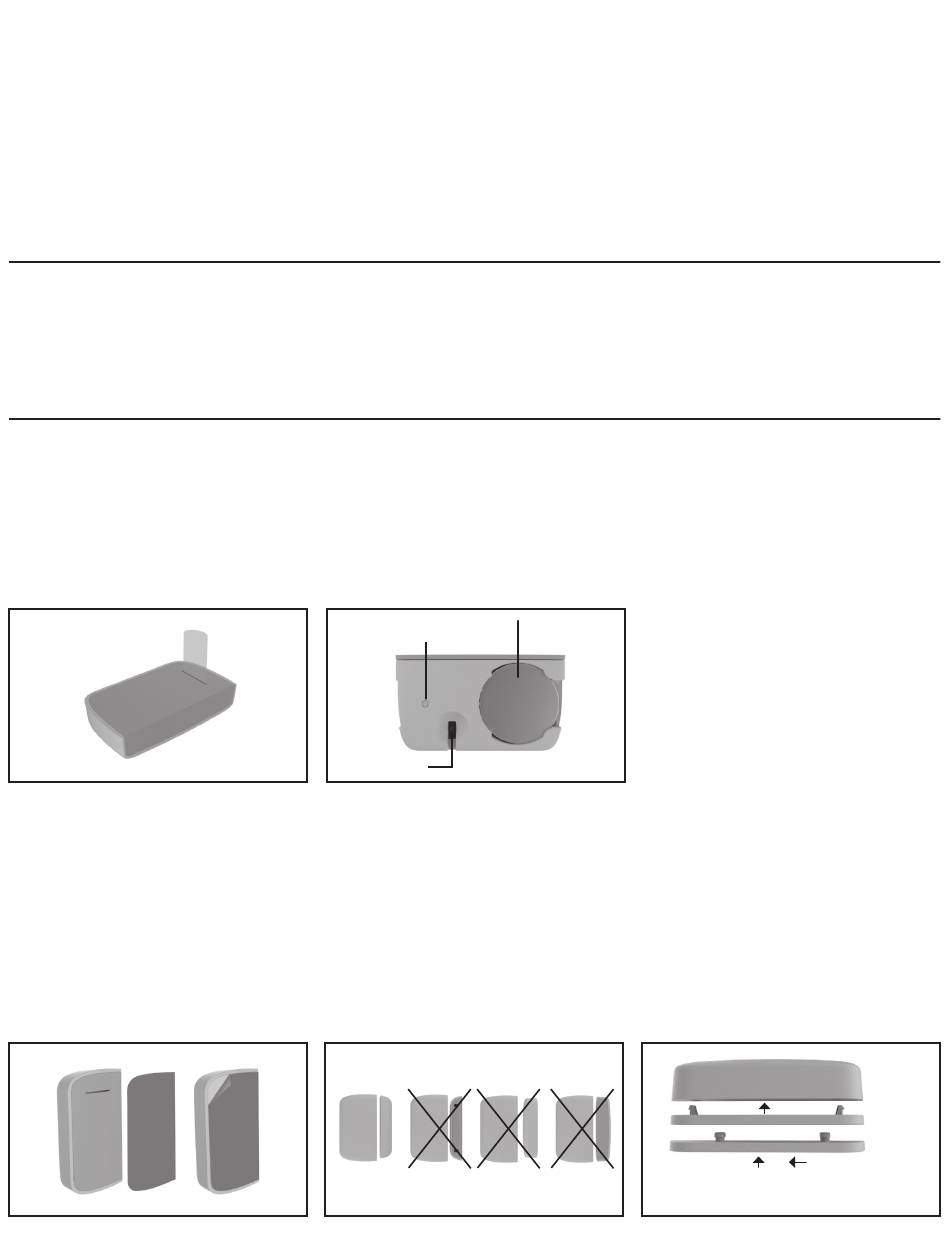

1. Pull the exposed plastic tab from the sensor. (Figure 1)
2. The LED indicator will be lit for two seconds to indicate a successful booting.
3. It will blink three times every 5 seconds while scanning the network.
4. If network is not found after 100 seconds, the sensor will go into sleep mode. To wake the sensor again, you need
to use magnet or tamper (Figure 2) to trigger a paring process, and then sensor will repeat steps from 3 to 4.
INSTALLATION
1. Please make sure that the sensor and magnet is located less than 0.25 inch from each other. For optimal
performance, it is highly recommended to install the Door/Window sensor on the fixed frame and the magnet on
the moving part of the door/window. Place the sensor near the top of the door that close to the opening edge of
the door. This is the mounting location for the sensor.
2. Use the provided double-sided tape on the sensor. Attach the sensor to the door/window frame. Press firmly and
hold in place for a few seconds (Figure 3). Secure it with silicone if needed.
3. Use provided double-sided tape on the magnet. Make sure the alignment of both sensor and magnet are facing
each other (Figure 4). Press firmly and hold in place for a few seconds. Secure it with silicone if needed.
4. Spacers are used to raise the level of the magnet to be level/closer to sensor. Install Magnets as shown in Figure 5.
Green Pairing
LED Indicator
Tamper
Switch/Reset
Figure 1
Figure 3
Dimension: Sensor Device: 59 mm x 29 mm x 11 mm
Magnet: 59 mm x 10 mm x 11 mm (2.32" x 0.39" x 0.43")
Spacer: 59 mm x 10 mm x 2 mm (2.32" x 0.39" x 0.078")
CR2450 Battery
Figure 2
No adhesive tape is needed
between the spacers.
Figure 4
(2.32" x 1.14" x 0.43")
Latch
1. Engage 2. Side
Spacer
Spacer
Figure 5
