Chime+Siren Manual

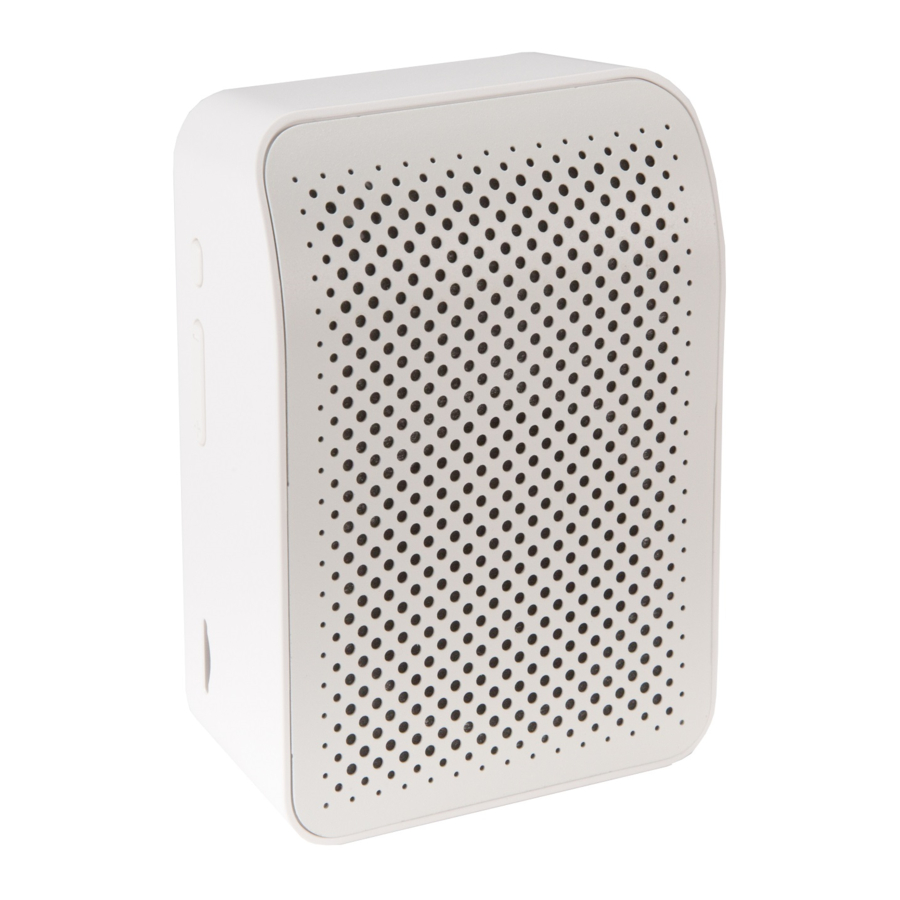

Product Overview
•
Z-Wave+™ enabled device which provides open/closed position status
•
Transmits open/closed status of eight wired inputs
•
Reports tamper condition when cover is open
Product Specifications
•
For indoor use only
908.42, 916 MHz
Operating frequency:
•
Operation range: Up to 100 feet (30.5 meters) line-of-sight
•
•
Operating temperature: 0° – 49°C, 32° – 120°F (ambient temperature)
Line Powered 120v AC 60Hz US
•
•
24-hour battery backup.
Adding via SmartStart
To add via SmartStart, you will need the device's DSK QR-Code which is located on the back
side of the device, on the packaging, and on a leaflet within the packaging. Apply power to the
device by inserting the device into a wall receptacle, and the device will go into SmartStart
inclusion mode. While in this mode, the sensor can be added to a Z-Wave controller that supports SmartStart. Please refer to the inclusion controller's manual
for activating SmartStart.
Page 1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ecolink ISZW7-ECO
Summary of Contents for Ecolink ISZW7-ECO
- Page 1 Chime+Siren Manual Product Overview • Z-Wave+™ enabled device which provides open/closed position status • Transmits open/closed status of eight wired inputs • Reports tamper condition when cover is open Product Specifications • For indoor use only 908.42, 916 MHz Operating frequency: •...
- Page 2 Adding to a Z-Wave Network (Classic Inclusion Method) Make sure the device has power. Press the Add/Test Button which is the smaller of the two buttons, and the device will enter classic inclusion mode which implements both classic inclusion with a Node Information Frame, and Network Wide Inclusion. During Classic Inclusion mode, the Green LED will blink three times every three seconds.
-
Page 3: Battery Backup
Led behavior for Inclusion Blink Pattern Smart Start Started Green LED Three Times Classic Inclusion Started Green LED Three Times every three seconds. Classic Inclusion Timed-Out Green and Red several times. Inclusion Successful (Authenticated S2) Green LED on solid Inclusion Not Successful (Self-Destruct) Red LED on solid Removing a Sensor from a Z-Wave Network To remove the device, place the controller into Remove or “Z-Wave Exclusion”... -
Page 4: Factory Default
Z-Wave Device Class and Command Class Information Manufacturer Specific GENERIC_TYPE_AV_CONTROL_POINT (0x03) SPECIFIC_TYPE_SOUND_SWITCH (0x01) This Z-Wave sensor is a Z-Wave generic Device Class of , and a specific device class of MFG_ID_ECOLINK Manufacturer ID: 0x0007 Product Type: Factory Default 0x3975 Product ID: To restore the device back to factory settings and remove it from any Z-Wave network. - Page 5 Mapping of the Basic Command Class The Chime+Siren has the Basic Command Class mapped such that a Basic Set of 0x00 is always off. A Basic set of 1 is sound 1; 2 is sound 2, 5 is sound 5, etc. Z-Wave Command Classes Finally a Basic Set of 0xFF is mapped to the primary sound which is either a siren or chime sound.
- Page 6 Powerlevel 1 Security 2 1 Support Authenticated & Unauthenticated Supervision 1 Transport Service 2 Version 2 Z-Wave Plus Info 2 Basic 2 Basic Set of 0 to 255 maps to 0: off, and 1-255 enumerated sounds where 255 is a Siren sound. Any Report sent from the Siren is mapped 0: off and 255: Sound playing.
-
Page 7: Notification Types
Configuration Command Class Parameter Name Description Default Min 1 Swap Siren and Chime Sound 0: A Basic Set of 0xFF starts playing Siren. mapping. 1: A Basic Set of 0xFF starts playing Chime. 2 Periodic heartbeats The number of seconds between automatic Heartbeat Notifications. 3600 86400 3 Encapsulate Unsolicited... - Page 8 Backup battery level status 0x10 Back-up battery is low System Software Failure (Manufacturer 0x04 Failure codes-> Proprietary Failure Code Provided) 0x33 Watchdog Reset on the Z-Wave Module 0x55 Watchdog Reset on the STM32 System (0x09) Heartbeat 0x05 This is sent out periodically as configured by the Configuration command class.
- Page 9 doorbell DoorBell Sound error Action Canceled Sound Exit_delay A loud chirp every second for 30 seconds then every half second forever or another 30 seconds. entry_delay A constant tone. away Security panel in away mode. stay_home Security panel in Stay/home mode where the PIRs are not active.
- Page 10 This limited warranty is provided by Ecolink Intelligent Technology (“Ecolink”) to you as the original purchaser of the product. Ecolink warrants this product to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. The determination of whether the product is defective shall be made by Ecolink in its sole discretion with consideration given to the overall performance of the product.
